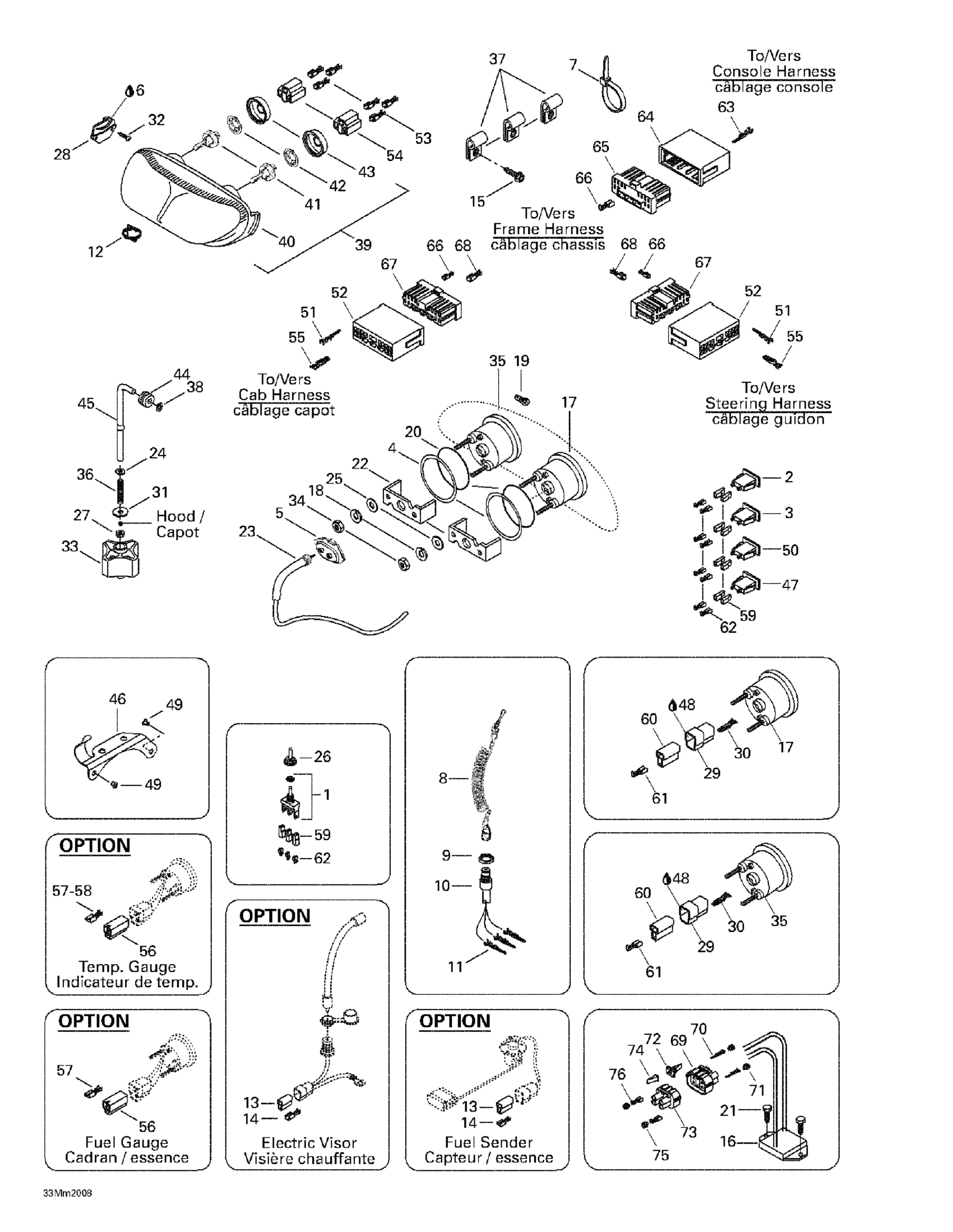

Ski-Doo Summit 600/SB, 2000 Electrical System Diagram
#
2
Pilot Lamp (Red)
410109500
Unavailable
3
Pilot Lamp (Blue)
410109600
Unavailable
4
Washer
517258500
Unavailable
5
Drive Angle
515175400
Unavailable
6
Grease Tube Lmz, 400 G
413707500
Unavailable
7
Tie Wrap 142 mm
293750002
Unavailable
Tie-Rap 173 mm
293750009
Unavailable
8
DESS
515178284
Unavailable
10
DESS SWITCH - Call your local BRP dealership
515175145
Unavailable
12
SPRING - Call your local BRP dealership | Europe
515175324
Unavailable
13
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
14
Female Terminal
561503100
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Voltage Regulator | Includes 48 - 52.
515175491
Unavailable
17
Speedometer, Kmh
515175335
Unavailable
Speedometer, Mph
515175336
Unavailable
18
Lock Washer
414806700
Unavailable
19
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
20
O-Ring
414807100
Unavailable
22
Case Holder
414806500
Unavailable
23
Speedometer Cable
415101500
Unavailable
24
Flat Washer 6 mm
234061410
Unavailable
27
Elastic Stop Nut M6
232561414
Unavailable
28
RH Support
517289300
Unavailable
LH Support
517289400
Unavailable
29
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
30
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
31
Not Available As Spare Part - Friction Washer
Unavailable
32
Headlamp Screw
732601315
Unavailable
33
Handle - Call your local BRP dealership
515175548
Unavailable
34
Nut
414806900
Unavailable
35
Tachometer
515175340
Unavailable
36
SPRING - Call your local BRP dealership
415100600
Unavailable
38
Push Nut
732610072
Unavailable
39
Halogen Headlamp Ass'y | Includes 4 to 7
515176311
Unavailable
40
Not Available As Spare Part - Friction Washer
Unavailable
41
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
43
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
44
Grommet - Call your local BRP dealership
415100800
Unavailable
45
ADJUSTER ROD - Call your local BRP dealership
517295800
Unavailable
46
Cable Support
515175254
Unavailable
47
Pilot Lamp, Dess | 600 SUV
410113300
Unavailable
48
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
49
Pop Rivet 3/16"
390402300
Unavailable
50
Pilot Lamp, Engine Temperature | SUV 600
410109700
Unavailable
53
FEMALE TERMINAL - Call your local BRP dealership
515175320
Unavailable
54
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
55
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
56
Female Housing
409204300
Unavailable
57
Female Terminal
561503100
Unavailable
58
Female Terminal
561503100
Unavailable
60
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
61
Female Terminal
561503100
Unavailable
64
MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership
515175351
Unavailable
65
FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership
515175349
Unavailable
66
Female Terminal
515175231
Unavailable
67
Female Terminal Housing, 13 Circuits
515175350
Unavailable
69
Female Terminal Housing (4 circuits)
409208000
Unavailable
70
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
71
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
72
Female Lock
409013400
Unavailable
73
Male Terminal Housing (4 circuits)
409207700
Unavailable
74
Male Lock
409013100
Unavailable
75
Seal
409208300
Unavailable
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
76
Male Terminal
409013000
Unavailable
Male Terminal
409010900
Unavailable
