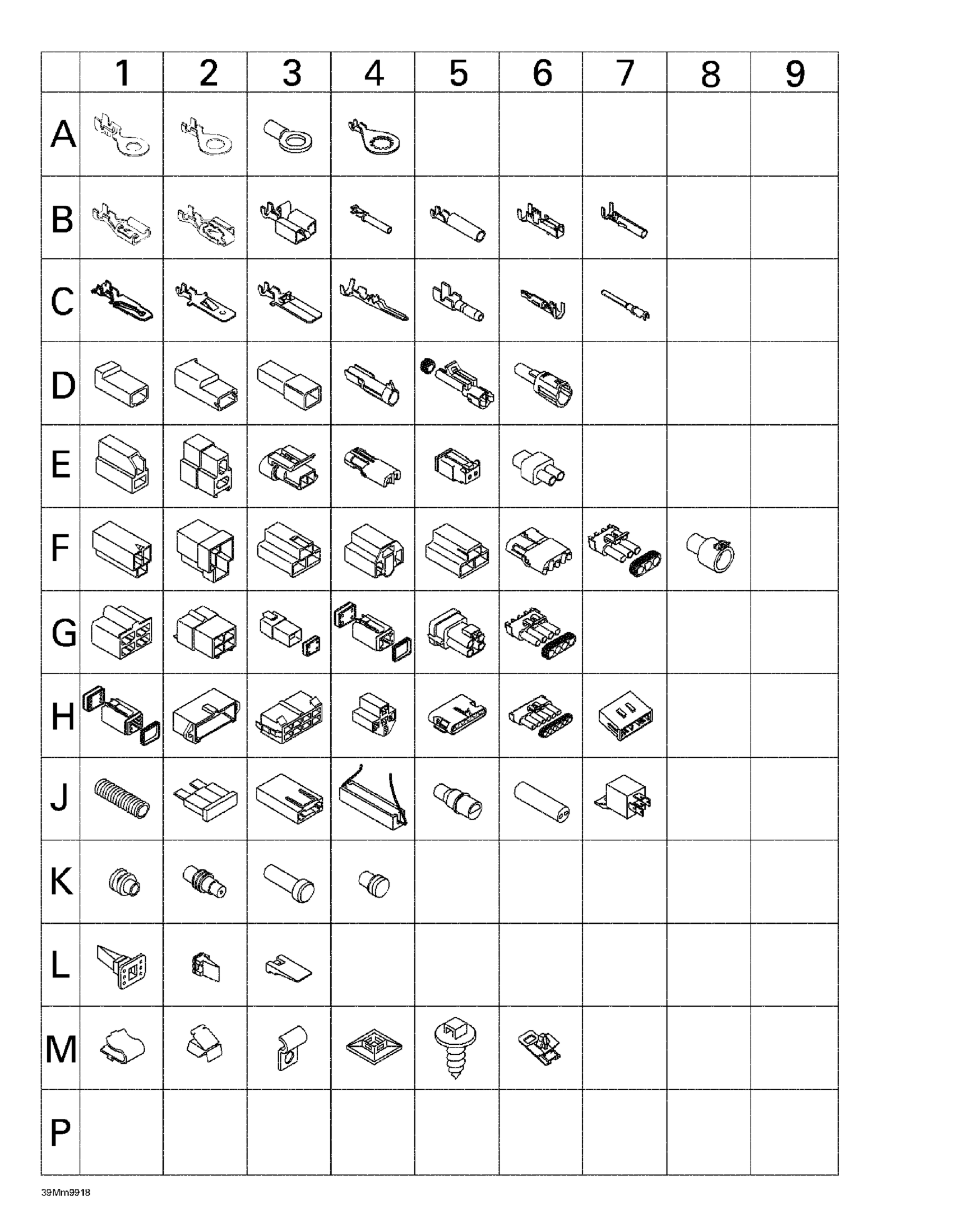

Ski-Doo Summit 600/SB, 2000 Electrical Accessories Diagram

#

Description
Price

A1

Open Barrel

409012500

Unavailable

A1

Open Barrel Terminal

278001392

Unavailable

A2

Open Barrel | (16/14 gauge-5/16" stud)

561502700

Unavailable

A2

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

A3

Open Barrel

278000992

$1.79

A4

Terminal Ring

561502800

Unavailable

B1

Female Terminal

561503100

Unavailable

B1

Female Terminal

561503100

Unavailable

B1

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

B2

FEMALE TERMINAL - Call your local BRP dealership

515175313

Unavailable

B2

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

B2

Female Terminal(Packard)

409011400

$5.11

B2

FEMALE TERMINAL - Call your local BRP dealership

409011500

$5.51

B2

Female Terminal PACKARD

561503200

Unavailable

B2

Female Terminal (16/14 gauge)

561503800

Unavailable

B3

Female Terminal

409010100

$5.46

B3

FEMALE TERMINAL - Call your local BRP dealership

409010600

$5.35

B4

Female Terminal

278000632

Unavailable

B5

Female Terminal | DS 650 X

278001009

Unavailable

B6

Female Terminal

278001114

$2.55

B6

Female Terminal

278001014

Unavailable

B7

Female Terminal

278000223

Unavailable

C1

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

C1

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

C1

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

C1

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

C2

Male Terminal

409201000

Unavailable

C3

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82

C3

Male Terminal

409010900

Unavailable

C4

Male Terminal

409011300

$5.78

C4

Male Terminal

515175232

$1.49

C4

Male terminal

515175234

Unavailable

C5

Male Terminal

278000230

Unavailable

C6

Male Terminal | XT Models

278000222

$2.55

C7

Male Terminal

278000631

$4.12

D1

Female Terminal Housing (1 circuit)

409204800

Unavailable

D2

Female Terminal Housing, 1 Circuit

409010400

$7.48

D3

Male Connector Housing (Single)

409204700

Unavailable

D4

Female Housing, 1 Circuit

278000161

Unavailable

D5

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

D6

Male Connector Housing (1 Circuit)

409208800

Unavailable

E1

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

E2

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

E3

Male Connector, 2 Circuits

278001113

$12.65

E3

Male Connector, 2 Circuits

278000220

$11.02

E4

Female Housing, 2 Circuits

278000217

Unavailable

E5

Female Connector, 2 Circuits

409207300

$9.60

E6

Female Connector Housing (2 Circuits)

409206500

Unavailable

F1

Female Housing

409204300

Unavailable

F2

FEMALE HOUSING - Call your local BRP dealership

409204200

$3.82

F3

Female Terminal Housing (3 circuits)

409008500

Unavailable

F4

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

F5

Male Terminal Housing (3 circuits)

409008600

Unavailable

F6

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

F6

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

F7

Male Housing, 3 Circuits

278000273

Unavailable

F8

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

G1

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

G2

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

G3

Female Housing, 4 Circuits

278000635

$14.02

G4

Male Connector, 4 Circuits | CE

278000739

$14.92

G5

Male Terminal Housing (4 circuits)

409207700

Unavailable

G6

Male Housing, 4 Circuits

278000395

Unavailable

H1

Male Terminal Housing, 6 Circuits

710001539

$15.57

H1

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

H2

Male Connector Housing (8)

572151500

Unavailable

H3

Female Connector Housing (8)

572151200

Unavailable

H4

Female Housing, 5 Circuits

409209900

$8.98

H5

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

H6

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

H7

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

J1

Was 409901600 Tubing 19mm

219704398

Unavailable

J1

Was 409901700 Tubing (9 mm)

219704399

Unavailable

J1

Was 409901800 Tubing (13 mm)

219704400

Unavailable

J1

Tubing 10 MM 1000MM Long

219704407

Unavailable

J1

Tubing | Formula S.

410112800

Unavailable

J1

Tubing (Meter)

410112900

Unavailable

J1

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

J1

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

J2

Fuse, 30 Amperes

410917200

$3.22

J3

Fuse Holder

409004000

Unavailable

J4

Resistance

515175241

Unavailable

J4

Resistance

515175241

Unavailable

J5

Insulated Sheath

278001008

Unavailable

J6

Insulated Sheath

278001007

Unavailable

J7

Relay | DS 650 X

710010053

Unavailable

K1

SEAL - Call your local BRP dealership

409208500

Unavailable

K1

Seal

409012300

Unavailable

K1

Wire Seal

278000218

Unavailable

K1

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

K1

Seal

409208300

Unavailable

K1

Wire Seal

278001013

Unavailable

K2

Wire Seal

278000216

Unavailable

K3

Sealing Cap

293000052

Unavailable

K4

SEAL - Call your local BRP dealership

409013900

$9.20

L1

Female Wedge, 4 Circuits

278000636

$4.12

L1

Female Lock, 6 Circuits

278000735

$3.02

L2

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

L2

Male Lock, 4 Circuits | CE

278000738

$2.91

L3

Male Lock

409013100

Unavailable

L3

Male Lock, 3 Circuits

409207600

$3.02

M1

CLIP - Call your local BRP dealership | Europe Models

409205600

$3.05

M2

Clip

414227300

$1.45

M3

CLIP - Call your local BRP dealership

415018200

$2.89

M4

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

M5

Mount Dart

293730040

$0.86

M6

Housing Support

515175283

$8.43
