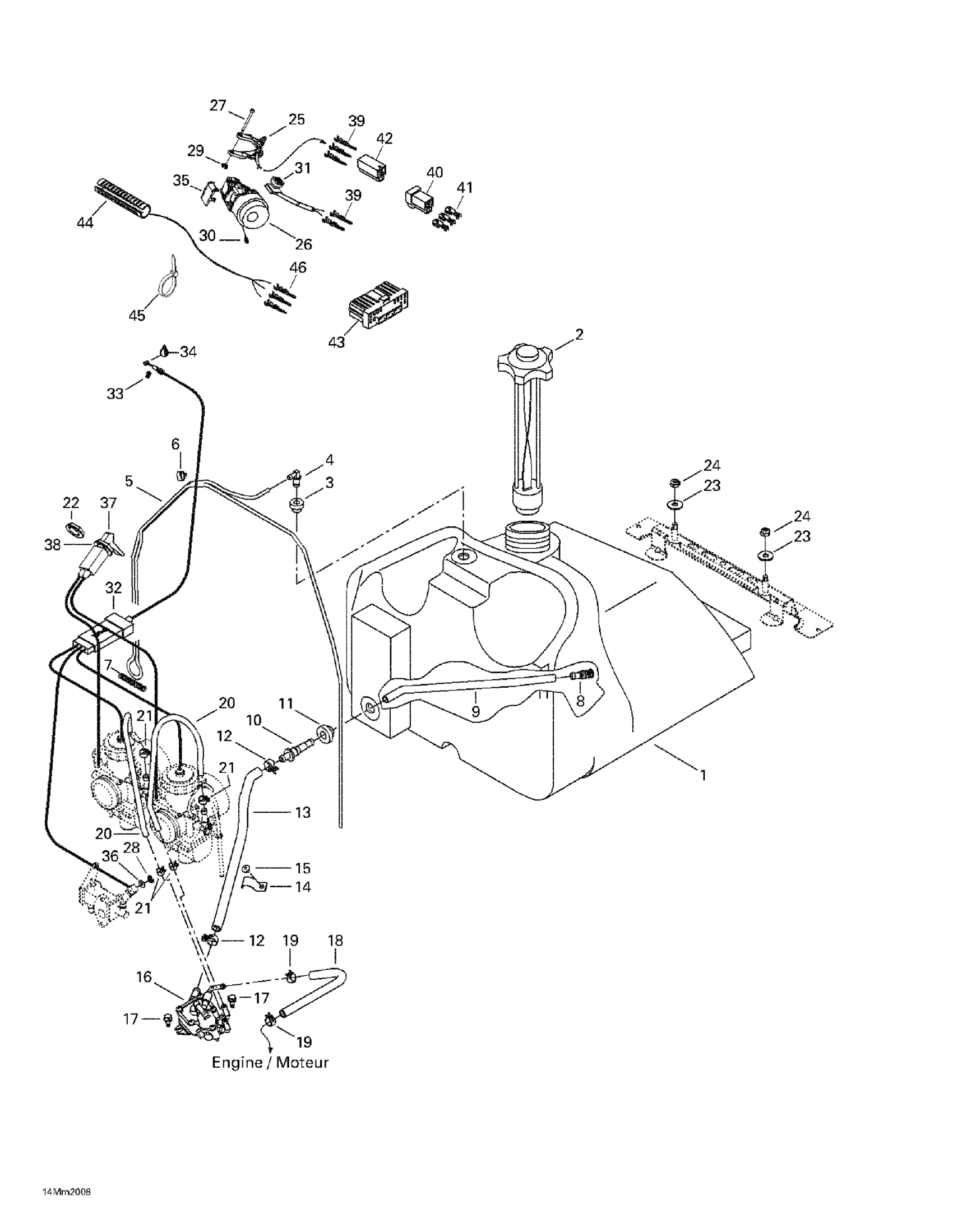

Ski-Doo Summit 600/SB, 2000 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513032987

Unavailable

2

Fuel Tank Cap | Sport / Sport GT

513033020

$34.30

3

Grommet

513032908

$8.48

4

Male Connector

414814100

$2.12

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

9

Hose

415005700

$5.47

10

Male Connector

414872700

Unavailable

11

Grommet | Europe

707800347

$8.70

12

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

13

Formed Hose

513032903

$27.58

14

CLIP - Call your local BRP dealership

415018200

Unavailable

15

Pop Rivet 3/16"

390406500

$0.81

16

Fuel Pump | MX-Z 500.

403901800

Unavailable

17

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

18

Hose

219704549

$46.24

19

Spring Clamp

414415200

$0.81

20

Tube

415117800

Unavailable

21

Spring Clamp

414420700

$0.66

22

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

23

Flat Washer 8 mm

234082410

$1.27

24

Hex. Elastic Stop Nut M8

232581414

$0.54

25

Handle Ass'y 40 mm

572101900

Unavailable

26

Throttle Handle Housing

572100900

Unavailable

27

Lever Pin

414438700

$10.81

28

Circlip

414753500

$0.67

29

Circlip | Model-RS

414439000

$4.01

30

Socket Set Screw M8 X 10

414440800

$3.88

31

Kill Switch

515175410

Unavailable

32

Throttle Cable

512058902

Unavailable

33

Circlip

414274500

$0.85

34

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

35

Switch Cover

572100901

$14.10

36

Flat Washer 8 mm, Nylon

234081100

$1.15

37

Choke Cable | Includes 12 - 13. Formula Deluxe 500.

512059203

Unavailable

38

Lock Washer, Interior Teeth

394103300

Unavailable

39

Male Terminal

515175232

$1.45

40

Female Housing, 3 Circuits

515175495

$14.90

41

Female Terminal

515175231

$4.00

42

Male Housing, 3 Circuits

515175494

$14.90

43

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

44

Heating Grip

515175573

$57.43

45

Tie Wrap 94 mm | 4X4

293750001

$0.96

46

Male Terminal

515175232

$1.45
