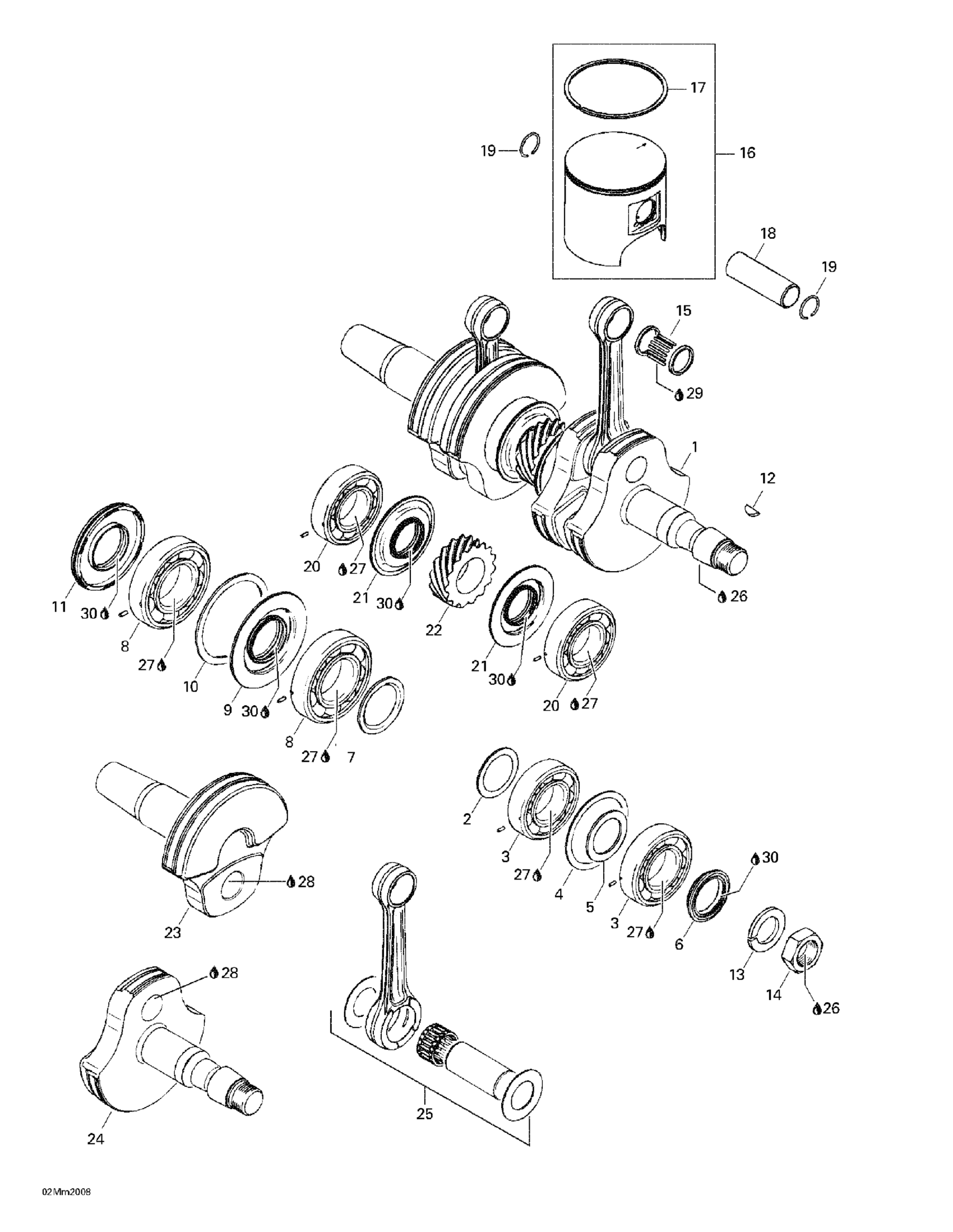

Ski-Doo Summit 600/SB, 2000 Crankshaft And Pistons Diagram
#
Description
Price
1
REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership | Grand Touring 600. This part replaces 420888751.
421000563
Unavailable
1
REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership | Grand Touring 600. This part replaces 420888751.
421000563
Unavailable
2
DISTANCE RING - Call your local BRP dealership
420827445
Unavailable
4
RETAINING DISK - Call your local BRP dealership
420827050
Unavailable
5
ADJUSTMENT WASHER - Call your local BRP dealership
420427684
Unavailable
7
DISTANCE RING - Call your local BRP dealership
420827760
Unavailable
8
Ball Bearing 6207 | With drive pin
420832575
Unavailable
9
Oil Seal
420931455
Unavailable
10
Retaining Disk
420927710
Unavailable
11
Oil Seal This part replaces 290831952.
420831952
Unavailable
12
Woodruff Key
420246015
Unavailable
13
Lock Washer, 22 mm
420945759
Unavailable
14
Hex. Nut, M22 X 1.5
420842239
Unavailable
15
Needle Bearing
420832445
Unavailable
16
Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14
420889173
Unavailable
17
Semi-Trapez Ring, Standard
420815155
Unavailable
Semi-Trapez Ring, 1st
420815156
Unavailable
18
Piston Pin
420916412
Unavailable
19
PISTON CIRCLIP - Call your local BRP dealership | Formula Deluxe 600.
420845102
Unavailable
21
Oil Seal
420831940
Unavailable
23
CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.
420818665
Unavailable
24
Crankshaft This part replaces 420818693.
420818697
Unavailable
27
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
28
Sealant Loctite 648
219703000
Unavailable
30
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
