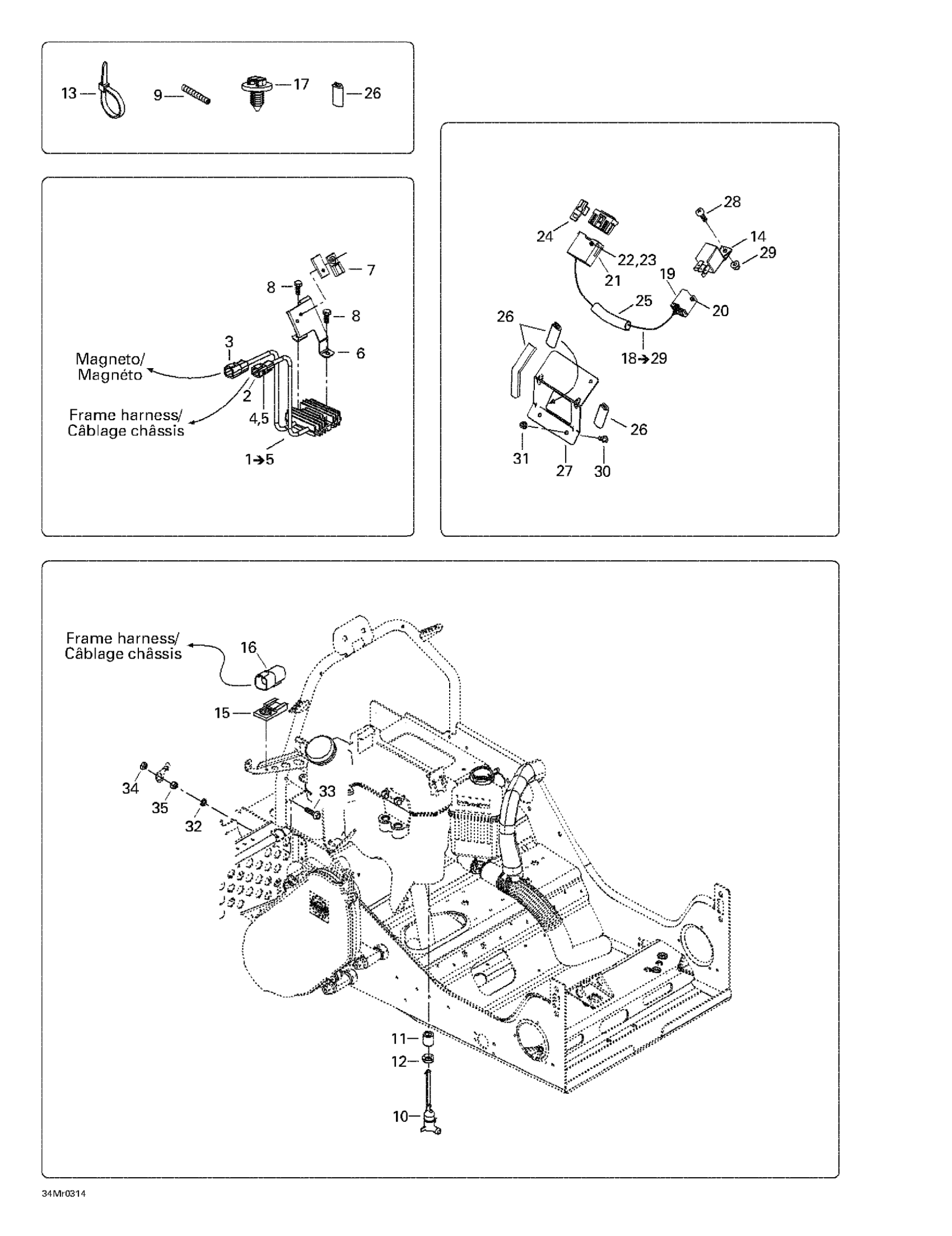

Ski-Doo Summit 600 HO/700/800 HO, 2003 Battery Diagram

#

Description
Price

1

Voltage Regulator

515175968

$226.09

2

Mâle Terminal Housing, 2 Circuits

278001674

$29.07

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Male Terminal

515175568

$7.25

5

Female Lock, 2 Circuits

278001671

$3.12

6

Housing Support

515175842

Unavailable

7

Clip

270000141

$9.57

8

Taptite Screw

290841543

Unavailable

9

Was 409901800 Tubing (13 mm)

219704400

$10.79

Tubing 10 MM 1000MM Long

219704407

$2.52

10

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

11

Float

414681900

Unavailable

12

Contact Plate

414681901

Unavailable

13

Tie Wrap 142 mm

293750002

$1.01

Tie Wrap 368 mm

293750008

$0.97

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 173 mm

293750009

$0.97

14

Relay | DS 650 X

710010053

Unavailable

15

Clip

270000141

$9.57

16

Male Terminal Housing, 6 Circuits

515175668

$13.60

17

Mount Dart

293730040

$0.99

18

Configuration Harness | Includes items 25 to 32 / Manual starting

515175722

Unavailable

19

Female Housing, 5 Circuits

409209900

$8.72

20

Female Terminal

561503100

Unavailable

21

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

22

Male Terminal

515175232

$1.45

23

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

24

Housing Support

515175283

$8.18

25

Was 409901800 Tubing (13 mm)

219704400

$10.79

26

Was 271000110 Protection Trim

219704353

$14.58

27

Fuse Holder

515175907

Unavailable

28

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

29

Hex. Flange Elastic Nut M5

233251414

$1.91

30

Hex. Screw M5 X 14

207151444

$0.82

31

Hex. Flange Elastic Nut M5

233251414

$1.91

32

Lock Washer Serrated M6

250200041

$1.06

33

Hex. Flange Screw M6 X 20

207662044

$1.91

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

35

Hex. Nut M6

232061414

$0.51
