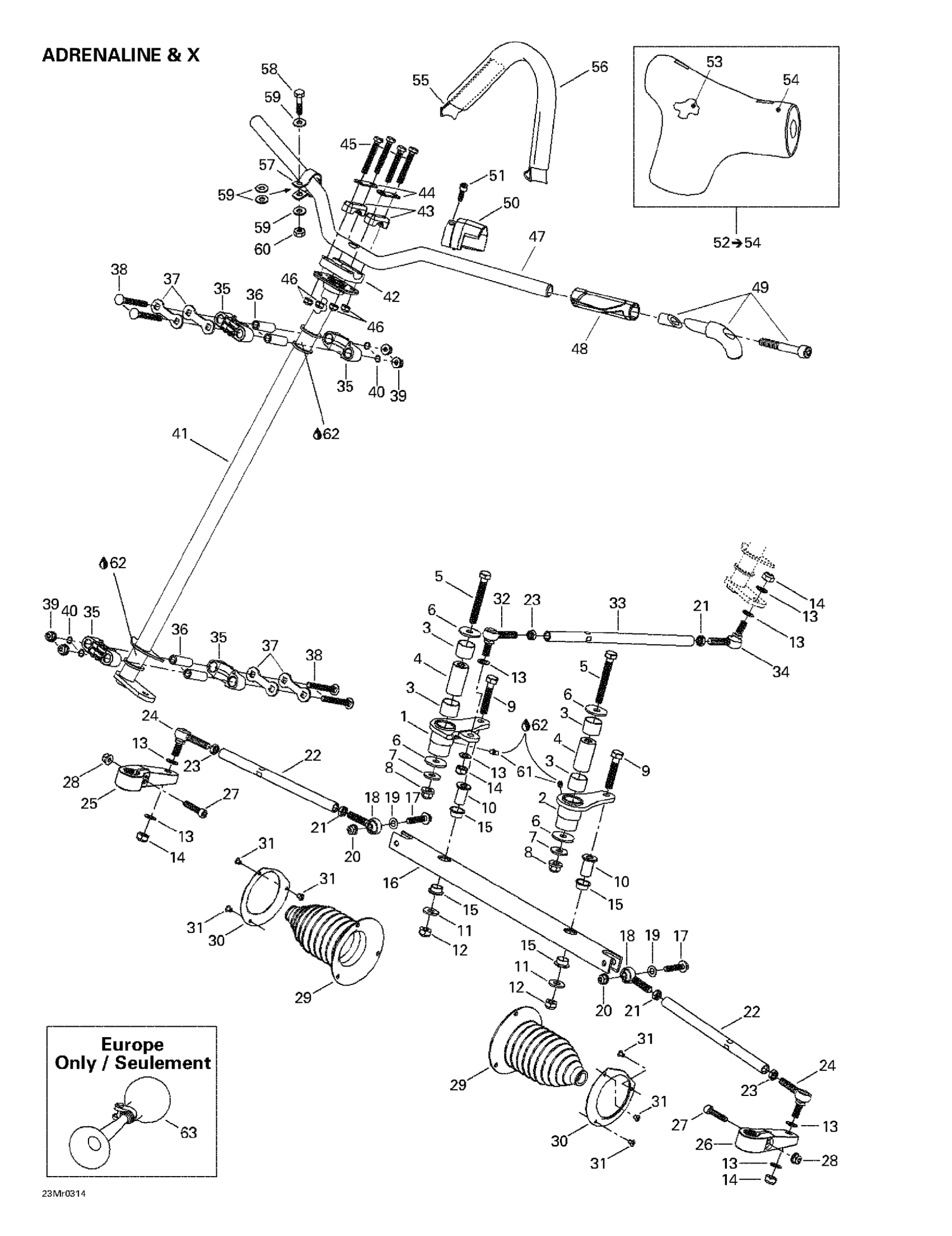

Ski-Doo Summit 600 HO/700/800 HO, 2003 Steering System (Adrenaline And X) Diagram

#

Description
Price

1

RH Swivel Arm

506151506

Unavailable

2

LH SWIVEL ARM - Call your local BRP dealership

506151623

Unavailable

3

BUSHING SWIVEL - Call your local BRP dealership

506149900

Unavailable

4

PIVOT SWIVEL - Call your local BRP dealership

506150100

Unavailable

5

Hex. Screw M10 X 80

207008086

Unavailable

6

Washer 10 mm

506150000

Unavailable

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Flange Nut M10

732610084

Unavailable

9

Hex. Screw M10 X 55

207005544

$1.85

10

BAR PIVOT - Call your local BRP dealership

506147300

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.68

13

Washer

503175800

$3.26

14

Elastic Flange Nut M10

232501416

Unavailable

15

Swivel Bushing

503191555

Unavailable

16

Bar-Swivel

506147000

Unavailable

17

Hex. Flange Screw M8 X 40

207684044

Unavailable

18

LH BALL JOINT - Call your local BRP dealership

506151496

Unavailable

19

Washer

506151252

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

Unavailable

21

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

22

Tie Rod

506151376

Unavailable

23

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

24

Ball Joint

506151491

Unavailable

25

RH steering arm

506145451

Unavailable

26

LH steering arm

506145452

Unavailable

27

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

28

Hex. Flange Elastic Nut M8

233281414

Unavailable

29

TIE-ROD CAP - Call your local BRP dealership

570070500

Unavailable

30

RETAINER RING - Call your local BRP dealership

506151100

Unavailable

31

Pop Rivet 3/16"

390402300

Unavailable

32

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

33

TIE-ROD - Call your local BRP dealership

506151375

Unavailable

34

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

35

Housing Half

506150400

Unavailable

36

Housing Bushing

506150500

Unavailable

37

Stopper Plate

506150600

Unavailable

38

Carriage Bolt M8 X 70

207787044

Unavailable

39

Hex. Flange Elastic Nut M8

233281414

Unavailable

40

O-RING - Call your local BRP dealership

506151140

Unavailable

41

Main Tube

506151222

Unavailable

42

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

43

Steering Support

709400919

Unavailable

44

Stiffner

709400509

Unavailable

45

Hex. Screw M8 X 55

207085544

$1.62

46

Hex. Elastic Stop Nut M8

232581414

Unavailable

47

Handle bar

506151682

Unavailable

48

Grip

506151715

Unavailable

49

Black Hook

506151596

Unavailable

50

ADAPTATOR - Call your local BRP dealership

506151566

Unavailable

51

SOCKET SET SCREW M8 X 12 - Call your local BRP dealership

206581244

Unavailable

52

Steering pad | Includes 52 - 54.

506151562

Unavailable

53

Foam

506151641

Unavailable

54

Cover

506151563

Unavailable

55

Strap Ass'y | Package XMR

506152115

$43.05

56

Strap Ass'y | Package XMR

506152115

$43.05

57

Support Plate

506148200

Unavailable

58

Hex. Screw M6 X 25

207162544

Unavailable

59

Flat Washer 6 mm

234061410

Unavailable

60

Elastic Stop Nut M6

232561414

Unavailable

61

Grease Fitting

408200700

Unavailable

62

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

63

Horn

549011291

$35.35
