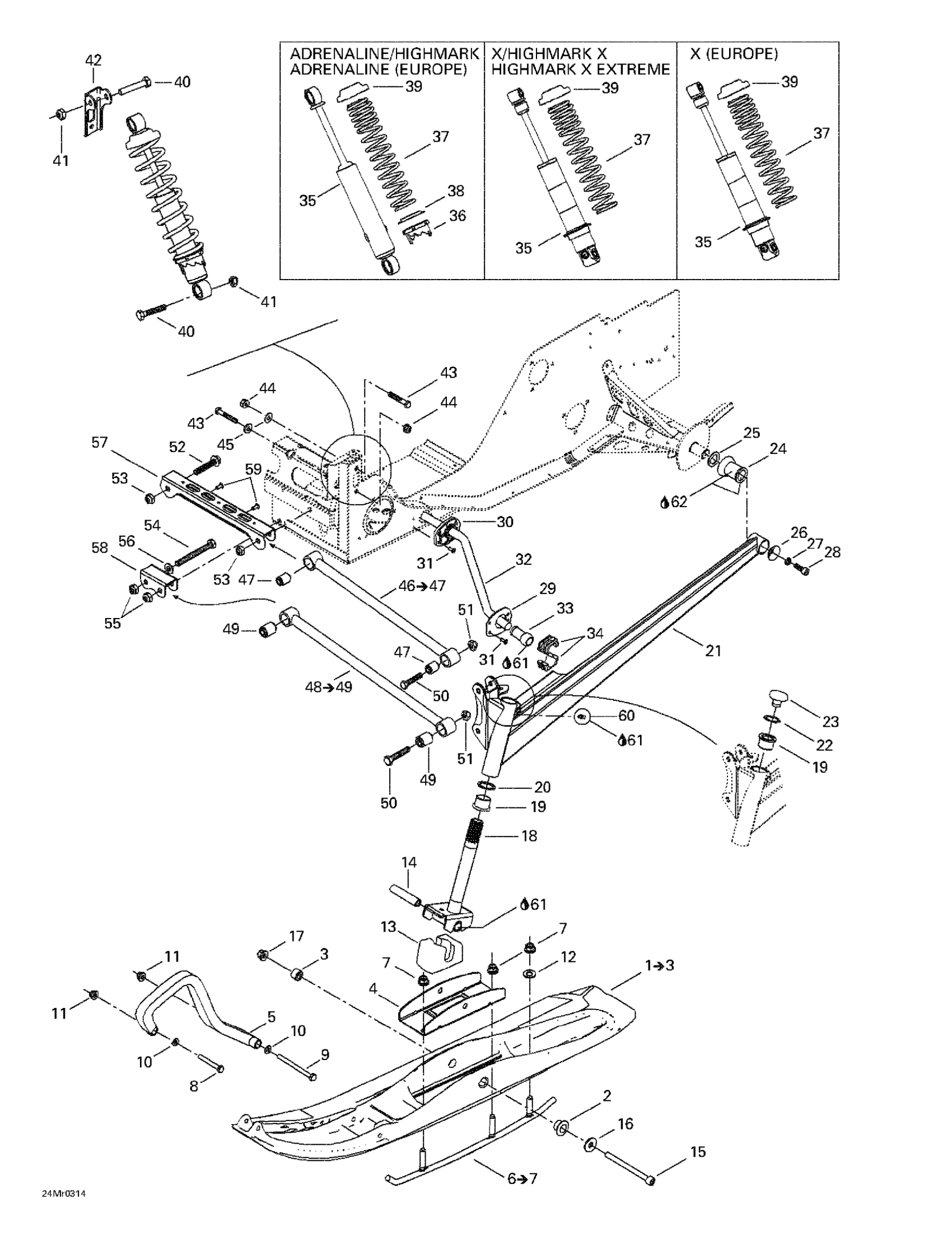

Ski-Doo Summit 600 HO/700/800 HO, 2003 Front Suspension And Ski Diagram

#

Description
Price

1

RH Ski Ass'y | INCLUDES 1 TO 3 This part replaces 505071046.

505071391

Unavailable

LH Ski, Black Ass'y | INCLUDES 1 TO 3

505071047

Unavailable

2

CUSHION - Call your local BRP dealership

505070743

Unavailable

3

CUSHION - Call your local BRP dealership

505070823

Unavailable

4

Ski Renforcement

505070745

Unavailable

5

Yellow Handle | Model-MX-Z TNT

505070917

Unavailable

Black, Handle

505070963

Unavailable

6

Lisse 6 *6 Carbide | Includes 8 to 9 This part replaces 860504800.

860200582

Unavailable

7

Hex. Flange Elastic Nut M10

233201414

$1.26

8

Hex. Screw M8 X 50

207085044

Unavailable

9

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

10

Flat Washer 8 mm

234081410

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

Unavailable

12

Flat Washer

399910100

Unavailable

13

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

14

Spacer

506133300

Unavailable

15

Socket Head Screw M10 X 125

250000069

Unavailable

16

Flat Washer 10 mm This part replaces M20011.

234002410

Unavailable

17

Flange Nut M10

732610084

Unavailable

18

Ski Leg

505070672

Unavailable

19

Cushion

505070003

Unavailable

20

WASHER - Call your local BRP dealership

505070004

Unavailable

21

RH ARM - Call your local BRP dealership

505070645

Unavailable

LH ARM - Call your local BRP dealership

505070646

Unavailable

22

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

23

Cap

572091300

$8.97

24

DAMPER - Call your local BRP dealership

570062200

Unavailable

25

WASHER - Call your local BRP dealership

503146700

$4.42

26

CUP - Call your local BRP dealership

506079600

Unavailable

27

Lock Washer 8 mm

234181401

Unavailable

28

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

Unavailable

29

Plate

505070542

Unavailable

30

Bushing | 550F

505070191

Unavailable

31

Pop Rivet 3/16”

390407200

$0.66

32

Stabilisator | RENEGADE MX Z 600. MX Z 800.

505070774

Unavailable

33

Ball Joint | 550F

505070816

Unavailable

34

SLIDING BLOCK - Call your local BRP dealership

505070817

Unavailable

35

Front shock | ADRENALINE. ADRENALINE (EUROPE) Summit 600 HO. HIGHMARK Summit 700. Summit 800 HO.

505070752

Unavailable

Front shock | X (EUROPE) Summit 800 HO.

505070894

Unavailable

Front shock | X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.

505070753

Unavailable

36

Adjustment Cam

505073625

Unavailable

37

Spring

505070762

Unavailable

Spring | X, Highmark X, HM Xtreme

505070760

Unavailable

38

Spring Guide

503187500

Unavailable

39

Spring Stopper

706200881

$10.30

40

Hex. Screw M10 X 55

207005544

$1.85

41

Elastic Locking Nut M10 X 1.5

233601416

$1.68

42

RH SHOCK BRACKET - Call your local BRP dealership

518317518

$9.20

LH Shock Bracket

518317519

Unavailable

43

Hex. Screw M8 X 50

207085044

Unavailable

44

Hex. Flange Elastic Nut M8

233281414

Unavailable

45

Washer

506151245

Unavailable

46

UPPER ARM ASSY - Call your local BRP dealership | INCLUDES 41 TO 42

505070746

Unavailable

47

Bushing

505070025

Unavailable

48

LOWER ARM ASSY - Call your local BRP dealership | INCLUDES 43 TO 44

505070748

Unavailable

49

Bushing

505070025

Unavailable

50

Hex. Screw M10 X 55

207005544

$1.85

51

Elastic Locking Nut M10 X 1.5

233601416

$1.68

52

Hex. Flange Screw M10 X 55

207605544

Unavailable

53

Elastic Locking Nut M10 X 1.5

233601416

$1.68

54

Hex. Screw M10 X 95

207009544

Unavailable

55

Elastic Locking Nut M10 X 1.5

233601416

$1.68

56

Flat Washer 10 mm

234001410

Unavailable

57

Upper Arm Bracket

505070010

Unavailable

58

Lower Arm Bracket

505070011

Unavailable

59

Pop Rivet 3/16"

390402200

$0.26

60

Grease Fitting

408200700

Unavailable

61

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

62

Grease, Super Lube

293550030

Unavailable
