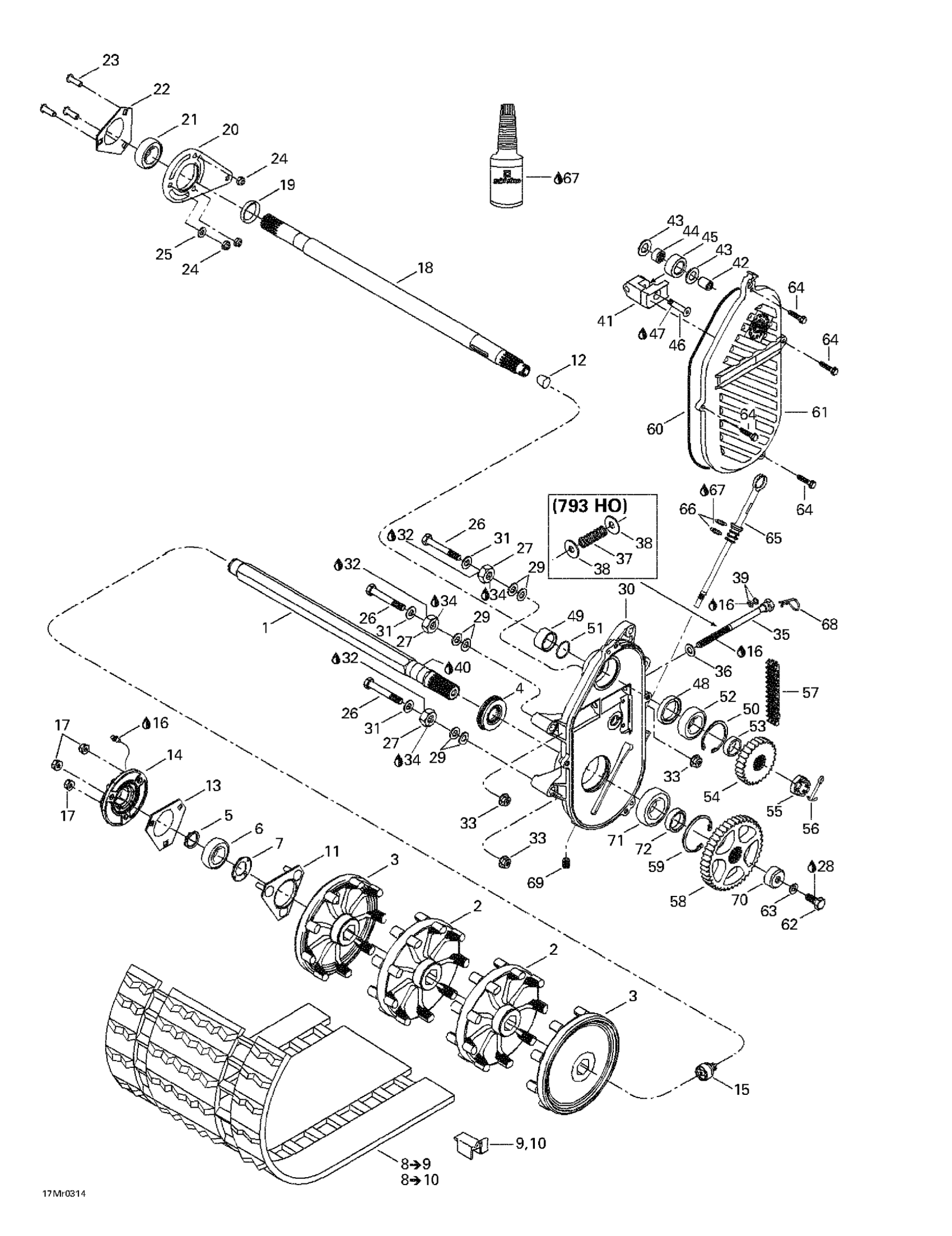

Ski-Doo Summit 600 HO/700/800 HO, 2003 Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

$256.89

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

HALF SPROCKET, 9 TEETH - Call your local BRP dealership

504151782

Unavailable

4

Oil Seal Ass'y

504151918

Unavailable

5

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

6

Ball Bearing

293350060

Unavailable

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Track ass'y (15 x 144 x 2) | Includes 8 - 10. TRACK 144 ADRENALINE 600 HO Summit 600 HO. TRACK 144 ADRENALINE & X 800 HO Summit 800 HO.

504152188

Unavailable

8

Track ass'y (15 x 144 x 2) | Includes 8 - 9. FINGER TRACK 144 ADRERNALINE 600 HO Summit 600 HO. FINGER TRACK 144 ADRENALINE & X 700 Summit 700.

504152110

Unavailable

8

Track ass'y (15 x 144 x 2) | Includes 8 - 9. TRACK 144 ADRERNALINE & X 700 Summit 700.

504151973

Unavailable

8

Track ass'y (15 x 144 x 2) | Includes 8 - 10. FINGER TRACK 144 ADRENALINE & X 800 HO Summit 800 HO.

504152179

Unavailable

8

Track ass'y (15 x 151 x 2) | Includes 8 - 9. FINGER TRACK 151 HIGHMARK 700 Summit 700.

504152111

Unavailable

8

Track ass'y (15 x 151 x 2) | Includes 8 - 10. FINGER TRACK 151 HIGHMARK 800 HO. FINGER TRACK 151 HIGHMARK X 800 HO. FINGER TRACK 151 HIGHMARK X EXTREME 800 HO Summit 800 HO.

504152181

Unavailable

8

Track ass'y (15 x 159 x FC) | Includes 8 - 10. TRACK 159 HIGHMARK Summit 700. TRACK 159 HIGHMARK X. TRACK 159 HIGHMARK X EXTREME Summit 800 HO.

504152189

Unavailable

8

Track ass'y (15 x 151 x FC) | Includes 8 - 10. TRACK 151 HIGHMARK Summit 700. TRACK 151 HIGHMARK X. TRACK 151 HIGHMARK X EXTREME Summit 800 HO.

504152190

Unavailable

9

Track Guide | Track Width 16''

415129528

$3.12

10

Cleat

504152651

Unavailable

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

CORK - Call your local BRP dealership

414784800

$2.28

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Flange, Speedo

504152173

Unavailable

15

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

16

Synthetic grease

413706000

Unavailable

17

Hex. Flange Elastic Nut M8

233281414

Unavailable

18

COUNTER SHAFT - Call your local BRP dealership

501026300

$428.43

19

Spacer

504149100

$11.20

20

Casting Spacer

80044200

Unavailable

21

Ball Bearing Kit This part replaces 504152535.

415129555

Unavailable

22

FLANGE - Call your local BRP dealership

501025000

Unavailable

23

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205482546

Unavailable

24

Hex. Elastic Stop Nut M8

232581414

Unavailable

25

Flat Washer 8 mm

234081410

Unavailable

26

HEX. SCREW M10 X 80 - Call your local BRP dealership

207108044

Unavailable

27

Spacer

504083800

Unavailable

28

Loctite 271, 10 ml

293800005

Unavailable

29

WASHER - Call your local BRP dealership

504073700

Unavailable

30

Chaincase

504152062

Unavailable

CHAINCASE - Call your local BRP dealership This part replaces 504152064.

504153562

Unavailable

31

Washer

503183800

$3.20

32

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

33

Hex. Flange Elastic Nut M10

233201414

$1.26

34

Loctite 243, 10 ml

293800060

$20.77

35

Adjustment Screw

504151946

Unavailable

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

36

Flat Washer 10 mm

234001410

Unavailable

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

37

SPRING - Call your local BRP dealership

504151945

Unavailable

38

HARD WASHER - Call your local BRP dealership | LTD

503125900

$2.48

39

O-Ring

414484400

$7.31

O-RING - Call your local BRP dealership

504151954

Unavailable

40

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

41

Chain Tensioner

504151940

Unavailable

42

SPACER - Call your local BRP dealership

504080200

Unavailable

43

WASHER - Call your local BRP dealership

504080300

Unavailable

44

NEEDLE BEARING - Call your local BRP dealership

405403000

$22.28

45

ROLLER - Call your local BRP dealership

414531300

Unavailable

46

SCREW - Call your local BRP dealership

732601144

Unavailable

47

Loctite 271, 10 ml

293800005

Unavailable

48

Oil Seal

293200158

Unavailable

49

SPACER - Call your local BRP dealership

507031500

Unavailable

50

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

51

O-RING - Call your local BRP dealership

414876700

Unavailable

52

Ball Bearing

293350115

Unavailable

53

SHIM - Call your local BRP dealership

504147200

Unavailable

54

Sprocket, 21 Teeth

504096200

$42.28

Sprocket, 19 Teeth

504153783

Unavailable

Sprocket, 21 Teeth

504096200

$42.28

Sprocket 23 Teeth

504153911

Unavailable

55

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

56

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

57

DRIVE CHAIN, 72 LINKS - Call your local BRP dealership

504151830

Unavailable

Drive Chain, 74 Links | Except Europe

504151857

Unavailable

58

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

59

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

60

O-Ring

415046400

$24.58

61

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

62

Hex. Screw M10 X 25

207102544

Unavailable

63

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

64

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

65

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

66

O-RING - Call your local BRP dealership

414969400

Unavailable

67

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

68

Hair Pin

414575600

Unavailable

69

Plug 1/8”-27

504151921

Unavailable

70

CAP - Call your local BRP dealership

504152104

Unavailable

71

Ball Bearing

504152005

Unavailable

72

Shim

504152058

Unavailable
