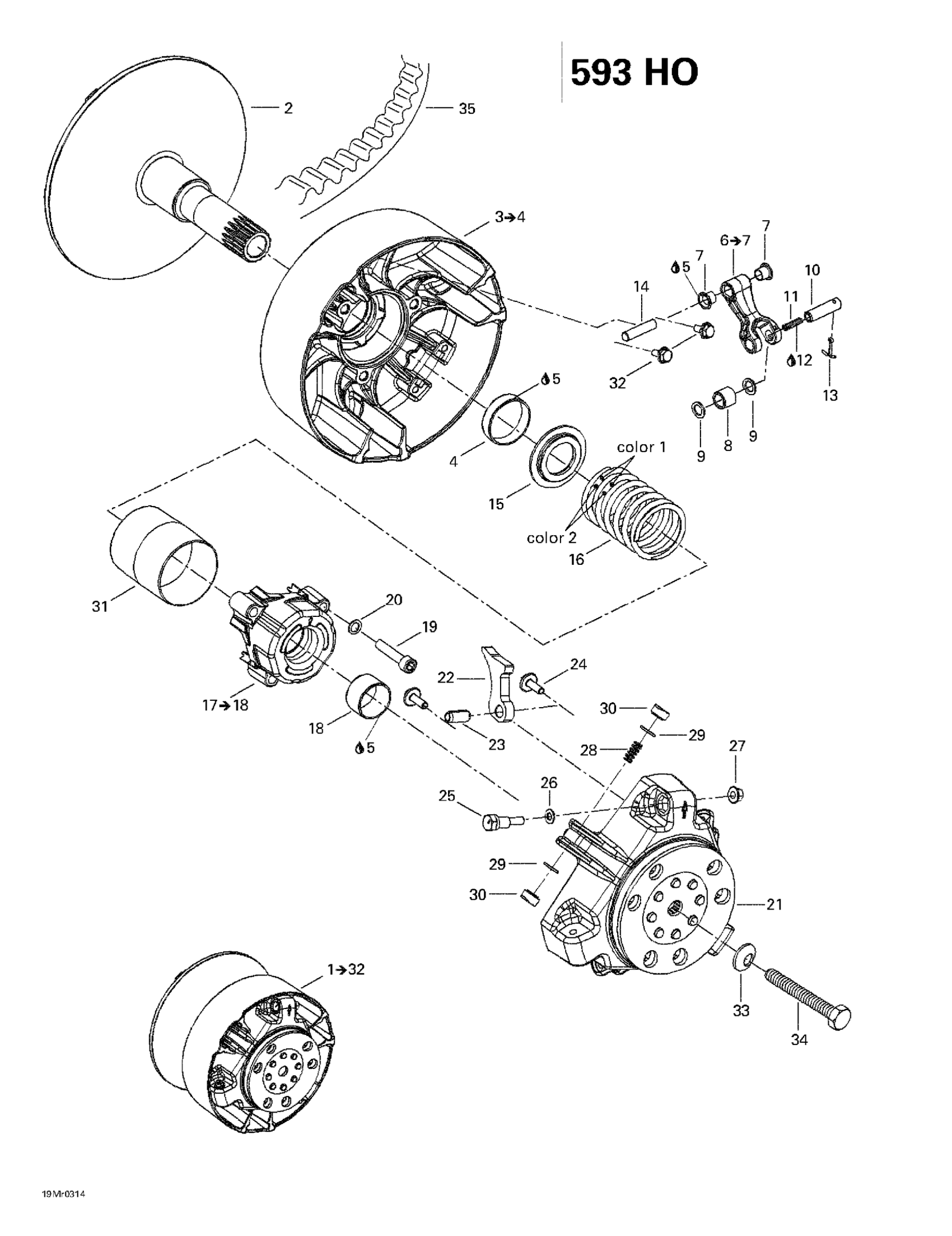

Ski-Doo Summit 600 HO/700/800 HO, 2003 Drive Pulley (593 HO) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$226.12

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417222758

$20.74

5

Loctite 609, 10 ml

413703100

$24.58

6

Lever | Includes 10f to 10g

417222671

$32.28

7

Bushing

417004305

Unavailable

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Threaded Pin

417222477

Unavailable

Pin

417004308

Unavailable

11

Socket Set Screw M6 X 20

206262099

Unavailable

12

Loctite 243, 10 ml

293800060

$20.77

13

Cotter Pin

250400060

$1.60

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

SPRING, GREEN/WHITE - Call your local BRP dealership

417222371

Unavailable

Spring, Violet/blue

415034900

$14.75

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

18

Bushing

417009204

$16.12

19

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

20

Lock Washer 8 mm

250200009

Unavailable

21

Governor Cup

417222213

Unavailable

22

Ramp 417

417222552

Unavailable

RAMP 410 - Call your local BRP dealership

417222596

Unavailable

23

Spring Pin M10 X 22

250400050

$2.38

24

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

25

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

26

Washer

417005600

$3.86

27

Hex. Flange Nut M6

233061414

Unavailable

28

Spring

417005700

Unavailable

29

O-Ring

732401030

$0.95

30

Slider Shoe This part replaces 420460045.

417223021

$6.09

31

Guard

417009205

$16.89

32

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

33

Spring Washer 14 mm

250200006

Unavailable

34

Drive Pulley Bolt

417120000

$63.82

35

Drive Belt

417300586

$154.58
