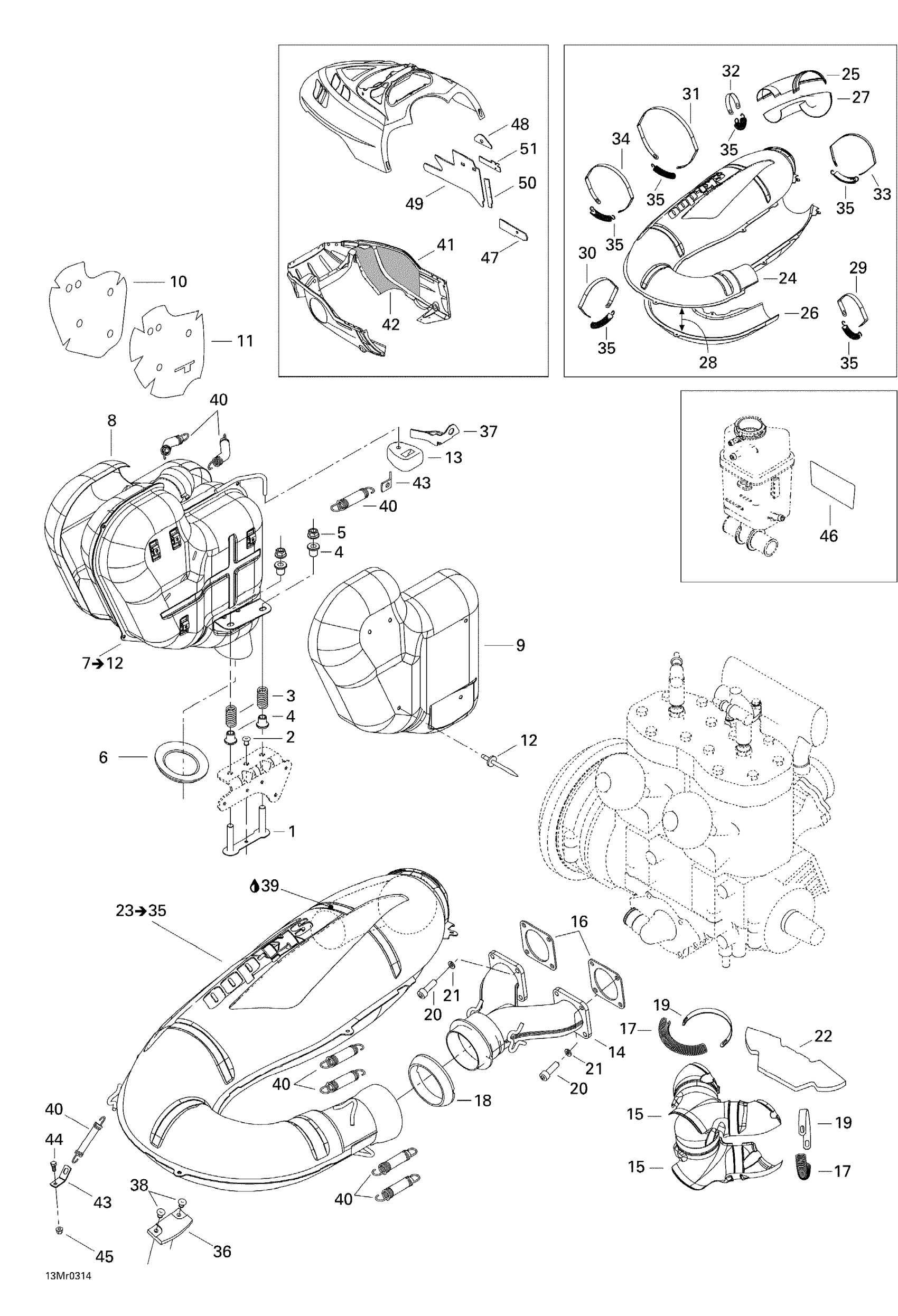

Ski-Doo Summit 600 HO/700/800 HO, 2003 Muffler Diagram

#

Description
Price

1

Muffler Bracket

514053263

Unavailable

2

Pop Rivet 3/16"

390402200

$0.26

3

SPRING - Call your local BRP dealership

414913700

$2.28

4

GUIDE - Call your local BRP dealership

514053343

$23.05

5

Lock Spring Nut M8

233481413

Unavailable

6

Exhaust Grommet

514053064

Unavailable

7

Muffler | 600 HO MX Z 600.

514053483

Unavailable

Muffler | 700 / INCLUDES ITEMS 7 TO 12

514053537

Unavailable

Muffler | 800 MX Z 800.

514053513

Unavailable

8

RH Heat Shield | 700

514053606

Unavailable

9

LH HEAT SHIELD - Call your local BRP dealership | 700

514053516

Unavailable

10

RH Insulating Wool | 700

514053294

Unavailable

11

LH Wooll Insulating

514053295

Unavailable

12

Pop Rivet 3/16”

390910000

$0.48

13

RUBBER BUMPER - Call your local BRP dealership

514052704

$10.74

14

Exhaust Manifold | 700

420973593

Unavailable

Exhaust Manifold | MX Z 800.

420973714

Unavailable

15

Enveloppe, Exhaust Manifold

514053593

Unavailable

16

Gasket

420850552

$7.92

Gasket

420931850

Unavailable

17

Spring

514053643

$6.20

18

Exhaust Gasket

514053487

Unavailable

19

RETAINING STRAP - Call your local BRP dealership

514053603

$7.66

20

Socket Head Screw M6 X 20

205062044

$1.07

21

Lock Washer M6, Black

234161471

$0.52

22

INSULATING WOOL - Call your local BRP dealership

514053588

$12.28

23

Calibrated Tube Ass'y | 700 / INCLUDES ITEMS 24 TO 36

514053506

Unavailable

24

Upper Enveloppe | 600

514053192

Unavailable

25

REAR UPPER ENVELOPE - Call your local BRP dealership | 700

514053313

$23.05

26

LOWER ENVELOPE - Call your local BRP dealership

514053367

$54.58

27

REAR LOWER ENVELOPE - Call your local BRP dealership | 700

514053314

$24.58

28

Insulating Wool | 700

514053315

Unavailable

29

Retaining Strap

514053498

$8.35

30

Retaining Strap

514053501

$8.34

31

RETAINING STRAP - Call your local BRP dealership

514053540

$7.66

32

Retaining Strap

514053492

$10.55

33

RETAINING STRAP - Call your local BRP dealership

514053500

$7.66

34

RETAINING STRAP - Call your local BRP dealership

514053512

Unavailable

35

Spring

514053643

$6.20

36

Rubber Pad

570044100

Unavailable

37

SUPPORT - Call your local BRP dealership

514053442

$9.20

38

Pop Rivet 3/16"

293150103

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

40

Spring

415107100

$6.20

41

Reflective Sheet

514052718

Unavailable

42

REFLECTIVE SHEET - Call your local BRP dealership

514053390

Unavailable

43

Spring Bracket

514053436

$8.35

44

Hex. Screw M5 X 12

207151244

Unavailable

45

Hex. Flange Elastic Nut M5

233251414

Unavailable

46

Reflective Sheet | Grand Touring 500.

514053399

Unavailable

47

Reflective Sheet, Black Cab

514053435

Unavailable

48

Reflective Sheet, Black Cab

514053446

Unavailable

49

Reflective Sheet

514053624

Unavailable

50

Reflective Sheet

514053450

Unavailable

51

Reflective Sheet | FOR RIM CAB ONLY

514053391

Unavailable
