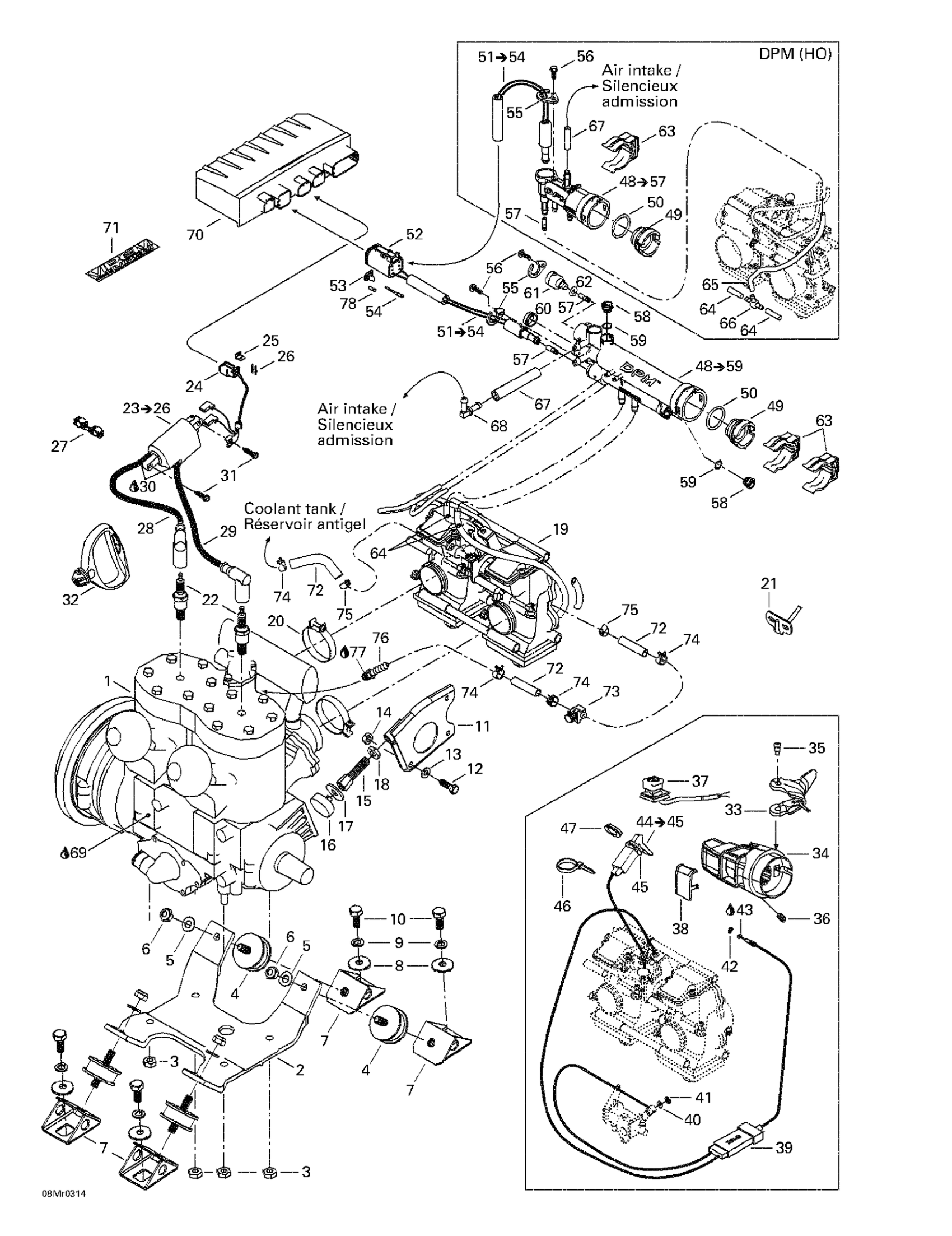

Ski-Doo Summit 600 HO/700/800 HO, 2003 Engine Support Diagram
#
1
Engine 593 Ho | STD 600 HO ADRENALINE. STD 600 HO RENEGADE MX Z 600.
400509737
Unavailable
Engine 593 Ho | RER 600 HO ADRENALINE. RER 600 HO RENEGADE MX Z 600.
400509738
Unavailable
Engine 693 | STD 700 ADRENALINE. STD 700 RENEGADE MX Z 700.
400604025
Unavailable
«693» Engine (Rer) | 700
400604026
Unavailable
Engine 793 HO | STD 800 HO ADRENALINE. STD 800 HO X. STD 800 HO HIGHMARK. STD 800 HO HIGHMARK X Summit 800 HO.
400702614
Unavailable
Engine 793 HO | RER 800 HO ADRENALINE. RER 800 HO X. RER 800 HO HIGHMARK. RER 800 HO HIGHMARK X. RER 800 HO HIGHMARK X EXTREME Summit 800 HO.
400702615
Unavailable
2
Engine Support
512059173
Unavailable
ENGINE SUPPORT - Call your local BRP dealership
512059488
Unavailable
4
RUBBER MOUNT - Call your local BRP dealership
570128700
Unavailable
5
Flat Washer 10 mm
234001410
Unavailable
7
Engine Support
512050900
Unavailable
8
Lock Washer
512056700
Unavailable
9
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
10
Hex. Screw M10 X 25
207102544
Unavailable
11
Support Plate
512058500
Unavailable
13
Flat Washer 8 mm
234081410
Unavailable
14
Hex. Elastic Stop Nut M8
232581414
Unavailable
15
STOPPER SCREW - Call your local BRP dealership
512058800
Unavailable
16
Stopper
512059056
Unavailable
17
WASHER - Call your local BRP dealership
512059057
Unavailable
18
Nut Hexagonal RH.
232026414
Unavailable
19
Carburetor kit | 600 HO Summit 600 HO.
403138734
Unavailable
Carburetor kit | 700 Summit 700.
403138735
Unavailable
Carburetor kit | 800 HO Summit 800 HO.
403138736
Unavailable
20
Gemi Clamp
512059835
Unavailable
21
Carburetor Bracket
512059504
Unavailable
CARBURETOR LATCH - Call your local BRP dealership
512059372
Unavailable
23
Ignition Coil | INCLUDES ITEMS 22 TO 25
512059512
Unavailable
25
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
409207100
Unavailable
26
Female Terminal
278000632
Unavailable
27
Plastic Clip, Spark Plug Wire
410914600
Unavailable
28
Cable Ass’y, 375 mm
512059696
Unavailable
29
CABLE ASSY, 455 MM - Call your local BRP dealership
512059486
Unavailable
30
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
31
14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.
296000365
Unavailable
32
Starter Grip
572084400
Unavailable
34
THROTTLE HOUSING - Call your local BRP dealership
512059763
Unavailable
38
Switch Cover
572100901
Unavailable
39
THROTTLE CABLE - Call your local BRP dealership | SPORT
512059679
Unavailable
42
Circlip
414274500
Unavailable
43
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
44
CHOKE CABLE - Call your local BRP dealership | INCLUDES ITEMS 41 TO 42
512059110
Unavailable
45
Lock Washer, Interior Teeth
394103300
Unavailable
46
Tie-Rap 173 mm
293750009
Unavailable
47
PLASTIC NUT - Call your local BRP dealership
512059094
Unavailable
48
Pressure Manifold Ass’Y | Grand Touring 700.
512059634
Unavailable
49
Cap | Grand Touring 600. Grand Touring 700.
512058949
Unavailable
50
O-Ring | Grand Touring 600. Grand Touring 700.
512058950
Unavailable
53
Male Wedge, 6 Circuits
515175678
Unavailable
54
Female Terminal
278000632
Unavailable
55
SOLENOID LOCK - Call your local BRP dealership
415061600
Unavailable
57
STARTER JET - Call your local BRP dealership
404161825
Unavailable
58
Cap | Grand Touring 600. Grand Touring 700.
512058921
Unavailable
59
O-Ring | Grand Touring 600. Grand Touring 700.
512058925
Unavailable
60
Cap | Grand Touring 600. Grand Touring 700.
512058982
Unavailable
61
Cap | Grand Touring 600. Grand Touring 700.
512059557
Unavailable
62
O-Ring | Grand Touring 600. Grand Touring 700.
512059558
Unavailable
63
SUPPORT - Call your local BRP dealership
512058919
Unavailable
SUPPORT - Call your local BRP dealership
512058919
Unavailable
64
Polyurethane Hose 10000Mm Long
219704410
Unavailable
Polyurethane Hose 10000Mm Long
219704410
Unavailable
Polyurethane Hose 10000Mm Long
219704410
Unavailable
Polyurethane Hose 10000Mm Long
219704410
Unavailable
65
Polyurethane Hose | DPM-HO ADRENALINE & RENEGADE MX Z 600.
512059524
Unavailable
66
T-FITTING - Call your local BRP dealership | Engine 800R
414729300
Unavailable
67
Hose | Grand Touring 600. Grand Touring 700.
512059523
Unavailable
Hose | DPM-HO ADRENALINE & RENEGADE MX Z 600.
512059651
Unavailable
69
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
2T Snowmobile Premium Mineral Oil This part replaces 413803000.
779120
Unavailable
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.
293600133
Unavailable
OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.
779130
Unavailable
OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.
293600132
Unavailable
70
CALIBRATION MODULE - Call your local BRP dealership | STD 600 HO ADRENALINE Summit 600 HO.
512059656
Unavailable
Calibration module (RER) | RER 600 HO ADRENALINE Summit 600 HO.
512059658
Unavailable
Calibration module | STD 700 ADRENALINE. STD 700 X. STD 700 HIGHMARK Summit 700.
512059663
Unavailable
Calibration module (RER) | RER 700 ADRENALINE. RER 700 X. RER 700 HIGHMARK Summit 700.
512059659
Unavailable
CALIBRATION MODULE - Call your local BRP dealership | STD 800 HO ADRENALINE. STD 800 HO X. STD 800 HO HIGHMARK. STD 800 HO HIGHMARK X Summit 800 HO.
512059664
Unavailable
Calibration module (RER) | RER 800 HO ADRENALINE. RER 800 HO X. RER 800 HO HIGHMARK. RER 800 HO HIGHMARK X. RER 800 HO HIGHMARK X EXTREME Summit 800 HO.
512059661
Unavailable
71
Electrical Box Decal
516000245
Unavailable
72
Hose 8 mm
509000093
Unavailable
73
Valve 5/16” | Grand Touring 500.
512059324
Unavailable
74
Spring Clamp
414655700
Unavailable
76
STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.
293710082
Unavailable
77
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
78
Sealing Cap
293000052
Unavailable
