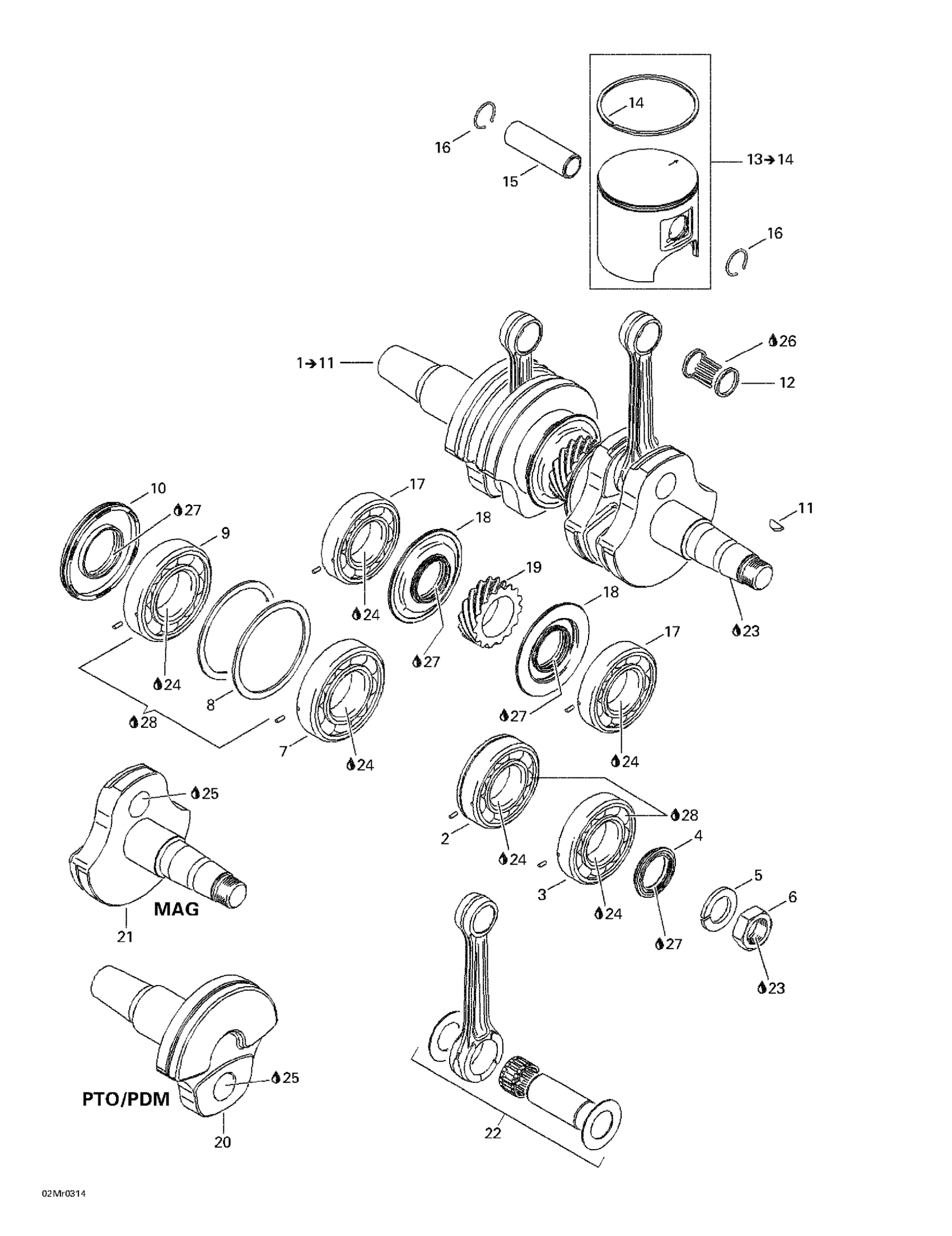

Ski-Doo Summit 600 HO/700/800 HO, 2003 Crankshaft And Pistons Diagram

#

Description
Price

1

REBUILD-CRANKSHAFT 693/593HO - Call your local BRP dealership This part replaces 420889097.

421000609

Unavailable

REBUILD-CRANKSHAFT 693/593HO - Call your local BRP dealership This part replaces 420889097.

421000609

Unavailable

Crankshaft ass'y | Summit 800 HO.

420889671

Unavailable

REBUILD-CRANKSHAFT 793 HO - Call your local BRP dealership

421000607

Unavailable

2

Ball Bearing Sealed, 6207

420832673

$96.89

3

Ball Bearing 6207 | With drive pin

420832575

Unavailable

4

Oil Seal

420931795

$16.89

5

Lock Washer, 22 mm

420945759

Unavailable

6

Hex. Nut, M22 X 1.5

420842239

Unavailable

7

Ball Bearing | With drive pin

420832602

Unavailable

Ball Bearing | With drive pin

420832602

Unavailable

8

Washer

420926190

Unavailable

9

Ball Bearing 6208 | With drive pin

420832600

$76.12

Ball Bearing | With drive pin

420832702

Unavailable

10

Oil Seal | Included in gasket kit

420931284

Unavailable

11

Woodruff Key

420246015

Unavailable

12

Needle Bearing

420832445

Unavailable

13

Piston Ass'y With Rings, 71.87 mm | Includes 13 to 14

420892388

$234.99

Piston Ass’y, 1 Ring 77.88 mm | INCLUDES ITEMS 13 TO 14

420888298

Unavailable

Piston 81 | Includes 13 to 14 This part replaces 420889456.

420889457

Unavailable

14

Semi-Trapez Ring

420815295

$65.99

SEMI-TRAPEZ RING - Call your local BRP dealership

420815226

Unavailable

SEMI-TRAPEZ RING - Call your local BRP dealership

420815360

Unavailable

15

Piston Pin

420916412

Unavailable

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

16

Piston Circlip

420845106

Unavailable

17

Ball Bearing 6207 | With drive pin

420832575

Unavailable

18

Oil Seal

420931455

Unavailable

19

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

20

CRANKSHAFT PTO - Call your local BRP dealership

420818709

Unavailable

CRANKSHAFT PTO - Call your local BRP dealership

420818709

Unavailable

CRANKSHAFT (PTO) - Call your local BRP dealership This part replaces 420819032.

420819030

Unavailable

21

CRANKSHAFT, MAG SIDE - Call your local BRP dealership

420818739

Unavailable

CRANKSHAFT, MAG SIDE - Call your local BRP dealership

420818739

Unavailable

Crankshaft, Mag

420819061

Unavailable

22

Rod Repair Kit, Mag Side

420889093

Unavailable

Rod Repair Kit, Mag

420889108

Unavailable

Rod Repair Kit, PTO Side

420889094

Unavailable

Rod Repair Kit, PTO

420889109

Unavailable

23

Loctite 243, 10 ml

293800060

$20.77

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

Unavailable

26

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

27

Petamo Grease, GHY133N, 400 g

420899271

Unavailable

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

Unavailable
