2005 Ski-Doo Summit 600 HO Electrical Accessories 2 Diagram

← All diagrams

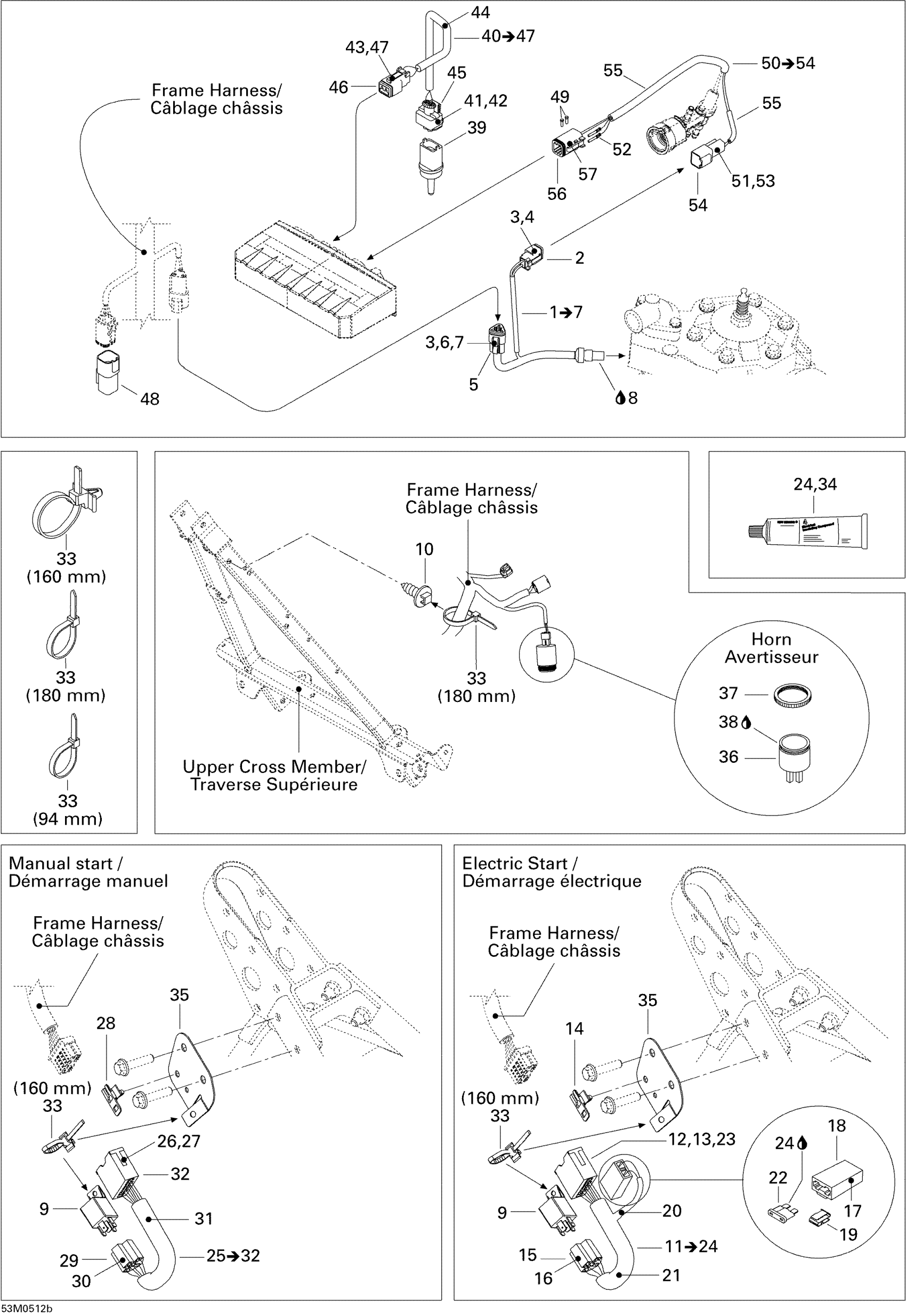

Find the part on the Electrical Accessories 2 diagram for your 2005 Ski-Doo Summit 600 HO, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Ski-Doo Summit 600 HO Electrical Accessories 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TEMPERATURE SENSOR - Call your local BRP dealership | Includes 6 to 13 / SPORT

515176041

—
Out of stock

2

Female Terminal Housing, 2 Circuits

515175670

1
Out of stock

3

Female Terminal

278000632

4
Out of stock

4

Female Lock, 2 Circuits

515175675

1
Out of stock

5

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

—
Out of stock

6

Female Lock, 3 Circuits

515175676

1
Out of stock

7

Sealing Cap

293000052

1
Out of stock

8

1

$33.99

In stock

9

Relay | DS 650 X

710010053

1
Out of stock

10

Mount Dart

293730040

1
Out of stock

11

Configuration Harness Ass'y | Includes 13 to 27

515175721

1
Out of stock

12

Male Terminal

515175232

4
Out of stock

13

MALE TERMINAL - Call your local BRP dealership

515175273

—
Out of stock

14

Housing Support

515175283

1
Out of stock

15

1

$8.98

In stock

16

Female Terminal

561503100

4
Out of stock

17

Female Terminal

409011600

2

$5.11

In stock

18

Fuse Holder

409004000

1
Out of stock

19

CLIP - Call your local BRP dealership

409014200

—
Out of stock

20

Tubing 6 Mm 3000Mm Long

219704425

1
Out of stock

21

1

$9.40

In stock

22

1

$3.22

In stock

23

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

—
Out of stock

24

1

$37.66

In stock

25

CONFIGURATION HARNESS - Call your local BRP dealership | Manual Start, Includes 22 to 29

515176175

—
Out of stock

26

Male Terminal

515175232

1
Out of stock

27

MALE TERMINAL - Call your local BRP dealership

515175273

—
Out of stock

28

Housing Support

515175283

1
Out of stock

29

1

$8.98

In stock

30

Female Terminal

561503100

1
Out of stock

31

1

$9.40

In stock

32

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

—
Out of stock

33

Tie-Rap 180 mm

414115200

1
Out of stock

33

Tie Wrap 94 mm | 4X4

293750001

1
Out of stock

33

Tie-Rap 173 mm

293750009

1
Out of stock

34

1

$37.66

In stock

35

HARNESS SUPPORT - Call your local BRP dealership

515176020

—
Out of stock

36

HORN - Call your local BRP dealership

515176035

—
Out of stock

37

—

$3.57

In stock

38

Silicone Sealant 51388, 300 ml

296000309

1
Out of stock

39

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

—
Out of stock

40

Temperature Harness | Includes 40 to 47

515175703

—
Out of stock

41

Female Terminal

278000998

1
Out of stock

42

Wire Seal

278000999

1

$2.55

In stock

43

Female Terminal

278000632

1
Out of stock

44

1

$19.20

In stock

45

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

—
Out of stock

46

Female Terminal Housing, 2 Circuits

515175670

1
Out of stock

47

Female Lock, 2 Circuits

515175706

—
Out of stock

48

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

—
Out of stock

49

Sealing Cap

293000052

2
Out of stock

50

Sensor Harness | Includes 25 - 29.

515175822

—
Out of stock

51

Male Terminal

278000631

1

$4.12

In stock

52

Female Terminal

278000632

1
Out of stock

53

1

$3.02

In stock

54

Male Terminal Housing, 2 Circuits

515175665

1
Out of stock

55

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

—
Out of stock

56

1

$13.05

In stock

57

Male Wedge, 6 Circuits

515175678

1
Out of stock
