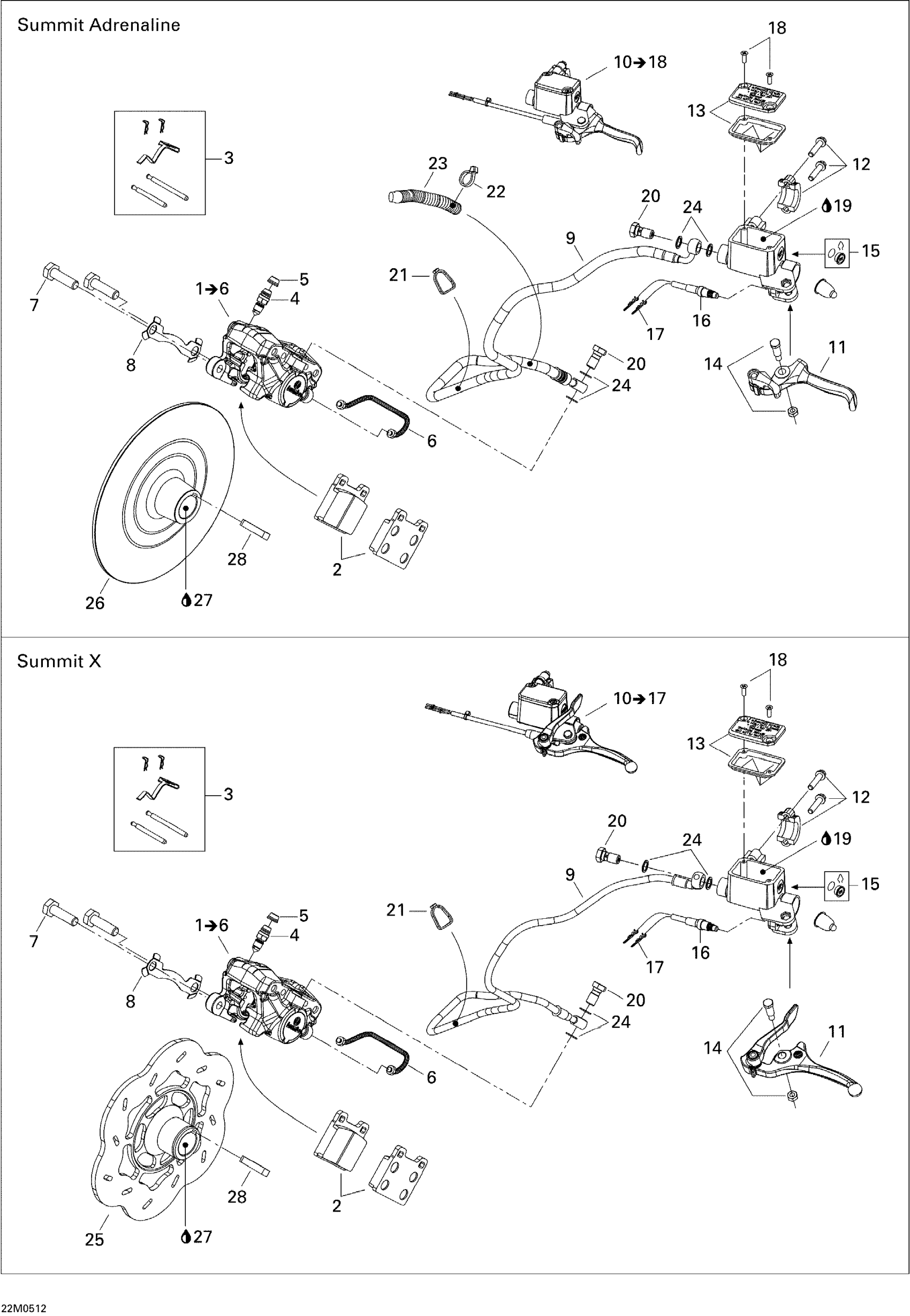

Ski-Doo Summit 600 HO, 2005 Hydraulic Brake 600HO Diagram
#
Description
Price
1
CALIPER - Call your local BRP dealership | LTD, Includes 1 to 6
507032415
Unavailable
2
Brake Pad Kit
415084600
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
415128865
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
7
Hex. Screw M10 X 35
207103544
Unavailable
8
LOCKING TAB - Call your local BRP dealership
507032316
Unavailable
9
BRAKE HOSE - Call your local BRP dealership
507032398
Unavailable
10
Master Cylinder | Includes 10 to 16
507032362
Unavailable
11
BRAKE SHORT LEVER ASSY - Call your local BRP dealership
507032268
Unavailable
13
Cap
415029900
Unavailable
14
Pin Ass'y
415030000
Unavailable
15
WINDOW - Call your local BRP dealership
414990600
Unavailable
16
Microswitch
507032366
Unavailable
18
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
19
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership
293600063
Unavailable
19
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
21
Tie Wrap 142 mm
293750002
Unavailable
22
Tie Wrap 142 mm
293750002
Unavailable
23
Tubing 10 MM 1000MM Long
219704407
Unavailable
24
Washer
414920600
Unavailable
26
Brake Disk
507032403
Unavailable
27
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
28
KEY - Call your local BRP dealership
507021300
Unavailable
