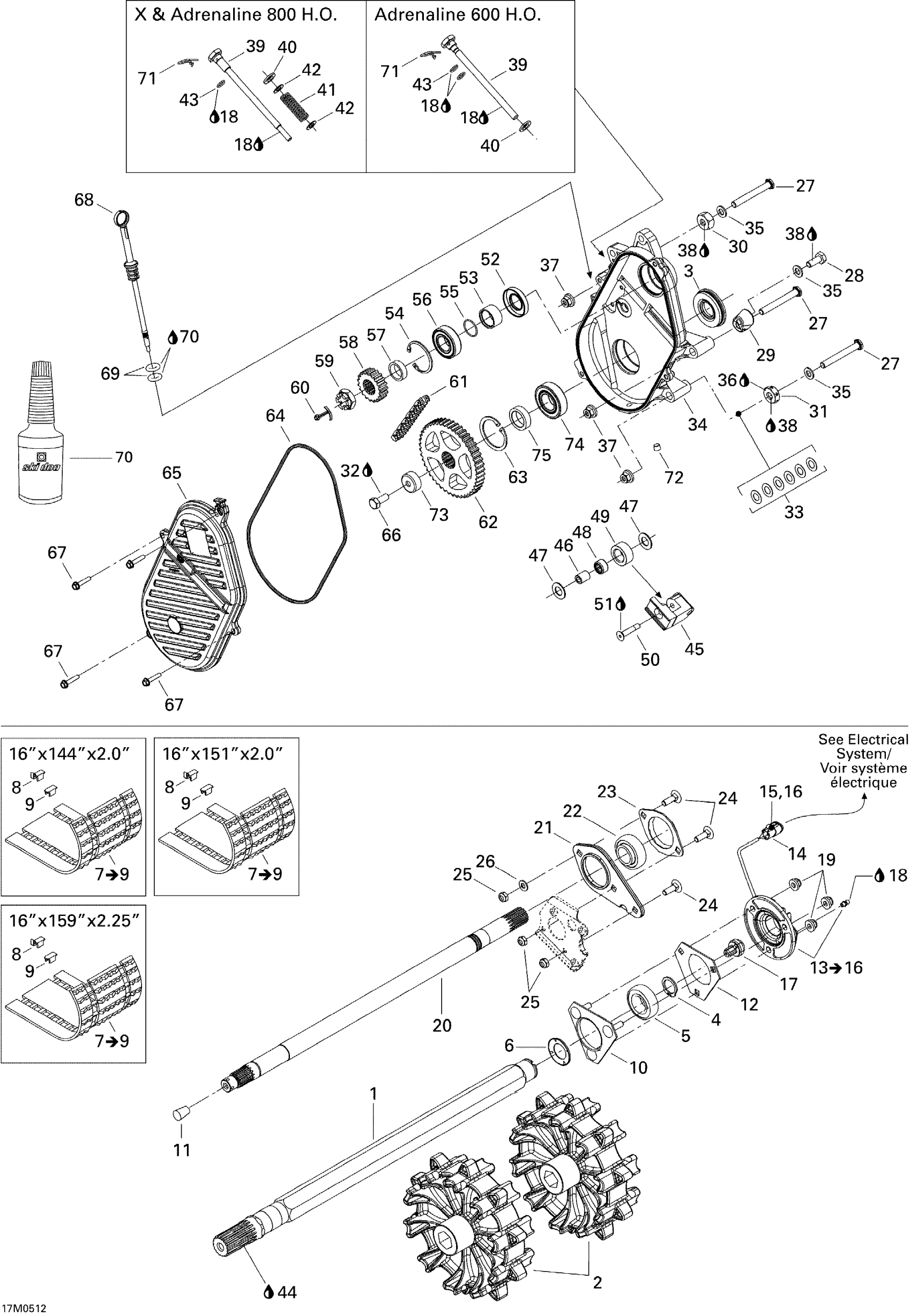

Ski-Doo Summit 600 HO, 2005 Drive System 600HO Diagram
#
2
SPROCKET, 10 TEETH, INTERIOR/EXTERIOR - Call your local BRP dealership | Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applications
504152502
Unavailable
3
Oil Seal Ass'y
504151918
Unavailable
4
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
5
Ball Bearing
293350060
Unavailable
6
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
7
Track 16" X 144" X 2.0" Ass'y | X & Adr. 800 H.O. & 600 H.O., Includes 7 to 9
504152223
Unavailable
9
Cleat
504152651
Unavailable
10
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
12
FLANGE - Call your local BRP dealership
501025000
Unavailable
13
Rotation Sensor
504152345
Unavailable
14
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515175671
Unavailable
15
Female Terminal
278000632
Unavailable
16
Female Lock, 3 Circuits
515175676
Unavailable
17
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
18
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
COUNTER SHAFT - Call your local BRP dealership
504152018
Unavailable
21
SPACER - Call your local BRP dealership
504151968
Unavailable
22
Ball Bearing Kit This part replaces 504152535.
415129555
Unavailable
23
BEARING HOUSING ASS'Y - Call your local BRP dealership
504153089
Unavailable
25
Hex. Elastic Stop Nut M8
232581414
Unavailable
26
Flat Washer 8 mm
234081410
Unavailable
27
HEX. SCREW M10 X 80 - Call your local BRP dealership
250000151
Unavailable
28
Hex. Screw M10 X 25
207102544
Unavailable
29
Spacer
504152252
Unavailable
30
Spacer
504083800
Unavailable
31
SPACER - Call your local BRP dealership
504152237
Unavailable
32
Loctite 271, 10 ml
293800005
Unavailable
33
WASHER - Call your local BRP dealership
504073700
Unavailable
34
Chaincase
504152312
Unavailable
36
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
39
ADJUSTMENT SCREW - Call your local BRP dealership
732601314
Unavailable
40
Flat Washer 10 mm
234001410
Unavailable
41
Not Available As Spare Parts
XXX
Unavailable
42
Not Available As Spare Parts
XXX
Unavailable
44
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
45
Chain Tensioner
504151951
Unavailable
46
SPACER - Call your local BRP dealership
504080200
Unavailable
47
WASHER - Call your local BRP dealership
504080300
Unavailable
49
ROLLER - Call your local BRP dealership
414531300
Unavailable
50
SCREW - Call your local BRP dealership
732601144
Unavailable
51
Loctite 271, 10 ml
293800005
Unavailable
52
Oil Seal
293200158
Unavailable
53
SPACER - Call your local BRP dealership
507031500
Unavailable
54
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
55
O-RING - Call your local BRP dealership
414876700
Unavailable
56
Ball Bearing
293350115
Unavailable
57
SHIM - Call your local BRP dealership
504147200
Unavailable
59
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership
250000012
Unavailable
60
PIN COTTER - Call your local BRP dealership
371006300
Unavailable
61
Drive Chain, 74 Links | Except Europe
504151857
Unavailable
62
45 Tooth Sprocket | Europe
504152238
Unavailable
63
CIRCLIP, INTERIOR - Call your local BRP dealership
415064300
Unavailable
65
CHAINCASE COVER - Call your local BRP dealership
504152471
Unavailable
66
Hex. Screw M10 X 25
207102544
Unavailable
68
FILLER CAP ASS'Y - Call your local BRP dealership
504151703
Unavailable
69
O-RING - Call your local BRP dealership
414969400
Unavailable
70
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
Unavailable
71
Hair Pin
414575600
Unavailable
72
Plug 1/8”-27
504151921
Unavailable
73
CAP - Call your local BRP dealership
504152460
Unavailable
74
Ball Bearing
504152005
Unavailable
75
Shim
504152058
Unavailable
