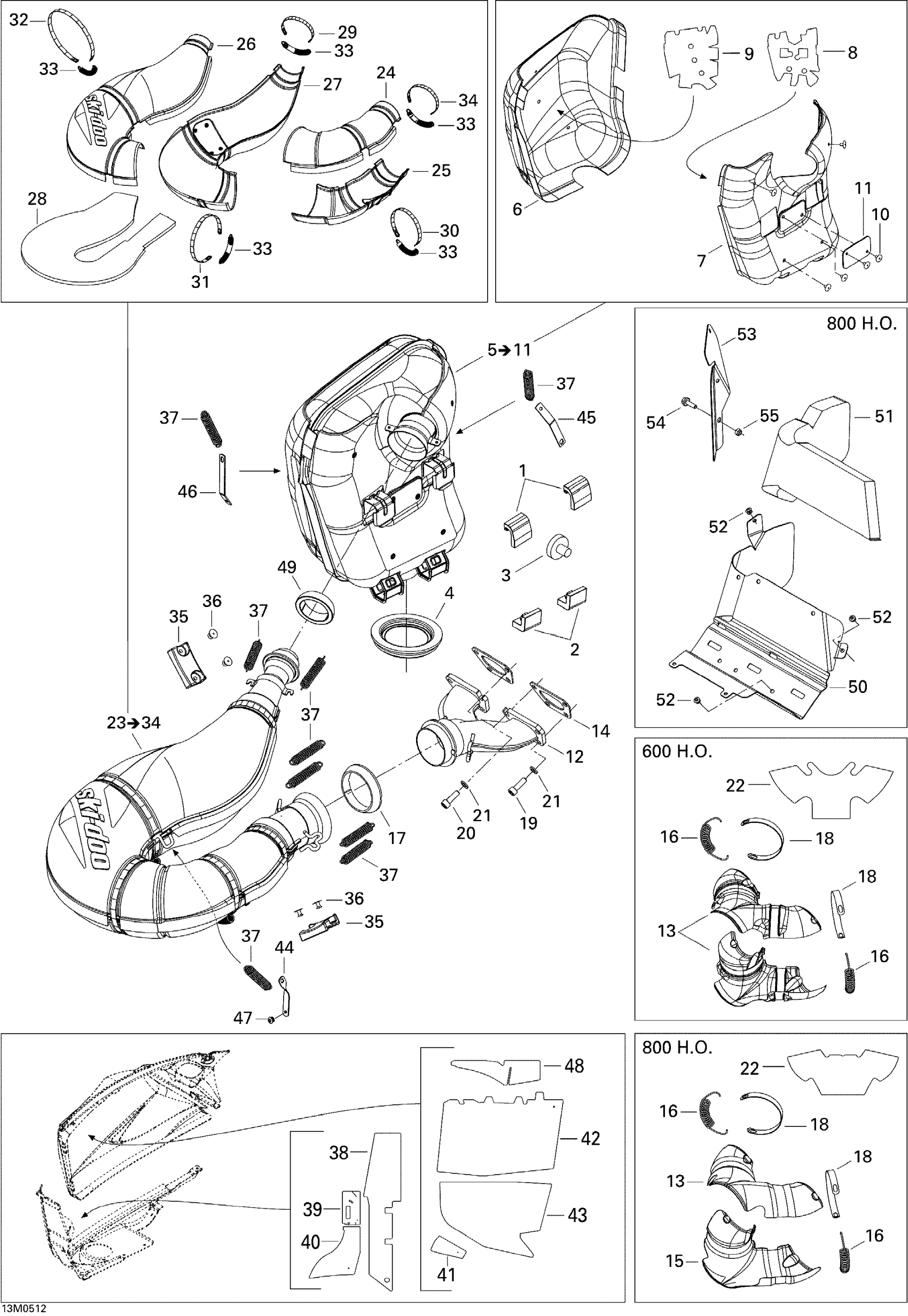

Ski-Doo Summit 600 HO, 2005 Exhaust System, 600HO Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

$13.95

2

Lower Stopper

514053373

Unavailable

3

Rubber Bumper

514053654

$49.20

4

Exhaust Grommet

514053394

Unavailable

5

Muffler Ass'y | 600 HO, Includes 5 To 11

514053729

Unavailable

6

RH Heat Shield

514053563

Unavailable

7

LH Heat Shield

514053585

Unavailable

8

LH INSULATING WOOL - Call your local BRP dealership

514053590

$12.28

9

RH INSULATING WOOL - Call your local BRP dealership

514053589

$13.82

10

Pop Rivet 3/16”

390910000

$0.48

11

Reinforcement

514053429

Unavailable

12

EXHAUST MANIFOLD - Call your local BRP dealership

420673072

Unavailable

13

Enveloppe, Exhaust Manifold

514053593

Unavailable

14

Gasket

420850552

$7.92

15

Not Available As Spare Parts

XXX

Unavailable

16

Spring

514053643

$6.20

17

Exhaust Gasket

514053487

Unavailable

18

RETAINING STRAP - Call your local BRP dealership

514053603

$7.66

19

Socket Head Screw Scotch Grip M6 X 20

250001077

Unavailable

20

Socket Head Screw Scotch Grip M6 X 20

250001077

Unavailable

21

Washer

514053953

$0.75

22

INSULATING WOOL - Call your local BRP dealership

514053588

$12.28

23

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 23 to 34

514053735

$626.89

24

Upper Front Half Envelope

514053609

Unavailable

25

Lower Front Half Envelope

514053610

Unavailable

26

UPPER REAR HALF ENVELOPE - Call your local BRP dealership

514053612

Unavailable

27

LOWER REAR HALF ENVELOPE - Call your local BRP dealership

514053613

$36.89

28

INSULATING WOOL - Call your local BRP dealership

514053584

$14.88

29

RETAINING STRAP - Call your local BRP dealership

514053437

$7.66

30

RETAINING STRAP - Call your local BRP dealership

514053500

$7.66

31

RETAINING STRAP - Call your local BRP dealership

514053534

$9.20

32

RETAINING STRAP - Call your local BRP dealership

514053535

$9.20

33

Spring

514053643

$6.20

34

Retaining Strap

514053536

$12.58

35

BUMPER - Call your local BRP dealership

514053352

$14.58

36

Pop Rivet 3/16"

293150103

Unavailable

37

Spring

415107100

$6.20

38

REFLECTIVE SHEET - Call your local BRP dealership

514053560

$9.20

39

Reflective Sheet

514053912

Unavailable

40

Reflective Sheet

514053913

Unavailable

41

Reflective Sheet

514053914

Unavailable

42

REFLECTIVE SHEET - Call your local BRP dealership

514053954

$12.28

43

REFLECTIVE SHEET - Call your local BRP dealership

514053562

$9.20

44

SPRING BRACKET - Call your local BRP dealership

514053955

$6.89

45

SPRING BRACKET - Call your local BRP dealership

514053725

$6.18

46

Spring Bracket

514053393

$11.58

47

Avex Rivet

390909200

Unavailable

48

REFLECTIVE SHEET - Call your local BRP dealership

514053673

$7.66

49

Exhaust Gasket

514053812

$25.35

50

Not Available As Spare Parts

XXX

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

55

Not Available As Spare Parts

XXX

Unavailable
