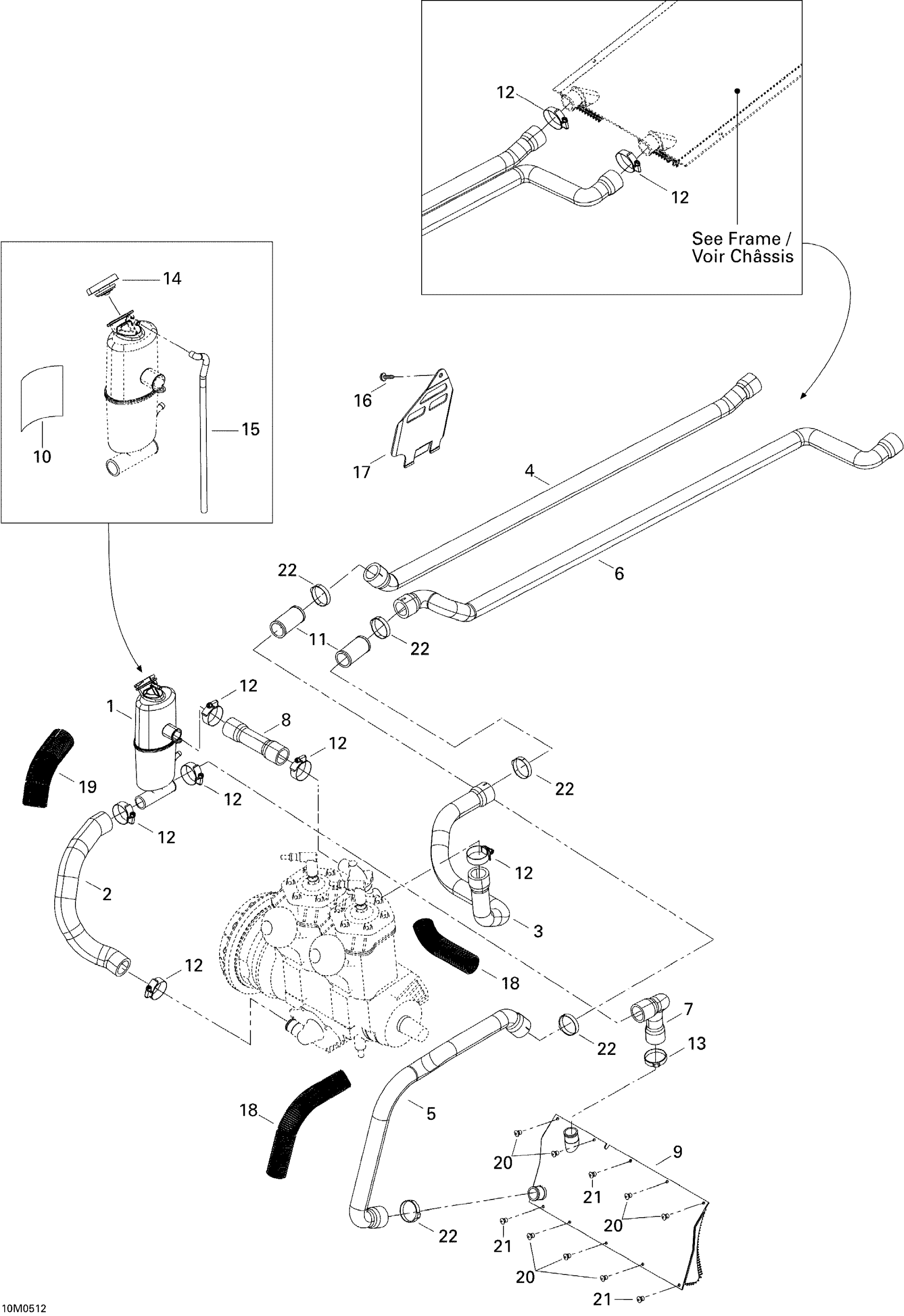

Ski-Doo Summit 600 HO, 2005 Cooling System Diagram

#

Description
Price

1

Coolant Tank

509000408

Unavailable

2

ENGINE INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000135

Unavailable

3

ENGINE FRONT OUTLET HOSE - Call your local BRP dealership

509000215

Unavailable

4

REAR RADIATOR OUTLET HOSE - Call your local BRP dealership

509000307

Unavailable

5

FRONT RADIATOR INTAKE HOSE - Call your local BRP dealership

509000216

Unavailable

6

ENGINE REAR HOSE OUTLET - Call your local BRP dealership

509000308

Unavailable

7

RADIATOR OUTLET HOSE - Call your local BRP dealership

509000266

Unavailable

8

Hose

509000129

Unavailable

9

FRONT RADIATOR - Call your local BRP dealership

518323903

Unavailable

10

REFECTIVE SHEET - Call your local BRP dealership

509000190

Unavailable

11

Fitting

509000224

Unavailable

12

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

13

Oetiker Gear Clamp

509000181

$3.61

14

Pressure Cap

509000187

Unavailable

15

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

16

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

17

DEFLECTOR - Call your local BRP dealership

509000257

Unavailable

18

Tubing 25 MM 1000MM Long

219704402

Unavailable

19

Tubing 35 MM 1000MM Long

219704428

Unavailable

20

Pop Rivet 3/16"

390402200

$0.26

21

Avex Rivet

390909100

$0.29

22

Oetiker Gear Clamp 36.1MM

509000045

Unavailable
