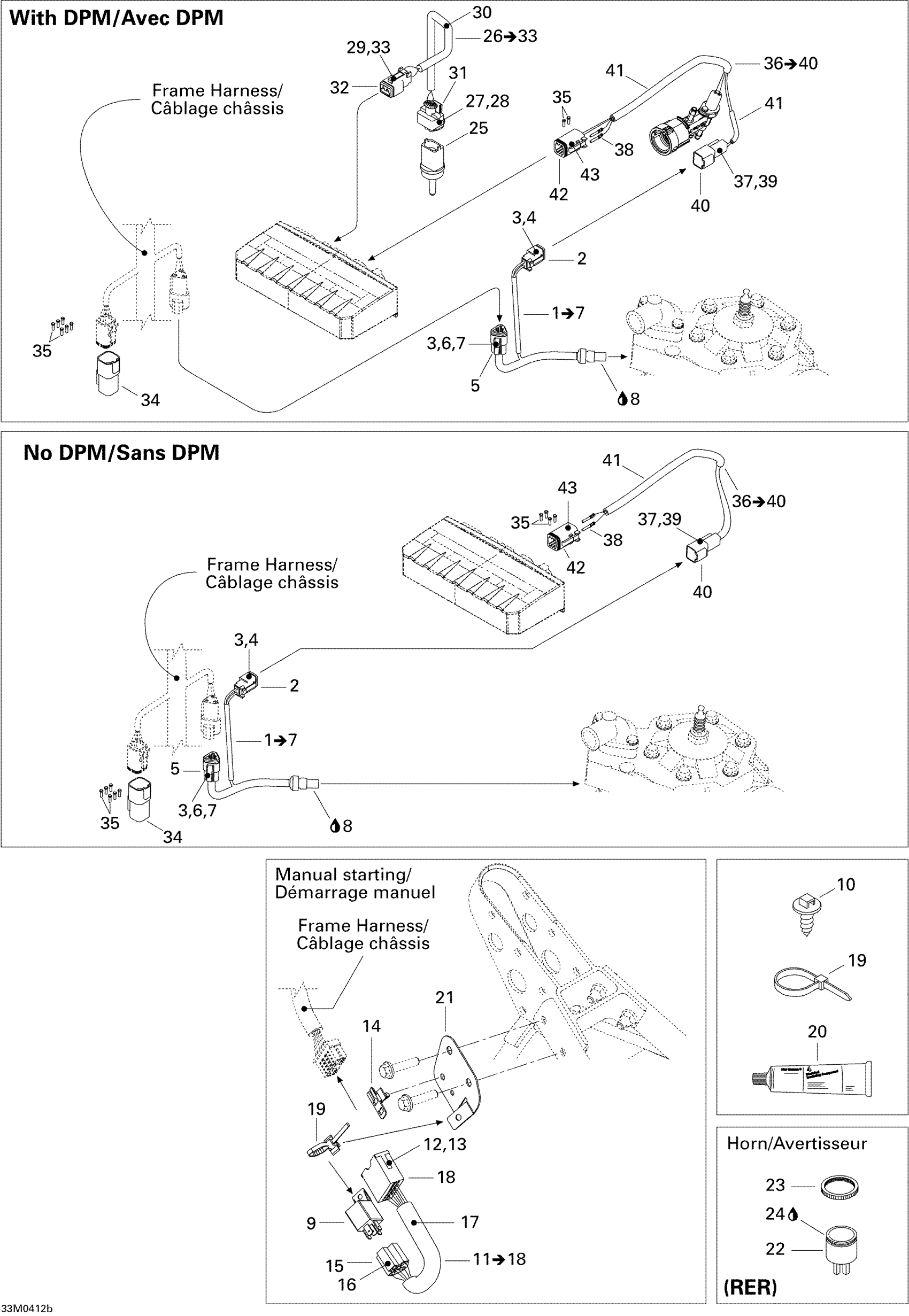

Ski-Doo Summit 600 HO, 2004 Electrical System 2 Diagram
#
Description
Price
1
TEMPERATURE SENSOR - Call your local BRP dealership | Includes 6 to 13 / SPORT
515176041
Unavailable
2
Female Terminal Housing, 2 Circuits
515175670
Unavailable
3
Female Terminal
278000632
Unavailable
4
Female Lock, 2 Circuits
515175675
Unavailable
5
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515175671
Unavailable
6
Female Lock, 3 Circuits
515175676
Unavailable
7
Sealing Cap
293000052
Unavailable
8
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
9
Relay | DS 650 X
710010053
Unavailable
11
Configuration Harness | Includes items 25 to 32 / Manual starting
515175722
Unavailable
13
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
16
Female Terminal
561503100
Unavailable
17
Was 409901800 Tubing (13 mm)
219704400
Unavailable
18
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
515175720
Unavailable
Tie-Rap 173 mm
293750009
Unavailable
20
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
21
HARNESS SUPPORT - Call your local BRP dealership
515176020
Unavailable
22
HORN - Call your local BRP dealership
515176035
Unavailable
24
Silicone Sealant 51388, 300 ml
296000309
Unavailable
25
AIR TEMPERATURE SENSOR - Call your local BRP dealership
270600000
Unavailable
26
Temperature Harness | Includes 40 to 47
515175703
Unavailable
29
Female Terminal
278000632
Unavailable
30
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
31
FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership
515175588
Unavailable
32
Female Terminal Housing, 2 Circuits
515175670
Unavailable
33
Female Lock, 2 Circuits
515175706
Unavailable
35
Sealing Cap
293000052
Unavailable
Sealing Cap
293000052
Unavailable
36
Sensor Harness | Includes 25 - 29.
515175822
Unavailable
38
Female Terminal
278000632
Unavailable
41
LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership
409901300
Unavailable
43
Male Wedge, 6 Circuits
515175678
Unavailable
