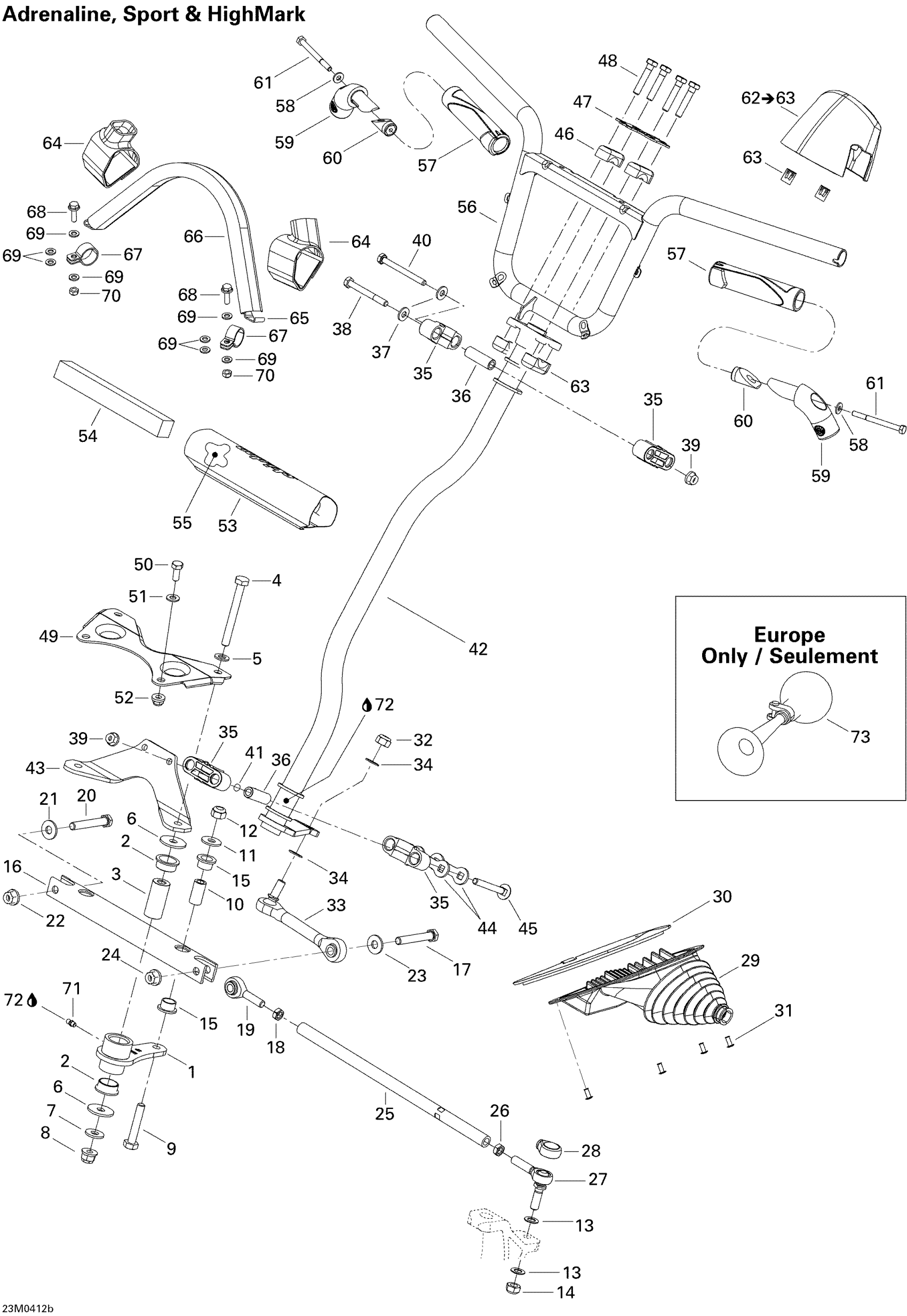

Ski-Doo Summit 600 HO, 2004 Steering System (Sport, Adrenaline, Highmark) Diagram

#

Description
Price

1

RH Swivel Arm

506151651

Unavailable

LH SWIVEL ARM - Call your local BRP dealership

506151652

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

$5.52

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.20

6

Washer 10 mm

506150000

Unavailable

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Flange Nut M10

732610084

Unavailable

9

Hex. Screw M10 X 55

207005544

$1.85

10

Pivot Bar

506151273

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.68

13

Washer

503175800

$3.26

14

Elastic Flange Nut M10

232501416

Unavailable

15

Swivel Bushing

503191555

Unavailable

16

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

17

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

18

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

19

LH Ball Joint

506151810

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

22

Hex. Flange Elastic Nut M10

233201414

$1.26

23

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

24

Hex. Flange Elastic Nut M10

233201414

$1.26

25

TIE-ROD - Call your local BRP dealership

506151375

Unavailable

26

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

27

Ball Joint

506151811

Unavailable

28

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

29

RH Tie-Rod Cap

506151725

Unavailable

LH Tie-Rod Cap

506151726

Unavailable

30

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

31

Pop Rivet 3/16"

390402200

$0.26

32

Elastic Flange Nut M10

232501416

Unavailable

33

BALL JOINT, DOUBLE - Call your local BRP dealership

506151621

Unavailable

34

Washer

503175800

$3.26

35

Housing Half

506150400

Unavailable

36

Housing Bushing

506150500

Unavailable

37

Washer

503189157

$3.20

38

Hex. Screw M8 X 70

207087044

Unavailable

39

Hex. Flange Elastic Nut M8

233281414

Unavailable

40

Hex. Screw M8 X 80

207088044

Unavailable

41

O-RING - Call your local BRP dealership

506151140

Unavailable

42

Main Tube

506151855

Unavailable

43

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

44

Stopper Plate

506150600

Unavailable

45

Carriage Bolt M8 X 70

207787044

Unavailable

46

Steering Support

709400919

Unavailable

47

REINFORCEMENT - Call your local BRP dealership

506151547

Unavailable

48

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

49

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

50

Hex. Screw M8 X 20

207182044

$0.61

51

Flat Washer 8 mm

234081410

Unavailable

52

Hex. Flange Elastic Nut M8

233281414

Unavailable

53

Steering Cover

506151860

Unavailable

54

Steering Cover Foam Insert

506151861

Unavailable

55

Steering Cover Foam

506151862

Unavailable

56

HANDLEBAR - Call your local BRP dealership

506151767

Unavailable

57

Handle Grip

506151595

Unavailable

58

Flat Washer

250200039

Unavailable

59

SHORT J-HOOK - Call your local BRP dealership

506151825

Unavailable

60

LOCK WEDGE - Call your local BRP dealership

506151827

Unavailable

61

HEX. SCREW M6 X 70 - Call your local BRP dealership

207067084

Unavailable

62

CAP - Call your local BRP dealership | Includes 29 to 30

506151660

Unavailable

63

Edge Clip

517302785

Unavailable

64

PROTECTOR - Call your local BRP dealership

506151738

Unavailable

65

Strap Ass'y | Package XMR

506152115

$43.05

66

Strap Ass'y | Package XMR

506152115

$43.05

67

Black Support Plate

506152536

$8.60

68

Hex. Flange Screw M6 X 20

207662084

Unavailable

69

Flat Washer 6 mm

234061410

Unavailable

70

Elastic Stop Nut M6

232561414

Unavailable

71

Grease Fitting

408200700

Unavailable

72

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

73

Horn

549011291

$35.35
