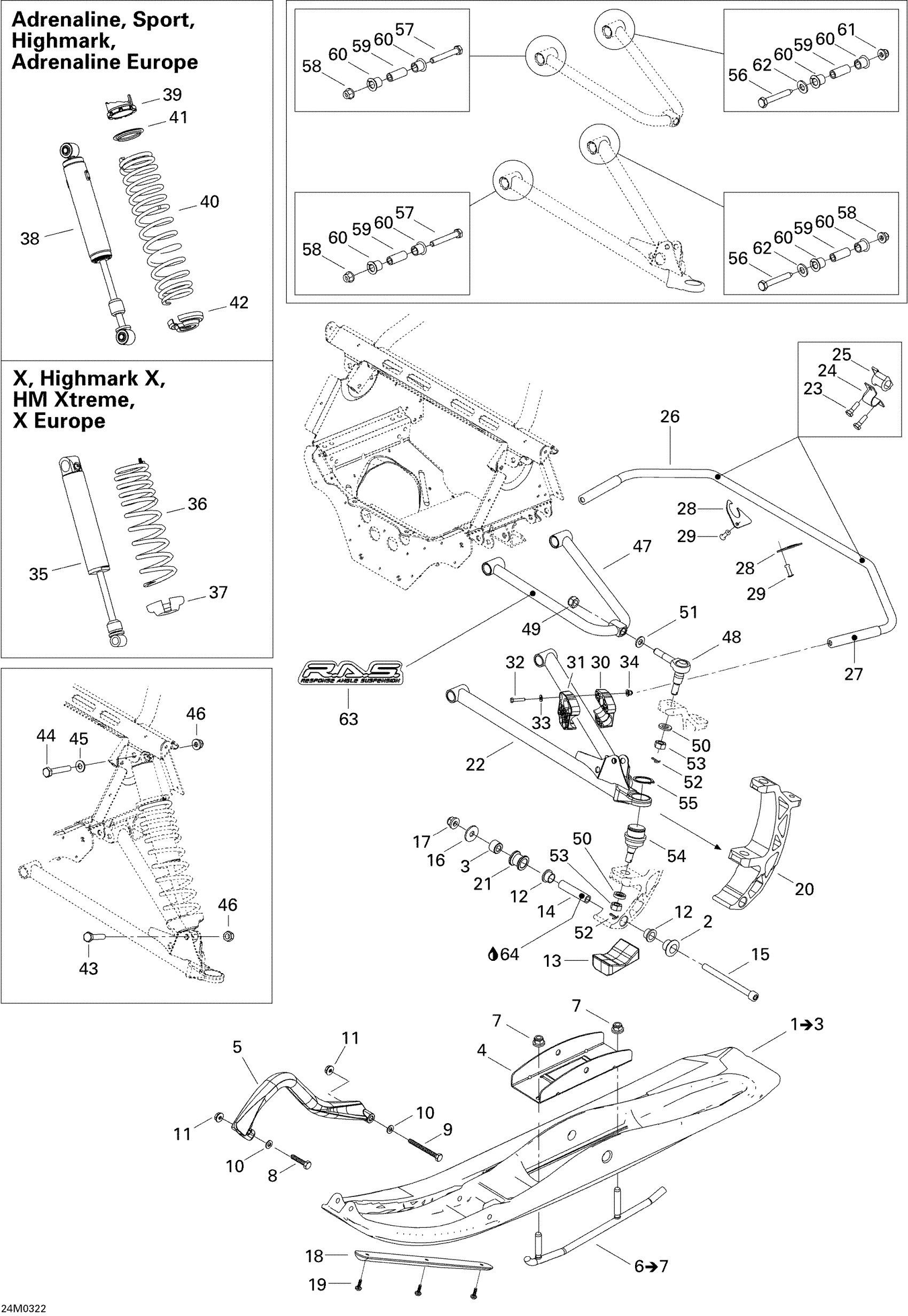

Ski-Doo Summit 600 HO, 2004 Front Suspension Diagram
#
1
RH Ski Ass'y | INCLUDES 1 TO 3 This part replaces 505071046.
505071391
Unavailable
RH Ski Ass'y | Includes items 1 to 3 (Yellow (B-190))
505071406
Unavailable
LH Ski Ass'y | Includes items 1 to 3 (Black (B-160))
505071392
Unavailable
LH Ski Ass'y | Includes items 1 to 3 (Yellow (B-190))
505071407
Unavailable
2
CUSHION - Call your local BRP dealership
505070743
Unavailable
3
CUSHION - Call your local BRP dealership
505070823
Unavailable
4
Ski Renforcement
505070745
Unavailable
5
Handle Kit, Yellow
860506400
Unavailable
Black, Handle
505070963
Unavailable
6
Carbide Runner | Includes items 6 to 7
860508400
Unavailable
8
Hex. Screw M8 X 50
207085044
Unavailable
9
SCREW-HEX. M8 X 100 - Call your local BRP dealership
230080044
Unavailable
10
Flat Washer 8 mm
234081410
Unavailable
11
Hex. Flange Elastic Nut M8
233281414
Unavailable
12
Leg Bushing
505072690
Unavailable
14
Spacer
506133300
Unavailable
15
Socket Head Screw M10 X 125
250000069
Unavailable
16
Flat Washer 10 mm This part replaces M20011.
234002410
Unavailable
17
Flange Nut M10
732610084
Unavailable
18
PROACTIVE CONTROL - Call your local BRP dealership
505071393
Unavailable
19
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
20
SKI LEG - Call your local BRP dealership
505071248
Unavailable
21
SPACER - Call your local BRP dealership
505071215
Unavailable
22
RH Lower Arm Ass'Y | Includes 22, 54 and 55
860509500
Unavailable
RH Lower Arm
505071296
Unavailable
22
LH LOWER ARM ASS'Y - Call your local BRP dealership
860512800
Unavailable
LH LOWER ARM ASS'Y - Call your local BRP dealership
860512800
Unavailable
23
Hex. Screw With Nylon
250000118
Unavailable
24
CLAMP - Call your local BRP dealership
506095800
Unavailable
25
LH BUSHING - Call your local BRP dealership
505070664
Unavailable
RH BUSHING - Call your local BRP dealership
505070912
Unavailable
26
STABILISATOR - Call your local BRP dealership
505070948
Unavailable
27
STABILISATOR BOOT - Call your local BRP dealership
505071039
Unavailable
28
PLUG - Call your local BRP dealership
505071253
Unavailable
29
Pop Rivet 3/16"
293150103
Unavailable
30
RH SLIDER HALF - Call your local BRP dealership
505071268
Unavailable
31
LH SLIDER HALF - Call your local BRP dealership
505071269
Unavailable
32
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152544
Unavailable
33
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
34
Hex. Flange Elastic Nut M5
233251414
Unavailable
35
Front Shock | X, Highmark X, HM Xtreme
505071135
Unavailable
Front Shock | X Europe
505071398
Unavailable
36
Spring | X, Highmark X, HM Xtreme
505070760
Unavailable
Spring | X, Highmark X, HM Xtreme
505070760
Unavailable
38
FRONT SHOCK - Call your local BRP dealership | Adrenaline, Sport, Highmark, Adrenaline Europe
505071206
Unavailable
39
Adjustment Cam
505073625
Unavailable
40
Spring
505070762
Unavailable
41
Spring Guide
503187500
Unavailable
44
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
45
Washer
732900049
Unavailable
47
Upper Arm
505071244
Unavailable
49
Hex. Flange Elastic Nut M12
250000047
Unavailable
51
Washer
503189276
Unavailable
52
Cotter Pin
211400017
Unavailable
53
Hex. Castellated Nut M12
232221414
Unavailable
56
Cone Screw M10 X 75
250000114
Unavailable
57
Hex. Screw M10 X 70
207007044
Unavailable
59
Bushing
505070567
Unavailable
Aluminium Bushing
505070960
Unavailable
60
Arm Bushing
505070566
Unavailable
62
Washer
503189564
Unavailable
63
R.A.S. Suspension Decal
516001704
Unavailable
64
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
