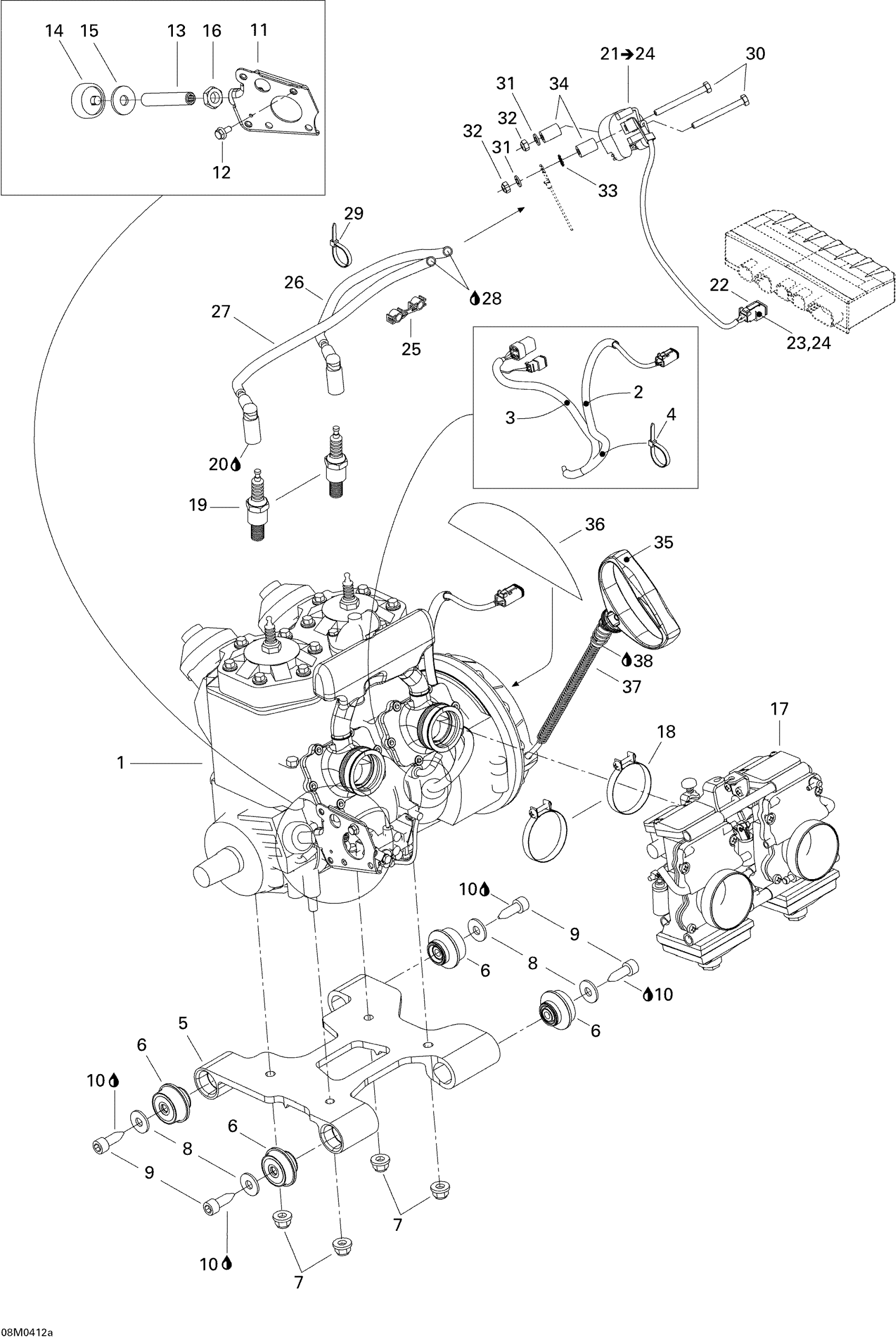

Ski-Doo Summit 600 HO, 2004 Engine 1 Diagram

#

Description
Price

1

Engine 593 HO, Rer | 600 HO (RER)

400509748

Unavailable

Engine 593 HO, Rer | 600 H.O. (RER)

400509756

Unavailable

Engine 793 HO | 800 H.O. (Standard)

400702623

Unavailable

Engine 793 HO, Rer | 800 H.O. (RER)

400702624

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

Unavailable

3

Tubing 10 MM 1000MM Long

219704407

Unavailable

4

Tie Wrap 142 mm

293750002

Unavailable

5

Engine Support

512059754

Unavailable

6

Rubber Mount

512059691

$44.58

7

Hex. Flange Elastic Nut M10

233201414

$1.26

8

Flat Washer M10 | 4X4

250200014

$1.17

9

Screw M10 X 30

250000094

$23.05

10

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

11

PLATE - Call your local BRP dealership

512059840

Unavailable

12

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

13

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

14

STOPPER - Call your local BRP dealership

512059610

Unavailable

15

WASHER - Call your local BRP dealership

512059057

Unavailable

16

Hex. Jam Nut M14

232170411

Unavailable

17

Carburetor Kit Tm40-B295 | 800 H.O. With DPM

403138762

Unavailable

Carburetor Kit Tm40-B301 | 800 H.O. Without DPM

403138763

Unavailable

CARBURETOR KIT TM40-B298 - Call your local BRP dealership | 600 H.O. With DPM

403138764

Unavailable

18

Gemi Clamp

512059835

Unavailable

19

Spark Plug NGK BR9ECS-5

512059552

$9.70

20

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

21

IGNITION COIL - Call your local BRP dealership | Includes 23 to 26 / 500 SS & 600 H.O.

512059564

Unavailable

22

Female Terminal Housing, 2 Circuits

515175670

Unavailable

23

Female Lock, 2 Circuits

515175707

Unavailable

24

Female Terminal

278000632

Unavailable

25

Plastic Clip, Spark Plug Wire

410914600

Unavailable

26

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

Unavailable

27

Cable Ass’y, 375 mm

512059696

Unavailable

28

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

29

Tie-Rap 180 mm

414115200

$0.09

30

Hex. Screw M6 X 60

207066044

$0.56

31

Flat Washer 6 mm

234061410

Unavailable

32

Elastic Stop Nut M6

232561414

Unavailable

33

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

34

Spacer

517203200

Unavailable

35

Starter Grip

572084400

Unavailable

36

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

37

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

38

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable
