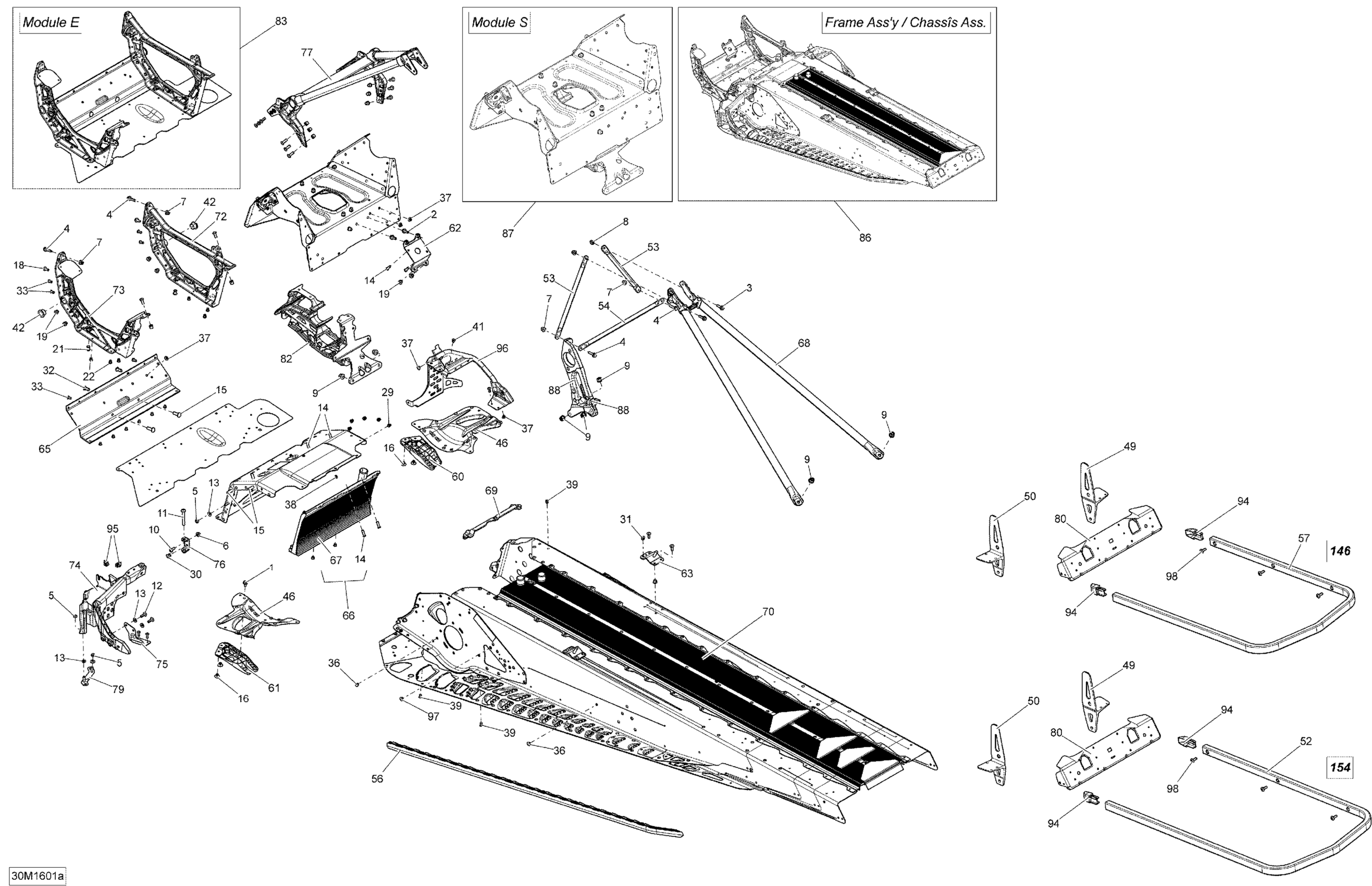

Ski-Doo SUMMIT 600 CARB 000CYGA00 Frame - 600 CARB Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

2

Hex. Flange Screw M6 X 16

207661644

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

Unavailable

4

Hex. Flange Screw M6 X 25

207662544

Unavailable

5

Elastic Stop Nut M6

232561414

Unavailable

6

Hex. Flange Nut M6

233061414

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

8

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

9

Hex. Flange Elastic Nut M8

233281414

Unavailable

10

Tork Screw M6 X 16

250000534

Unavailable

11

Torx Screw M8 X 55

250000535

Unavailable

12

Tork Screw M6 X 18

250000536

Unavailable

13

Flat Washer

250200039

Unavailable

14

Clinch Stud M6 X 20

250300027

$1.92

15

Clinch Stud

250300038

Unavailable

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

18

Hex. Flange Screw M6 X 16

210261650

$1.22

19

Hemlock Rivet, 6.5 mm

293150119

$4.00

21

Hemlock Rivet 6.5 mm

293150120

$7.23

22

Stavex Rivet

293150144

Unavailable

29

Henrob Rivet

293150146

Unavailable

30

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

31

Hemlock Rivet, 6.4 mm

293150174

$6.43

32

Monobolt Rivet 6.4

293150182

$2.91

33

Monobolt Rivet, 4.8 mm

293150191

Unavailable

36

Full Moon Dart 8 mm

293730041

$2.12

37

Full Moon Dart 5 mm

293730042

Unavailable

37

Black Dart 5 mm

293730053

Unavailable

38

Pop Rivet 3/16"

390402400

Unavailable

39

Avex Rivet

390909100

$0.29

41

Avex Rivet

390909200

Unavailable

42

Leg Cushion

505073317

Unavailable

46

RH Reinforcement

518324874

Unavailable

46

LH Reinforcement

518324875

Unavailable

49

RH Suspension Bracket

518324976

$39.97

50

LH Suspension Bracket

518324977

$40.74

52

Clear Rear Bumper, 154" | 800R PTEK 154"

518324982

Unavailable

53

Upper Lateral Column Support

518325114

Unavailable

54

Center Column Support

518325115

Unavailable

56

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

56

LH Roller | Includes 10bd to 10be

518325160

Unavailable

57

Rear Bumper, 146"

518325374

$109.97

60

RH Deflector, Black Polypropylene

518325782

Unavailable

61

LH Deflector, Black Polypropylene

518325783

Unavailable

62

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

63

RH Rear Base

518325973

Unavailable

63

LH Rear Base | Includes 10v to 10x

518325974

Unavailable

65

Front Member

518326198

$59.97

66

Front Radiator | Includes 10b to 10b2

518326485

Unavailable

67

Front Radiator | Includes 10b to 10b2

518326485

Unavailable

68

Rear Member

518326559

Unavailable

69

Seal

518326656

Unavailable

70

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$699.97

70

REAR RADIATOR ASS'Y, 146 - Call your local BRP dealership | Includes 10bk to 10bp

518326728

Unavailable

72

RH Member

518326795

Unavailable

73

LH Member

518326796

$210.74

74

LH Stirup

518326820

Unavailable

75

Support

518326960

Unavailable

76

U-Attach

518326961

Unavailable

77

Front Member

518326970

$276.12

79

Attach | Includes 10n to 10p

518326986

Unavailable

80

Rear Cap

518327105

Unavailable

82

Front Suspension Support

518327487

Unavailable

83

E Module | Includes 10n to 10at

518327567

Unavailable

86

FRAME ASS'Y - Call your local BRP dealership | Includes 10 to 10br This part replaces 415130277.

415130016

Unavailable

86

FRAME ASS'Y - Call your local BRP dealership | 800R PTEK 154"

415130017

Unavailable

87

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

88

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

88

Pulley Support

518328346

Unavailable

94

Full Moon Cap

520000567

Unavailable

95

Panel Nut M5 X 0.8

250000958

Unavailable

96

RH Stirup | Includes 10aa to 10ab

518328938

Unavailable

97

Full Moon Dart 10 mm

293730059

$4.42

98

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable
