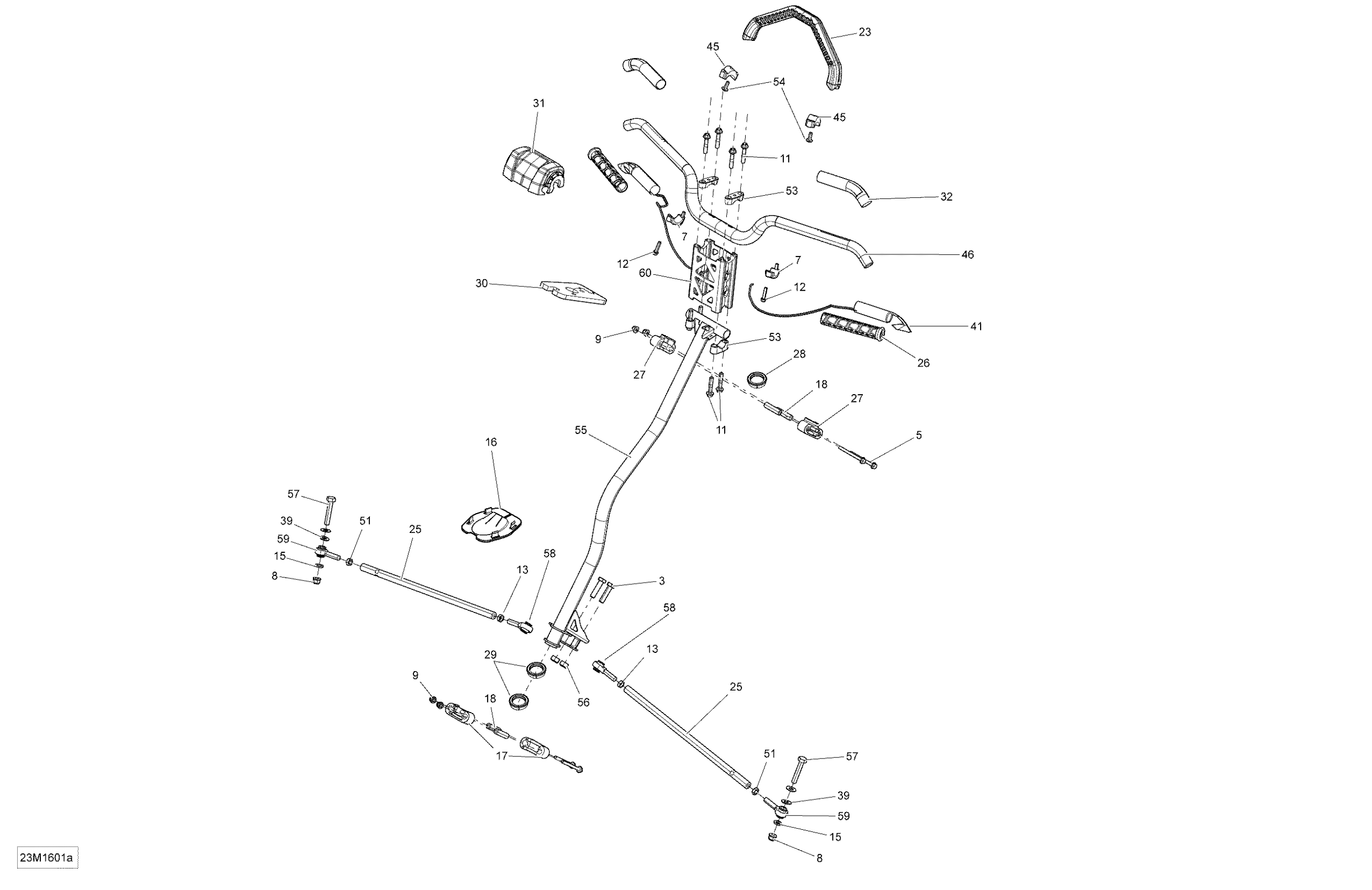

Ski-Doo SUMMIT 600 CARB 000CYGA00 Steering - 600 CARB Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

5

Hex. Flange Screw M6 X 70

207667056

$3.61

7

Clamps | Includes 75a to 75b

719000049

$23.05

8

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

9

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

11

Hex. Flange Screw M8 X 40

250000352

Unavailable

12

Hex. Flange Screw M6 X 25

250000447

$2.06

13

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

15

Washer

503192496

Unavailable

16

Plate

506152163

$10.23

17

Lower Half-Housing

506152217

$5.57

18

Housing Bushing

506152297

Unavailable

23

Moulding Strap

506152460

$69.99

25

Tie-Rod

506152482

Unavailable

26

Grip

506152486

$14.71

27

Upper Half-Housing

506152508

$7.40

28

Upper Anti-Vibration Gasket

506152509

$4.52

29

Lower Vibration Ring

506152518

Unavailable

30

Bushing

506152521

$13.60

31

Deep Black, Steering Pad

506152541

$42.28

32

Thermal Insulation

506153176

Unavailable

39

Washer

506152582

Unavailable

41

Heating Element 28 WATT This part replaces 506152602.

506152603

$43.82

45

Black Support Plate

506152703

Unavailable

46

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

51

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

53

Steering Support | Includes 40 to 40a

506152751

$10.09

54

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

55

Steering Column

506152962

$189.20

56

Elastic Locking Nut M10

233601466

Unavailable

57

Hex Screw M10 X 1.5 X 55

207005554

$6.18

58

RH Threaded Ball Joint

506152019

$39.97

59

LH Thread Ball Joint

506152081

$39.97

60

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

Unavailable
