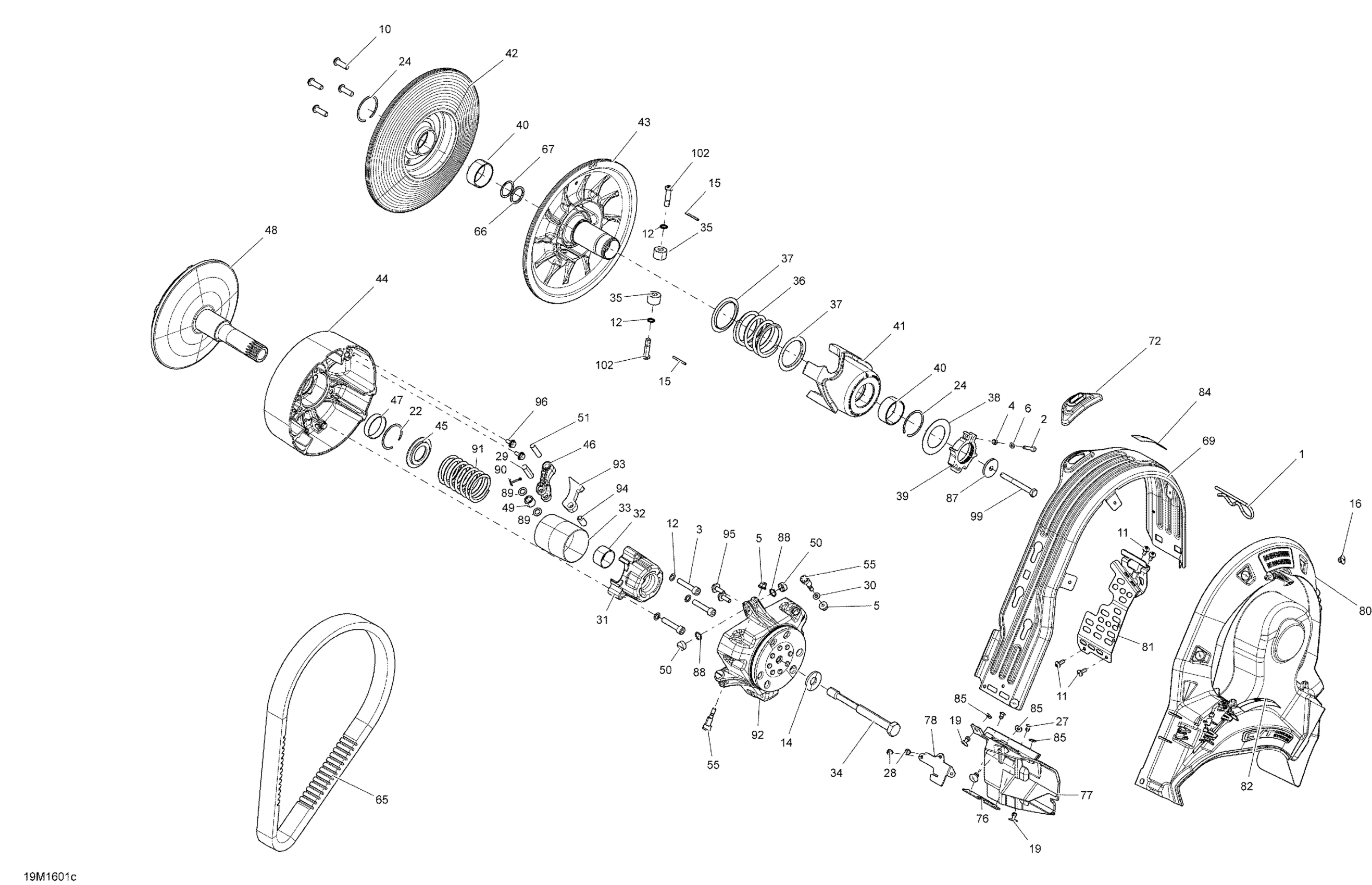

Ski-Doo SUMMIT 600 CARB 000CYGA00 Pulley System - 600 CARB Diagram

#

Description
Price

1

Hair Pin

114045200

Unavailable

2

Socket Screw M5 X 25

205052544

$1.34

3

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

4

Elastic Stop Nut M5

232551414

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

6

Flat Washer M5

234051410

Unavailable

10

Button Head Torx Screw M8 X 25 S.Gr

250000757

Unavailable

11

Torx Screw M5 X 14

250000742

$1.20

12

Lock Washer 8 mm

250200009

Unavailable

14

Conical Spring Washer M14

250200144

Unavailable

15

Spring Pin M3 X 30

250400063

$1.74

16

Pop Rivet 3/16"

293150103

Unavailable

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

22

Circlip

293370037

$3.02

24

Circlip

293370049

Unavailable

27

Avex Rivet

390909100

$0.29

28

Avex Rivet

390909200

Unavailable

29

Pin

417004308

Unavailable

30

Washer

417005600

$3.86

31

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

32

Bushing

417009204

$16.12

33

Guard

417009205

$16.89

34

Drive Pulley Bolt

417120000

$63.82

35

Pulley Roller

417127016

Unavailable

36

Black, Return Spring

417127039

Unavailable

37

Swivel Abutment

417127116

Unavailable

38

Washer

417127155

Unavailable

39

Calibration Ass'y

415129604

Unavailable

40

Bushing ID 41mm OD 45mm X 19mm L

417127318

Unavailable

41

Cam Ass'y | Includes 100m to 100q

417127371

Unavailable

42

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

43

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$336.89

44

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

45

Spring Seat

417222312

$8.28

46

Lever | Includes 10f to 10g

417222671

$32.28

47

Bushing

417222758

$20.74

48

Fixed Flange Ass'y

417222937

$226.12

49

Roller

417222947

$19.97

50

Slider Shoe

417222992

Unavailable

51

Lever Axle

417223164

$4.25

55

Calibration Screw

417223501

$27.66

65

Drive Belt

417300586

$154.58

66

Spacer

417300252

$5.17

67

Spacer

417300265

$2.12

69

Belt Guard

417300357

$86.12

72

Guide

417300381

$9.23

76

Reinforcement Plate

417300421

$4.14

77

Front Support

417300422

Unavailable

78

Front Bracket

417300423

$5.17

80

CVT Air Duct

417300439

Unavailable

81

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

82

Decal English

516005503

Unavailable

84

Safety Belt Guard Decal

516005509

Unavailable

85

Flat Washer

517225900

$0.17

87

Strength Washer

517302322

$11.09

88

O-Ring

732401030

$0.95

89

Stopper Washer

417004302

$15.99

90

Cotter Pin

250400060

$1.60

91

Spring (Blue/Pink)

414916300

Unavailable

92

Governor Cup Ass'y

417223669

$456.89

93

Ramp 417

417222552

Unavailable

94

Spring Pin M10 X 22

250400050

$2.38

95

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

96

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

99

Hex. Cap Screw M8 X 75

207287544

$4.24

102

Pivot Stud

417127294

Unavailable
