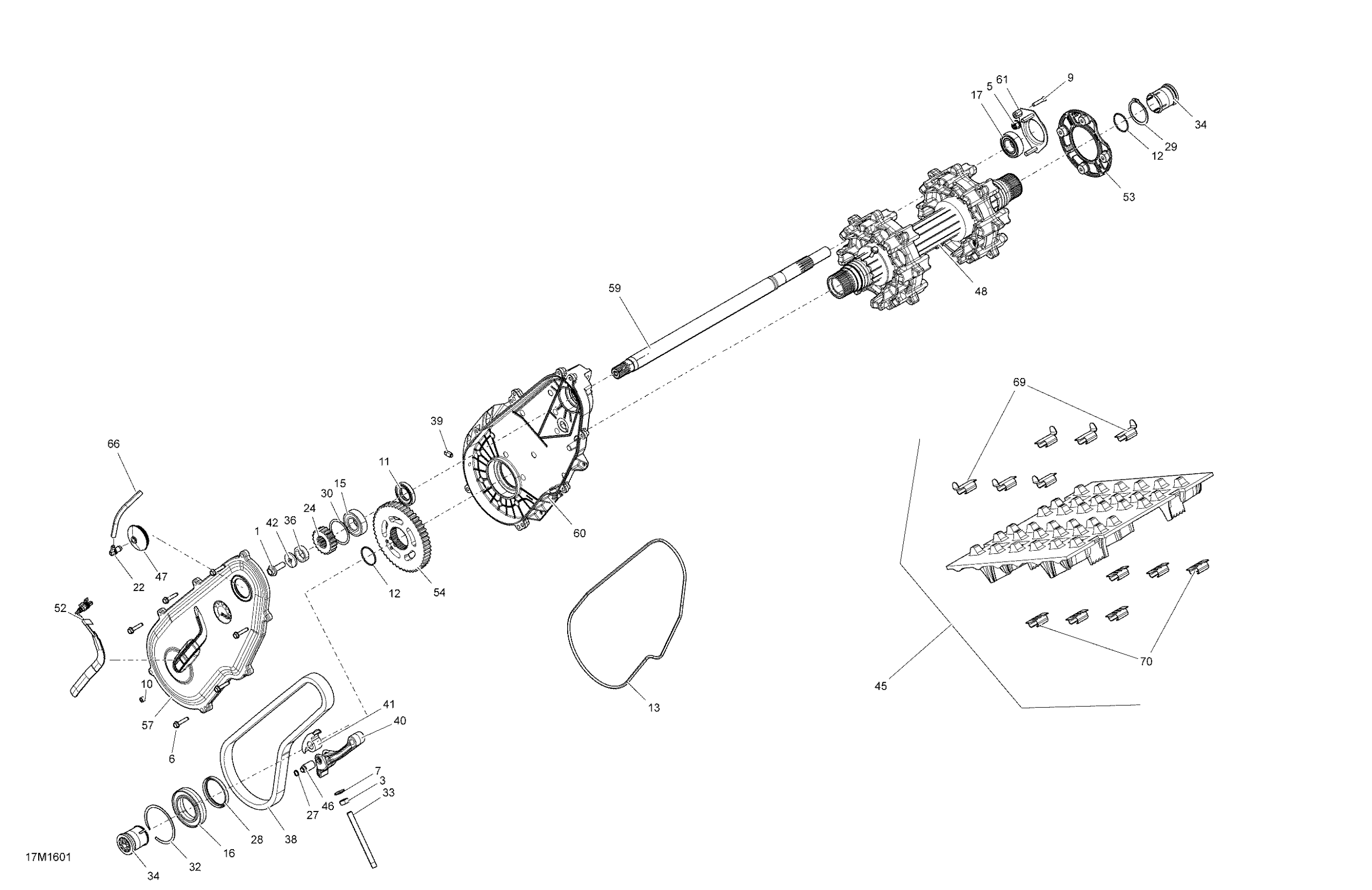

Ski-Doo SUMMIT 600 CARB 000CYGA00 Drive - 600 CARB Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

Unavailable

3

Hex. Nut M10 X 1.5

232006414

$1.11

5

Hex. Flange Elastic Nut M8

233281414

Unavailable

6

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

6

Hex. Flange Screw M6 X 1.0 X 30

250000360

$1.74

7

Bonded Washer

250200100

$1.74

9

Clinch Stud M6 X 30

250300031

$1.92

10

Hex. Countersunk Drain Plug

250500013

Unavailable

11

Oil Seal

293200168

Unavailable

12

O-Ring

293300122

$2.06

14

Tight Seal | Package X-T3 174, SP-T3 174

293300177

$12.52

15

Ball Bearing

293350115

Unavailable

16

Ball Bearing

293350059

Unavailable

17

Ball Bearing

293350074

Unavailable

22

Male Connector

414580700

Unavailable

24

Sprocket, 19 Teeth

504152031

$102.28

27

Circlip

504152282

$3.11

28

Oil Seal

293200159

Unavailable

29

Circlip

504152572

Unavailable

30

Circlip

504152576

Unavailable

32

Circlip

504152582

Unavailable

33

Adjustment Screw

504152602

$9.62

34

Magnetic Cap

504152619

$23.05

36

Shim

504152628

$8.40

38

Drive Chain, 104 Links

504152629

Unavailable

39

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.95

40

Tensioner chain

504153429

$13.77

41

Slider Chain

504152739

$67.66

42

Spring Washer M10

504152784

Unavailable

45

Track Ass'y 16" X 146" X 2.2"PSH | Includes 3200 to 3200b

504153222

Unavailable

46

Tensioner Axle

504152841

$14.65

47

Cap

504152860

Unavailable

48

Drive Axle Ass'y

504152869

Unavailable

52

Rotation Sensor

504152896

$35.35

53

Retaining Ring

504153886

Unavailable

57

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$324.58

59

Countershaft

504153000

$572.28

60

Chaincase

504153181

$324.58

61

Bearing Housing

504153185

$28.43

65

Rotation Sensor | Package X-T3 174, SP-T3 174

504153275

$35.35

66

Polyurethane Hose 10000Mm Long

219704410

Unavailable

68

Plate | Not Shown

518325816

$73.82

69

Track Guide | Track Width 16''

415129528

$3.12

70

Cleat

504152651

Unavailable
