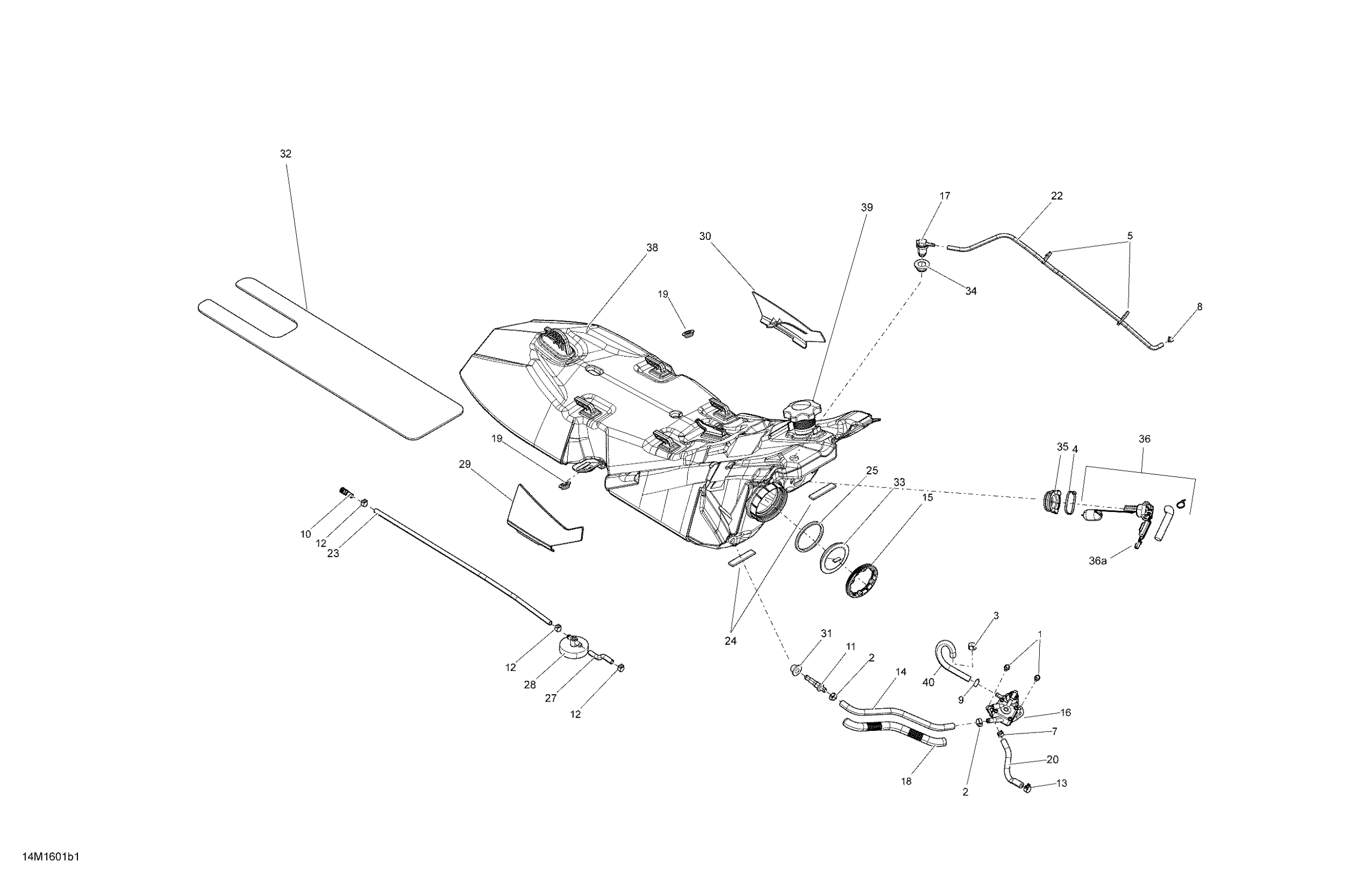

Ski-Doo SUMMIT 600 CARB 000CYGA00 Fuel - 600 CARB Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 10

210261040

Unavailable

2

Crimp Clamp

293650053

Unavailable

3

Oetiker Clamp

293650125

$2.69

4

Tie Wrap 368 mm

293750008

$0.85

5

Tie-Rap 180 mm

414115200

$0.09

7

Spring Clamp

414415200

$0.83

8

Spring Clamp

414554800

$0.83

9

Spring Clamp

414655700

Unavailable

10

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

11

Male Connector

414872700

Unavailable

12

Norma Spring Clamp

513033010

Unavailable

13

Universal Spring Clamp

513033029

Unavailable

14

Formed Hose

513033165

Unavailable

15

Ring

513033180

$17.66

16

Fuel Pump

513033184

Unavailable

17

Check Valve

513033842

$33.82

18

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

19

Shoulder Bushing

513033326

$12.62

20

Formed Hose

513033327

Unavailable

22

Polyurethane Hose 10000Mm Long

219704410

Unavailable

23

Polyurethane Hose 1000Mm Long

219704391

Unavailable

24

Gasket

513033813

$3.29

25

Gasket

513033334

$23.05

27

Formed Hose

513033352

Unavailable

28

Multi-Point Pick-Up

513033353

Unavailable

29

RH Cap

513033418

Unavailable

30

LH Cap

513033419

Unavailable

31

Grommet

513033435

Unavailable

32

Insulating Foam

513033588

$12.62

33

Cap

513033591

Unavailable

34

Grommet

513033596

$18.43

35

Grommet

513033606

Unavailable

36

Sensor Level Fuel | Includes 40 to 40a

513033958

Unavailable

36a

Fuse, 0.5 Ampère

710001995

Unavailable

38

Fuel Tank

513033696

Unavailable

39

Fuel Tank Cap

513033969

$25.35

40

Formed Hose

513033343

Unavailable
