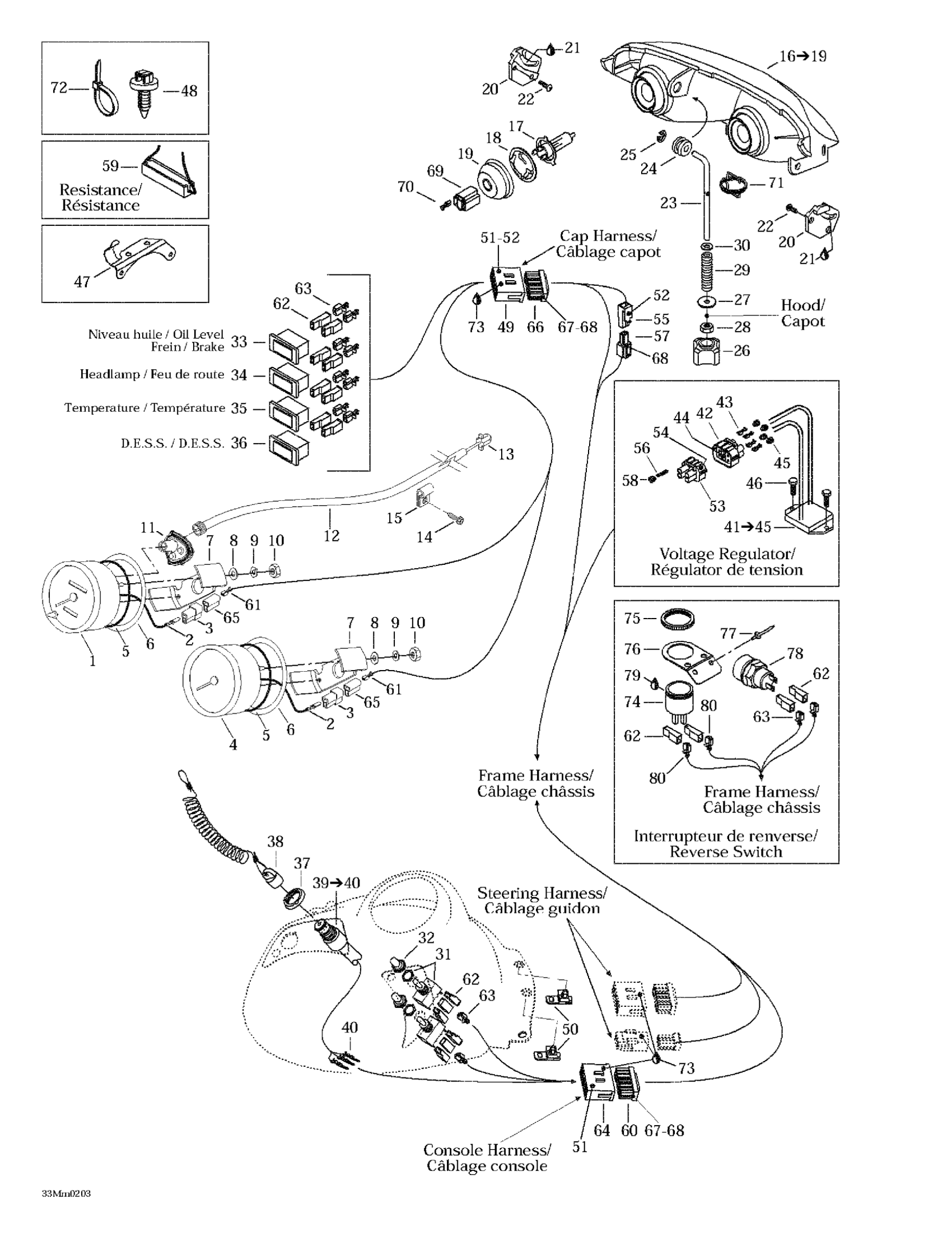

Ski-Doo Summit 600/700/800, 2002 Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

Tachometer

515175341

Unavailable

5

O-Ring

414807100

Unavailable

6

Washer

517258500

Unavailable

7

Case Holder

414806500

Unavailable

8

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

9

Lock Washer

414806700

Unavailable

10

Nut

414806900

Unavailable

11

Drive Angle

515175400

Unavailable

12

Speedometer Cable

415101500

Unavailable

13

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Open Clamp

414176000

$1.81

16

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$279.82

17

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

18

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

19

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

20

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

21

Grease Tube Lmz, 400 G

413707500

Unavailable

22

Headlamp Screw

732601315

Unavailable

23

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

24

Grommet - Call your local BRP dealership

415100800

Unavailable

25

Push Nut

732610072

$1.97

26

Handle - Call your local BRP dealership

515175548

Unavailable

27

Washer

224060251

$0.55

28

Elastic Stop Nut M6

232561414

$1.78

29

SPRING - Call your local BRP dealership

415100600

Unavailable

30

Flat Washer 6 mm

234061410

$1.19

31

Switch (Heating Grip) | FREERIDE

410107300

$33.55

32

Switch Cover

515175281

$14.58

33

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

34

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

35

PILOT LAMP - Call your local BRP dealership

515175727

Unavailable

36

Pilot Lamp (Reverse/D.E.S.S.)

515175729

Unavailable

Pilot Lamp (DESS)

515175730

Unavailable

37

Safety Nut (DESS Switch)

278002963

$3.12

38

DESS

515178284

$79.07

39

DESS SWITCH - Call your local BRP dealership

515175145

Unavailable

40

Male Terminal

515175232

$1.45

41

Voltage Regulator | Includes 48 - 52.

515175491

Unavailable

42

Female Terminal Housing (4 circuits)

409208000

Unavailable

43

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

44

Female Lock

409013400

Unavailable

45

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

46

Hex. Flange Screw M6 X 16

210261650

$1.40

47

Cable Support

515175254

Unavailable

48

Mount Dart

293730040

$0.99

49

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

50

Housing Support

515175283

$8.18

51

Male Terminal

515175232

$1.45

52

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

53

Male Terminal Housing (4 circuits)

409207700

Unavailable

54

Male Lock

409013100

Unavailable

55

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

56

Male Terminal

409010900

Unavailable

57

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

58

Seal

278001223

Unavailable

59

Resistance

515175241

$16.39

60

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

61

Female Terminal

561503100

Unavailable

62

Female Terminal Housing, 1 Circuit

409010400

$7.25

63

Female Terminal

409010100

$5.30

64

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

65

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

66

Female Terminal Housing, 13 Circuits

515175350

$12.49

67

Female Terminal

515175231

$4.00

68

Female Terminal

515175282

$6.24

69

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

70

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

71

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

72

Tie Wrap 94 mm | 4X4

293750001

$0.96

Tie Wrap 142 mm

293750002

$1.01

Tie-Rap 173 mm

293750009

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie-Rap 180 mm

414115200

$0.10

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

73

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

74

HORN - Call your local BRP dealership

515176035

Unavailable

75

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

76

PLATE - Call your local BRP dealership

515175688

Unavailable

77

Pop Rivet 3/16"

390402200

$0.30

78

Push Button

415130372

$123.10

79

Silicone Sealant 51388, 300 ml

296000309

$36.99

80

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

81

Frame Harness (Not Shown)

515175635

Unavailable

82

Console Harness (Not Shown)

515175147

Unavailable

83

Hood Harness (Not Shown)

515175636

Unavailable
