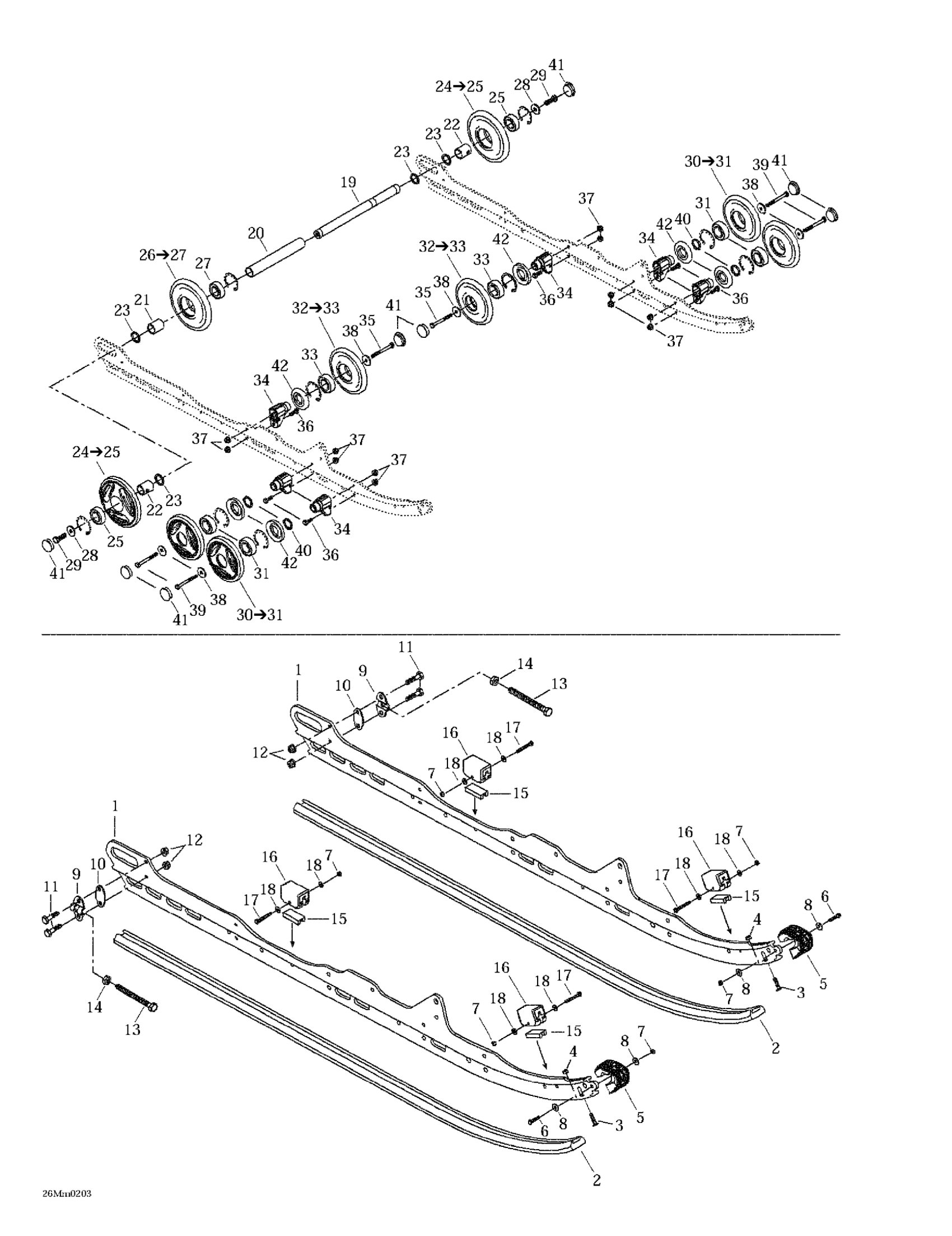

Ski-Doo Summit 600/700/800, 2002 Rear Suspension Diagram

#

Description
Price

1

Runner, 136”

503189582

Unavailable

Runner (144") | HIGHMARK & HIGHMARK X Summit 700. Summit 800 HO.

503189561

Unavailable

2

Slide Shoe

605355362

$26.84

SHOE - Call your local BRP dealership | MX Z 600. MX Z 800.

503189869

Unavailable

Rail | HIGHMARK (BLACK B-160) Summit 700.. HIGHMARK X (BLACK B-160) Summit 800 HO.

503189606

Unavailable

Rail | HIGHMARK (YELLOW B-190) Summit 700.. HIGHMARK X (YELLOW B-190) Summit 800 HO.

503189866

$32.81

3

Phillips Screw M6 X 25

208562560

$2.21

4

Elastic Stop Nut M6

232561414

$1.78

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.82

8

Washer | DS 650 X

391301600

$0.46

9

Tensioner

503155300

Unavailable

10

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

11

Hex. Screw M6 X 30

207063044

$1.12

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.63

15

Reinforcement Stopper

572084800

$5.09

16

Rubber Stopper

570063000

Unavailable

17

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

18

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

19

Rear Axle

503167900

$125.34

20

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

21

Inner Spacer

503182900

$9.88

22

Outer Spacer

503189809

$14.90

23

Washer

503180400

$3.27

24

Wheel 165 mm Yellow

503190817

$48.48

25

Ball Bearing

293350115

$10.82

26

Wheel 165" | Includes 670 to 670b

503194127

$48.48

27

Ball Bearing

293350115

$10.82

28

Washer

503183300

$5.51

29

Hex. Screw With Nylon

250000019

$1.63

30

WHEEL 139 MM - Call your local BRP dealership

503190815

Unavailable

31

Ball Bearing

293350115

$10.82

32

Wheel 139 mm Ass'y

503190798

$31.31

33

Ball Bearing

293350115

$10.82

34

SUPPORT - Call your local BRP dealership

503190389

Unavailable

35

Hex. Screw M8 X 80

207088044

$1.54

36

Hex. Screw M8 X 25

207182544

$0.85

37

Hex. Flange Elastic Nut M8

233281414

$1.31

38

Washer

503183100

$2.99

39

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

40

WASHER - Call your local BRP dealership

503173700

Unavailable

41

Wheel Cap

570063600

$3.18

42

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable
