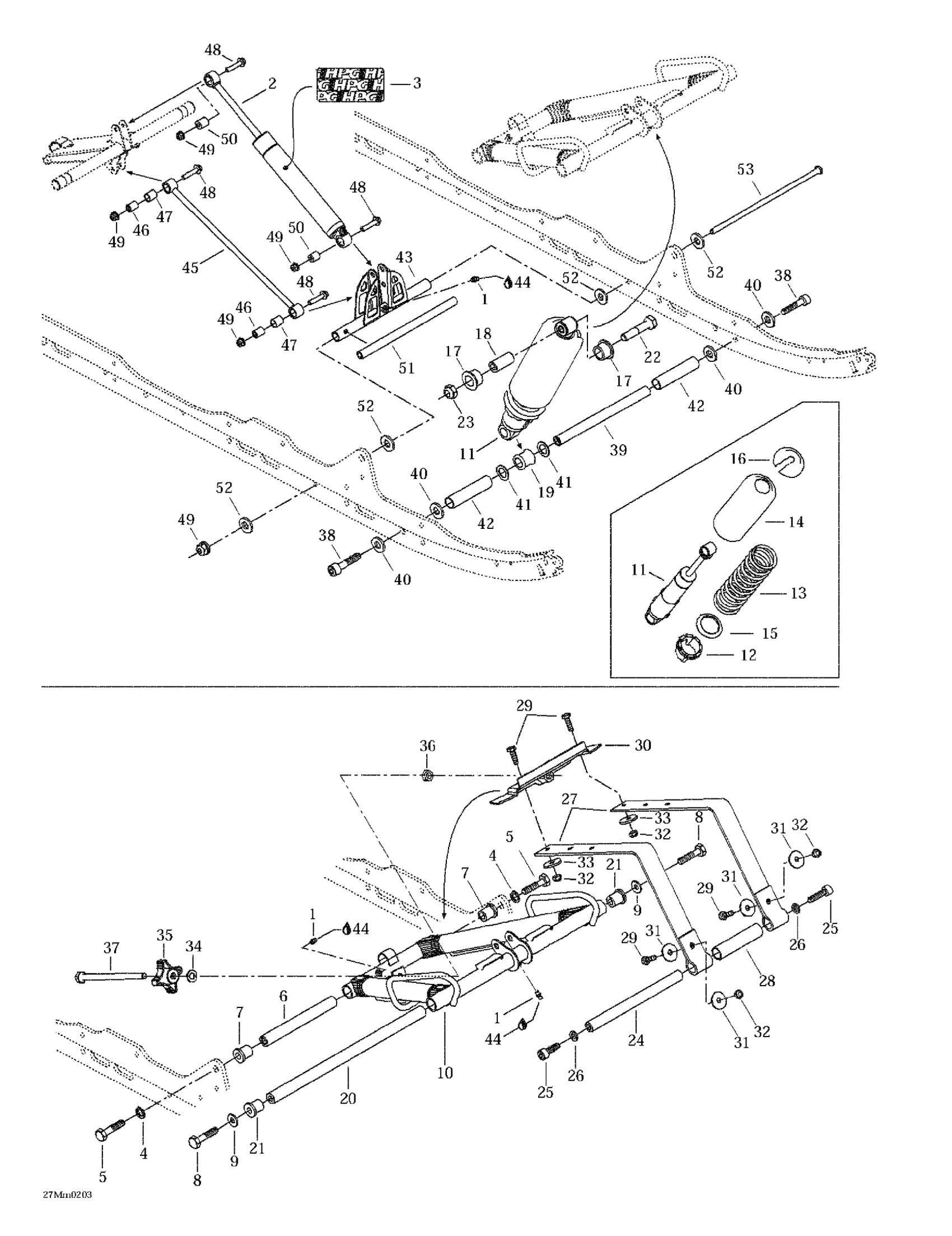

Ski-Doo Summit 600/700/800, 2002 Front Arm And Shock Diagram

#

Description
Price

1

Grease Fitting

408200700

Unavailable

2

Rear shock | ADRENALINE & HIGHMARK

503189897

Unavailable

Rear Shock (X, HMX) | Summit 800.

503189895

Unavailable

Rear Shock | (Summit 600 R (Sport)) (Europe) Summit 600.

503189669

Unavailable

Rear Shock | (Summit 800 R (X)) (Europe) Summit 800.

503189896

Unavailable

3

HPG Decal (Europe)

516000182

Unavailable

4

Washer

503189276

Unavailable

5

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

6

SHAFT - Call your local BRP dealership

503189313

Unavailable

7

CUSHION - Call your local BRP dealership

503189323

Unavailable

8

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

9

Washer

732900049

Unavailable

10

Front arm

503189797

Unavailable

11

Center shock | ADRENALINE & HIGHMARK. ADRENALINE (EUROPE) Summit 600.

503189893

Unavailable

Center Shock (X, HMX) | Summit 800.

503189891

Unavailable

Center Shock (Europe) | (Summit 600 R (Sport)) (Europe) Summit 600.

503189178

Unavailable

Center Shock | (Summit 800 R (X)) (Europe) Summit 800.

503189892

Unavailable

12

Adjustment Cam

505073625

Unavailable

Adjustment Cam

505073625

Unavailable

Adjustment Cam

505073625

Unavailable

Adjustment Cam

505073625

Unavailable

13

Spring

415070500

Unavailable

Spring

415070500

Unavailable

SPRING - Call your local BRP dealership

503189325

Unavailable

Black, Spring

503189686

$66.89

14

Protector

503193663

Unavailable

15

Spring Guide

517187500

Unavailable

Spring Guide

503191872

Unavailable

Spring Guide

503187500

Unavailable

Spring Guide | (Summit 800 R (X)) (Europe) Summit 800.

503184300

Unavailable

16

Spring Stopper

706200881

$10.30

17

Urethane Bushing

503189117

Unavailable

18

Bushing | Includes 240d to 240d1

503189282

Unavailable

19

Bushing

503189271

Unavailable

20

SHAFT - Call your local BRP dealership

503190387

Unavailable

21

Bushing

503189324

$11.17

22

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

23

Elastic Locking Nut M10 X 1.5

233601416

$1.68

24

AXLE - Call your local BRP dealership

503189562

Unavailable

25

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

26

Washer

503189564

Unavailable

27

Stopper strap

503189450

Unavailable

28

SPACER - Call your local BRP dealership

503189936

Unavailable

29

Hex. Screw M8 X 25

207182544

Unavailable

30

Belt Bracket

503189806

Unavailable

31

Flat Washer

224081301

$0.86

32

Hex. Elastic Stop Nut M8

232581414

Unavailable

33

Washer

503183100

$3.08

34

Washer

503183800

$3.20

35

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

36

Hex. Nut M10 X 1.5

232006414

$1.11

37

BOLT, LONG - Call your local BRP dealership

250000062

Unavailable

38

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

39

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

40

Washer

503189276

Unavailable

41

Washer

503189273

Unavailable

42

SPACER - Call your local BRP dealership

503189274

Unavailable

43

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

44

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

45

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable

46

BUSHING - Call your local BRP dealership

503189133

Unavailable

47

CUSHION - Call your local BRP dealership

503189625

Unavailable

48

Hex. Flange Screw M8 X 40

207684044

Unavailable

49

Elastic Flange Nut M8

250100025

Unavailable

50

Bushing

414936000

Unavailable

51

Pivot Arm Axle

503189156

Unavailable

52

Washer

503189157

$3.20

53

Bolt M8 X 248mm

503192440

Unavailable
