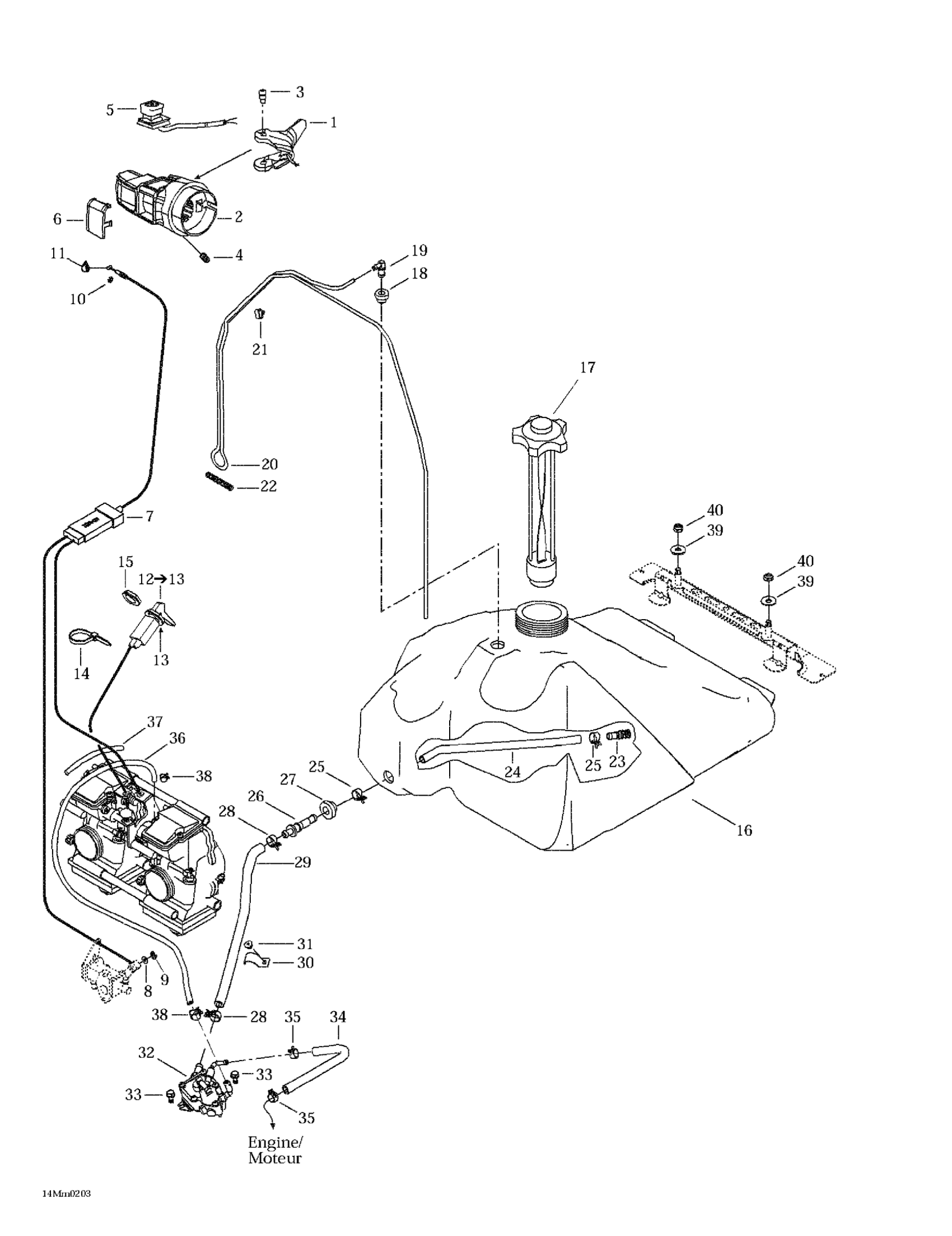

Ski-Doo Summit 600/700/800, 2002 Fuel System Diagram

#

Description
Price

1

Throttle Handle

512059481

$70.12

Throttle Handle

512059481

$70.12

2

THROTTLE HOUSING - Call your local BRP dealership

512059763

Unavailable

3

Flange Screw

732601143

$3.90

4

Socket Set Screw M8 X 10

414440800

$3.88

5

Kill Switch

515175410

Unavailable

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

6

Switch Cover

572100901

$14.10

7

THROTTLE CABLE - Call your local BRP dealership | Grand Touring 500. Grand Touring 600. Grand Touring 700.

512059373

Unavailable

8

Flat Washer 8 mm, Nylon

234081100

$1.15

9

Circlip

414753500

$0.67

10

Circlip

414274500

$0.85

11

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

12

CHOKE CABLE - Call your local BRP dealership | INCLUDES ITEMS 41 TO 42

512059110

Unavailable

13

Lock Washer, Interior Teeth

394103300

Unavailable

14

Tie-Rap 173 mm

293750009

$0.97

15

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

16

Fuel Tank

513032987

Unavailable

17

Fuel Tank Cap | Sport / Sport GT

513033020

$34.30

18

Grommet

513032908

$8.48

19

Male Connector

414814100

$2.12

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

21

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

22

SPRING - Call your local BRP dealership

414818200

Unavailable

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

24

Hose

415005700

$5.47

25

Norma Spring Clamp

513033010

$8.42

26

Male Connector

414872700

Unavailable

27

Grommet | Europe

707800347

$8.70

28

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

29

Formed Hose

513032903

$27.58

30

CLIP - Call your local BRP dealership

415018200

Unavailable

31

Pop Rivet 3/16"

390406500

$0.81

32

Fuel Pump | MANUAL STARTER

403901806

Unavailable

33

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

34

Hose

219704549

$46.24

35

Spring Clamp

414415200

$0.81

36

Formed Tube

513032986

Unavailable

37

Tubing 10 MM 1000MM Long

219704407

$2.52

38

Spring Clamp

414420700

$0.66

39

Flat Washer 8 mm

234082410

$1.27

40

Hex. Elastic Stop Nut M8

232581414

$0.54
