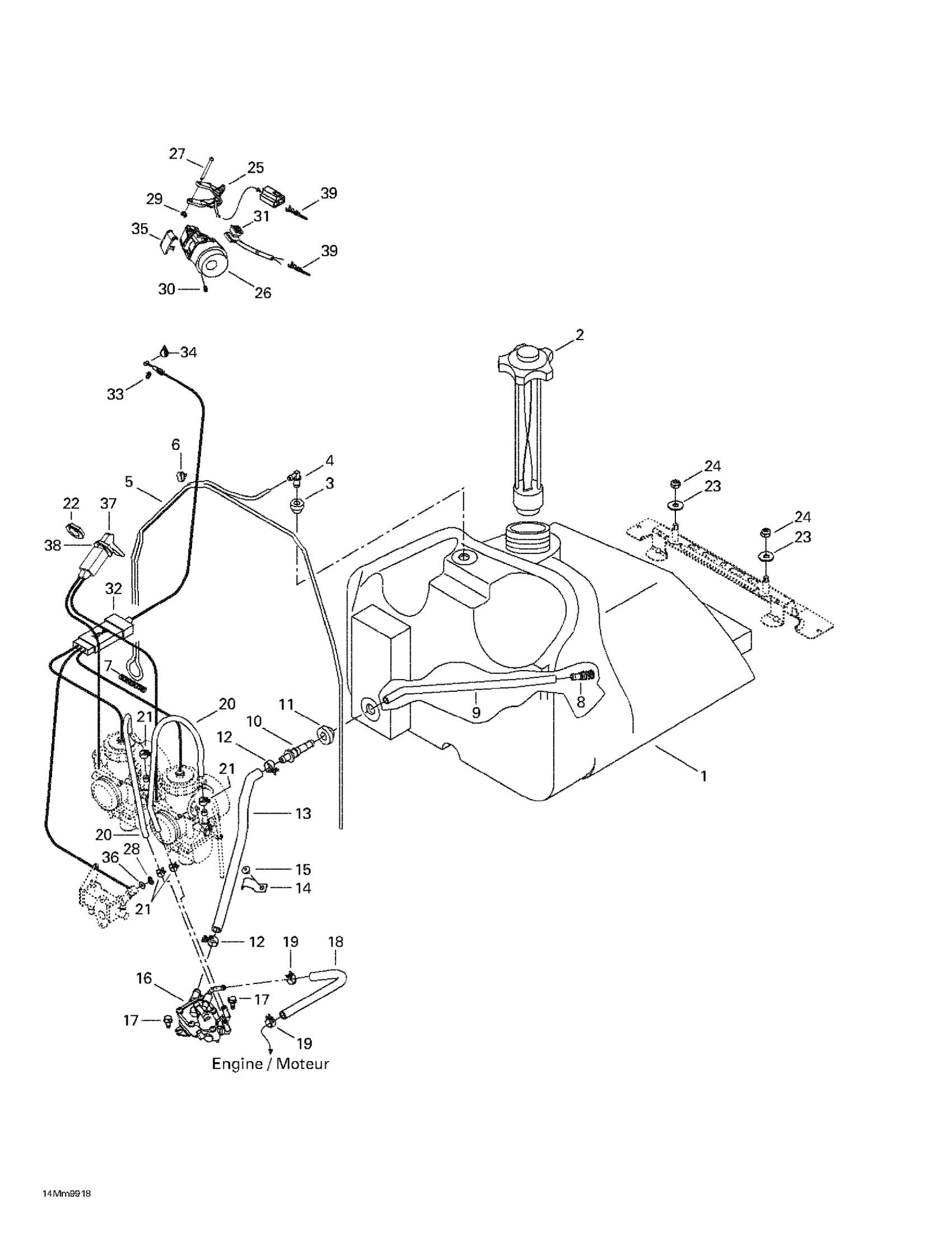

Ski-Doo Summit 600, 1999 Fuel System Diagram

#

Description
Price

1

Fuel Tank | MXZ 600.

513032964

Unavailable

2

Fuel Tank Cap | Sport / Sport GT

513033020

$34.30

3

Grommet

513032908

$8.48

4

Male Connector

414814100

$2.12

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

9

Hose

415005700

$5.47

10

Male Connector

414872700

Unavailable

11

Grommet | Europe

707800347

$8.70

12

Spring Clamp | MXZ 600.

513032954

Unavailable

13

Formed Hose

513032903

$27.58

14

CLIP - Call your local BRP dealership

415018200

Unavailable

15

Pop Rivet 3/16"

390406500

$0.81

16

Fuel Pump | MX-Z 500.

403901800

Unavailable

17

Hex. Screw M6 x 12

732601120

Unavailable

18

Hose

219704549

$46.24

19

Spring Clamp

414415200

$0.81

20

Tube

415117800

Unavailable

21

Spring Clamp

414420700

$0.66

22

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

23

Flat Washer 8 mm

234082410

$1.27

24

Hex. Elastic Stop Nut M8

232581414

$0.54

25

Handle Ass'y 40 mm

572101900

Unavailable

26

Throttle Handle Housing

572100900

Unavailable

27

Lever Pin

414438700

$10.81

28

Circlip

414753500

$0.67

29

Circlip | Model-RS

414439000

$4.01

30

Socket Set Screw M8 X 10

414440800

$3.88

31

Kill Switch

515175410

Unavailable

32

Throttle Cable

512058902

Unavailable

33

Circlip

414274500

$0.85

34

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

35

Switch Cover

572100901

$14.10

36

Flat Washer 8 mm, Nylon

234081100

$1.15

37

Choke Cable | Includes 38 - 39. MXZ 600.

512059093

Unavailable

38

Lock Washer, Interior Teeth

394103300

Unavailable

39

Male Terminal

515175232

$1.45
