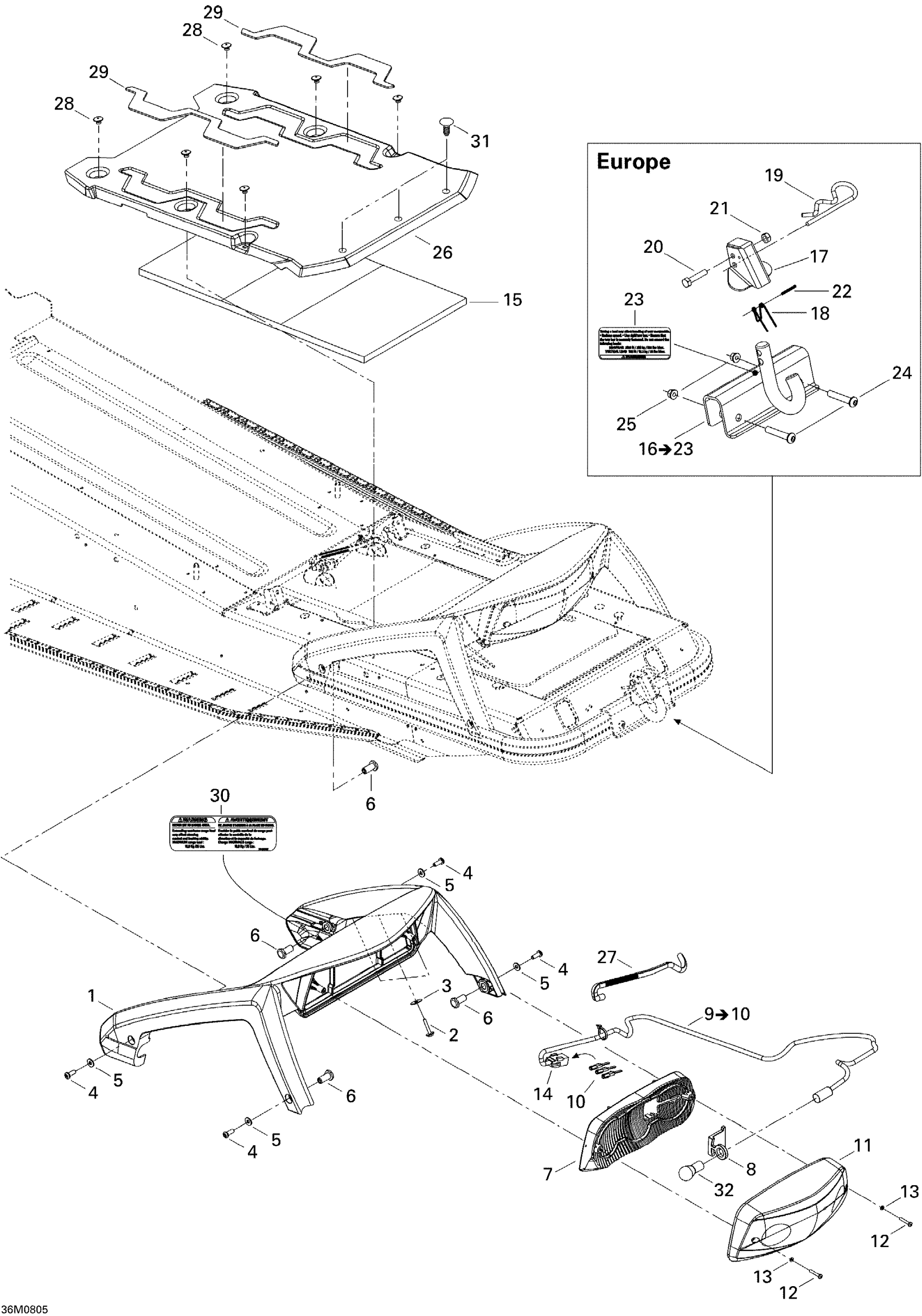

Ski-Doo Summit 550F, 2008 Luggage Rack Diagram
#
Description
Price
1
Luggage Rack
511000425
Unavailable
2
Self Tapping Screw #8 X 5/8
250000202
Unavailable
4
Torx Screw M6 X 20
250000722
Unavailable
5
Flat Washer
250200039
Unavailable
6
INSERT - Call your local BRP dealership
511000398
Unavailable
7
REFLECTOR - Call your local BRP dealership
510004442
Unavailable
8
BULB SUPPORT - Call your local BRP dealership
511000431
Unavailable
9
BULB SOCKET - Call your local BRP dealership | Includes 9 to 10
511000466
Unavailable
11
Lens
511000315
Unavailable
12
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership
209632580
Unavailable
13
Washer - Call your local BRP dealership
414516400
Unavailable
15
RADIATOR COVER SHIM - Call your local BRP dealership
511000364
Unavailable
16
HITCH ASS'Y - Call your local BRP dealership | Includes 17 to 23, Europe
511000509
Unavailable
17
PAWL - Call your local BRP dealership | Europe
511000514
Unavailable
18
SPRING - Call your local BRP dealership | Europe
517152800
Unavailable
19
Hair Pin
114045200
Unavailable
21
Elastic Stop Nut M6
232561414
Unavailable
22
SPRING PIN M3 X 24 - Call your local BRP dealership | Europe
732804000
Unavailable
23
WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership
516003037
Unavailable
25
Hex. Flange Elastic Nut M8
233281414
Unavailable
26
RADIATOR COVER - Call your local BRP dealership
511000436
Unavailable
28
Pop Rivet 3/16"
293150103
Unavailable
29
Carpet
511000396
Unavailable
30
WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership
516002960
Unavailable
31
Black, Dart
293730006
Unavailable
