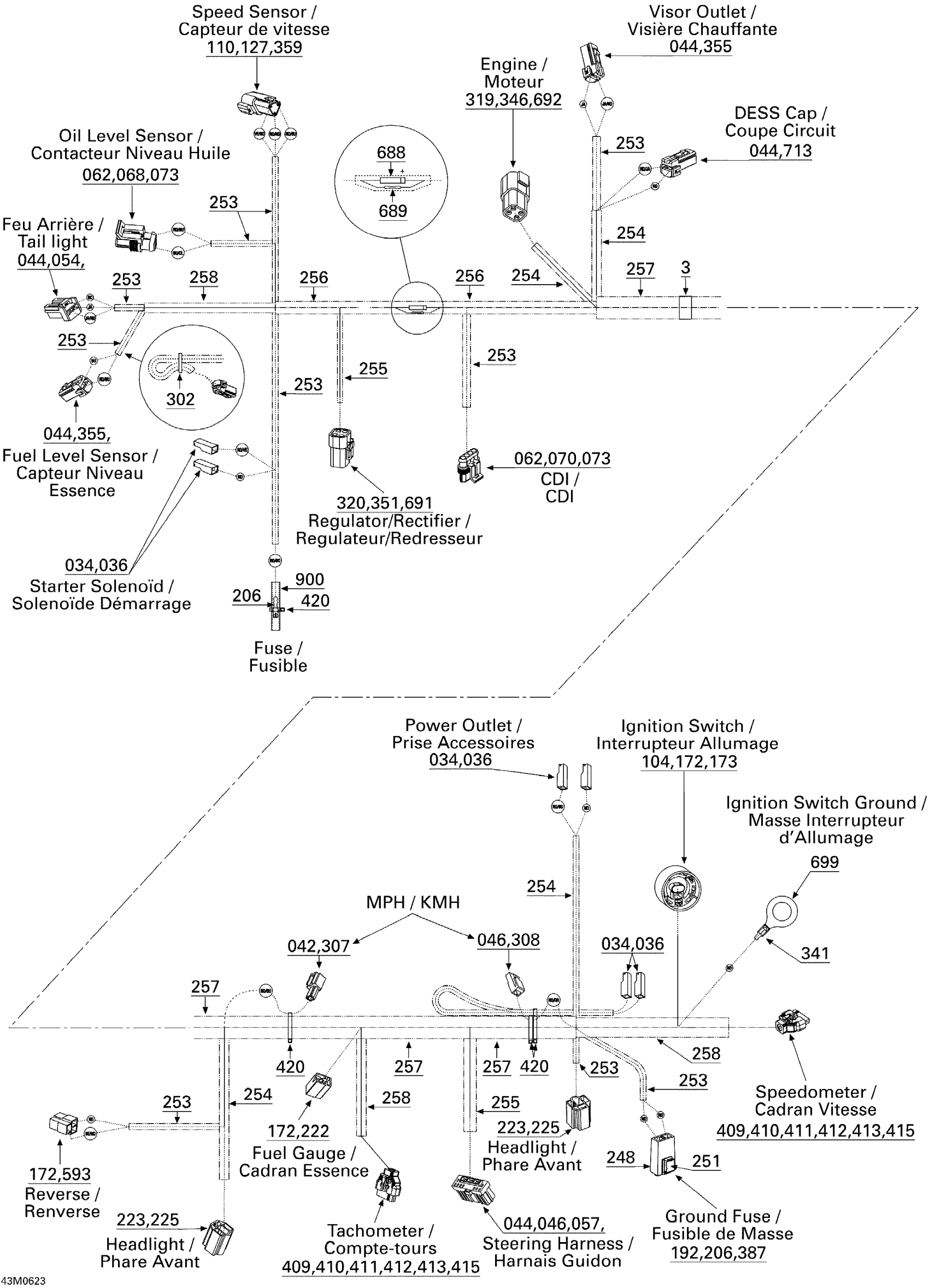

Ski-Doo Summit 550F, 2006 Electrical Harness Diagram

#

Description
Price

1

Frame Wiring Harness | Includes 1 to 900

515176324

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

34

Female Terminal

409010100

$5.46

36

Female Terminal Housing, 1 Circuit

409010400

$7.48

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

Unavailable

46

Female Terminal

515175282

$6.43

54

Female Housing, 3 Circuits

515175495

$15.35

57

Female Terminal Housing, 13 Circuits

515175350

Unavailable

62

Female Terminal

278001014

Unavailable

68

Female Housing, 2 Circuits

409209500

$13.48

70

Female Housing, 4 Circuits

409209700

Unavailable

73

Wire Seal

278001013

Unavailable

104

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

110

Male Terminal

278000631

$4.12

127

Male Lock, 3 Circuits

409207600

$3.02

172

Female Terminal

561503100

Unavailable

173

Female Terminal

561503100

Unavailable

192

Fuse, 20 Amperes

409003900

$3.22

206

Female Terminal

409004200

Unavailable

222

Female Housing

409204300

Unavailable

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

248

Fuse Holder

409004000

Unavailable

251

CLIP - Call your local BRP dealership

409014200

$4.23

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

Unavailable

255

Was 409901800 Tubing (13 mm)

219704400

Unavailable

256

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

257

Was 409901600 Tubing 19mm

219704398

Unavailable

258

Tubing 10 MM 1000MM Long

219704407

Unavailable

302

Tie Wrap 94 mm | 4X4

293750001

$0.83

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

319

Male Terminal

515175568

$7.48

320

Female Terminal

515175567

$6.03

341

Not Available As Spare Part - Friction Washer

Unavailable

346

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

351

Female Lock, 4 Circuits

278001474

Unavailable

355

Female Housing, 2 Circuits

515175658

Unavailable

359

Male Housing

515175666

Unavailable

387

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

409

Plug

515175812

Unavailable

410

Female Housing, 24 Circuits

515175801

Unavailable

411

Retainer Block

515175802

Unavailable

412

Wire Seal

515175803

Unavailable

413

BLOCK - Call your local BRP dealership

515175804

$6.66

415

Female Terminal

515175806

$0.81

420

Tie-Rap 180 mm

414115200

$0.09

593

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

688

CAPACITOR - Call your local BRP dealership

515176279

Unavailable

689

RESISTANCE - Call your local BRP dealership

515176280

Unavailable

691

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

278002027

Unavailable

692

Female Terminal Housing, 4 Circuits

278002028

Unavailable

699

Ring Terminal

515176287

Unavailable

713

Female Terminal Housing, 2 Circuits

515176296

Unavailable

900

Hose

415079200

Unavailable
