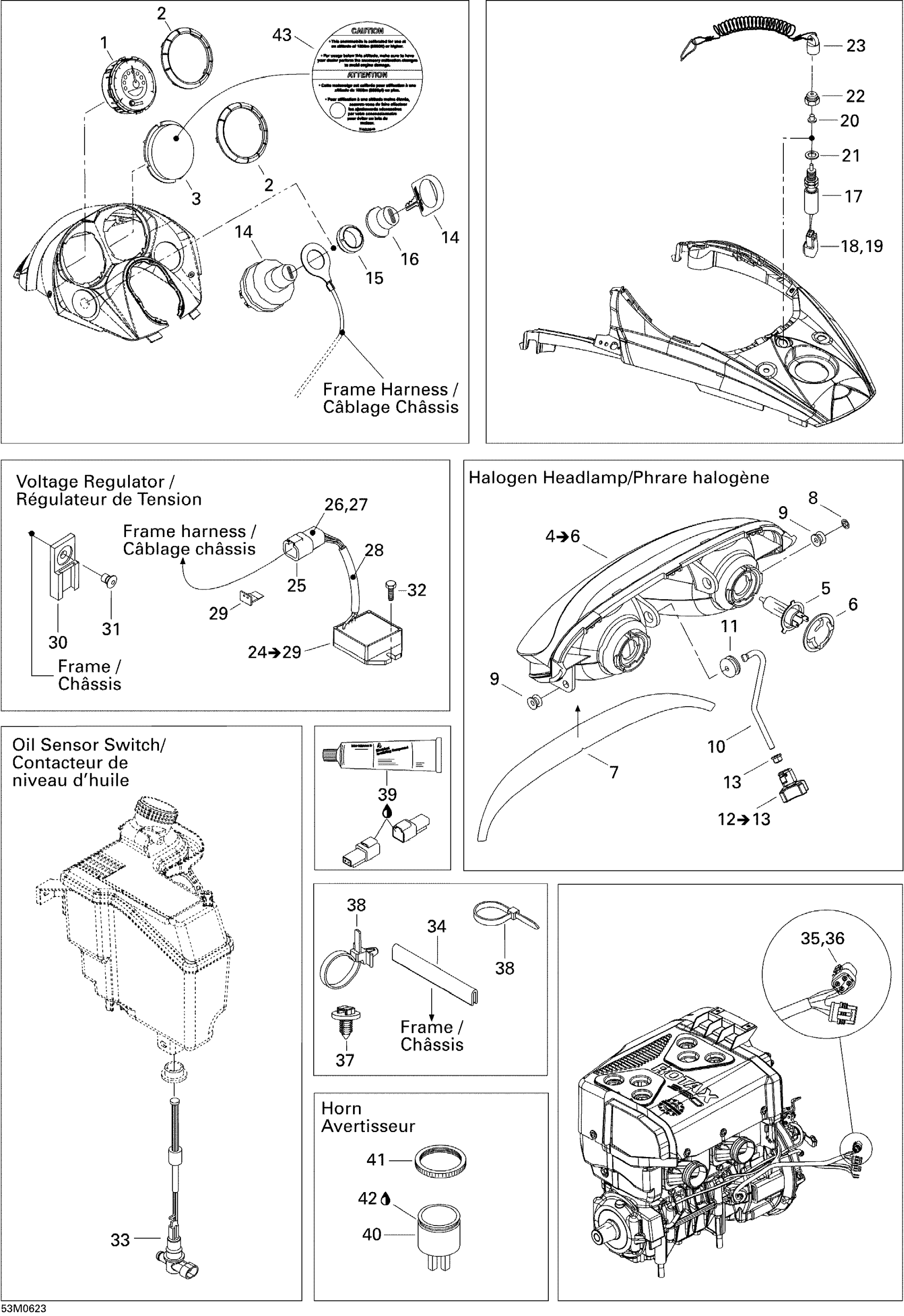

Ski-Doo Summit 550F, 2006 Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership

515176301

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

Unavailable

3

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

8

Push Nut

732610072

Unavailable

9

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

10

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

11

Grommet - Call your local BRP dealership

415100800

Unavailable

12

HANDLE - Call your local BRP dealership

515175975

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

15

FACE NUT - Call your local BRP dealership

410112100

$14.29

16

Switch Boot

570013700

Unavailable

17

Brake Switch

515175653

$15.57

18

Male Terminal Housing, 2 Circuits

515175654

$7.48

19

Male Terminal

515175232

$1.49

20

Plunger Cap

570151100

$10.14

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Switch Nut

515145900

$10.83

23

Cap Ass'y

515178283

$37.66

24

Voltage Regulator | Manual Start, Includes 39 to 44

515176188

Unavailable

25

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

26

Male Terminal

515175568

$7.48

27

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

28

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

29

Sealing Cap

293000052

Unavailable

30

Clip

270000141

$8.33

31

Avdel Rivet 3/16"

293150037

$0.47

32

Hex. Flange Screw M6 X 12

210261250

$1.56

33

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

34

TRIM - Call your local BRP dealership

509000263

Unavailable

35

Female Terminal Housing, 4 Circuits

278001473

Unavailable

36

Female Lock, 4 Circuits

278001474

Unavailable

37

Mount Dart

293730040

$0.86

38

Tie-Rap 180 mm

414115200

$0.09

38

Tie Wrap 142 mm

293750002

Unavailable

38

Tie-Rap 173 mm

293750009

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

40

HORN - Call your local BRP dealership

515176035

Unavailable

41

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

42

Silicone Sealant 51388, 300 ml

296000309

Unavailable

43

Altitude Decal

516003040

Unavailable
