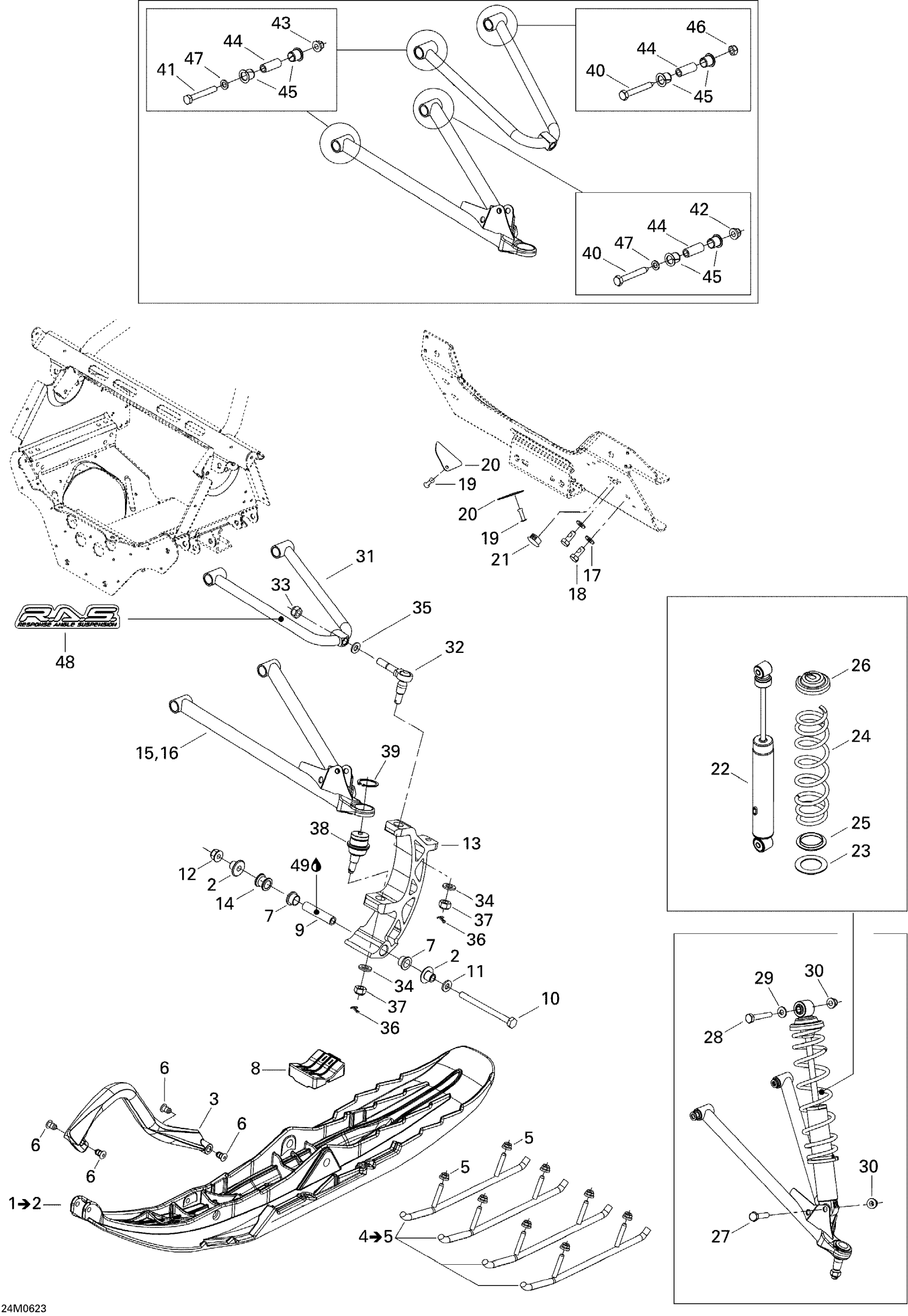

Ski-Doo Summit 550F, 2006 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

Unavailable

1

Black Pilot Ski Ass'y 6.9 LH

505073055

Unavailable

2

Ski Bushing

505071781

Unavailable

3

Black, Handle

505070963

Unavailable

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

Unavailable

6

Retainer 17mm long

505071812

$4.43

7

Leg Bushing

505072690

Unavailable

8

Ski Stopper

505071779

$16.12

9

Spacer

506133300

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

11

Washer

732900049

Unavailable

12

Flange Nut M10

732610084

Unavailable

13

SKI LEG - Call your local BRP dealership

505071248

Unavailable

14

SPACER - Call your local BRP dealership

505071215

Unavailable

15

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512900

Unavailable

16

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512800

Unavailable

17

Flat Washer 8 mm

234081410

Unavailable

18

Hex. Screw With Nylon

250000118

Unavailable

19

Pop Rivet 3/16"

293150103

Unavailable

20

ALUMINIUM PLUG - Call your local BRP dealership

505071131

Unavailable

21

CAP - Call your local BRP dealership

572072100

Unavailable

22

Front Shock

505071459

Unavailable

23

WASHER - Call your local BRP dealership

505070401

Unavailable

24

SPRING - Call your local BRP dealership

505071836

Unavailable

25

Spring Guide

503187500

Unavailable

26

Spring Stopper

706200881

$10.30

27

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

Washer

503189564

Unavailable

30

Hex. Flange Elastic Nut M10

233201414

$1.26

31

UPPER ARM - Call your local BRP dealership

505071816

Unavailable

32

Upper Ball Joint

505072257

$16.89

33

Hex. Flange Elastic Nut M12

250000047

Unavailable

34

Flat Washer 12 mm

234021410

$0.68

35

Washer

503189276

Unavailable

36

Cotter Pin

211400017

Unavailable

37

Hex. Flange Elastic Nut M12

250000047

Unavailable

38

Ball Joint

505073636

$49.97

39

Circlip

293370035

$2.55

40

Hex. Screw M10 X 75

250001063

Unavailable

41

Hex. Screw M10 X 75

250001063

Unavailable

42

Hex. Flange Elastic Nut M10

250100165

Unavailable

43

Hex. Flange Elastic Nut M10

250100165

Unavailable

44

Bushing

505070567

Unavailable

45

Arm Bushing

505070566

Unavailable

46

Elastic Flange Nut M10

232501416

Unavailable

47

Washer

503189564

Unavailable

48

R.a.s. Suspension Decal

516002747

Unavailable

49

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
