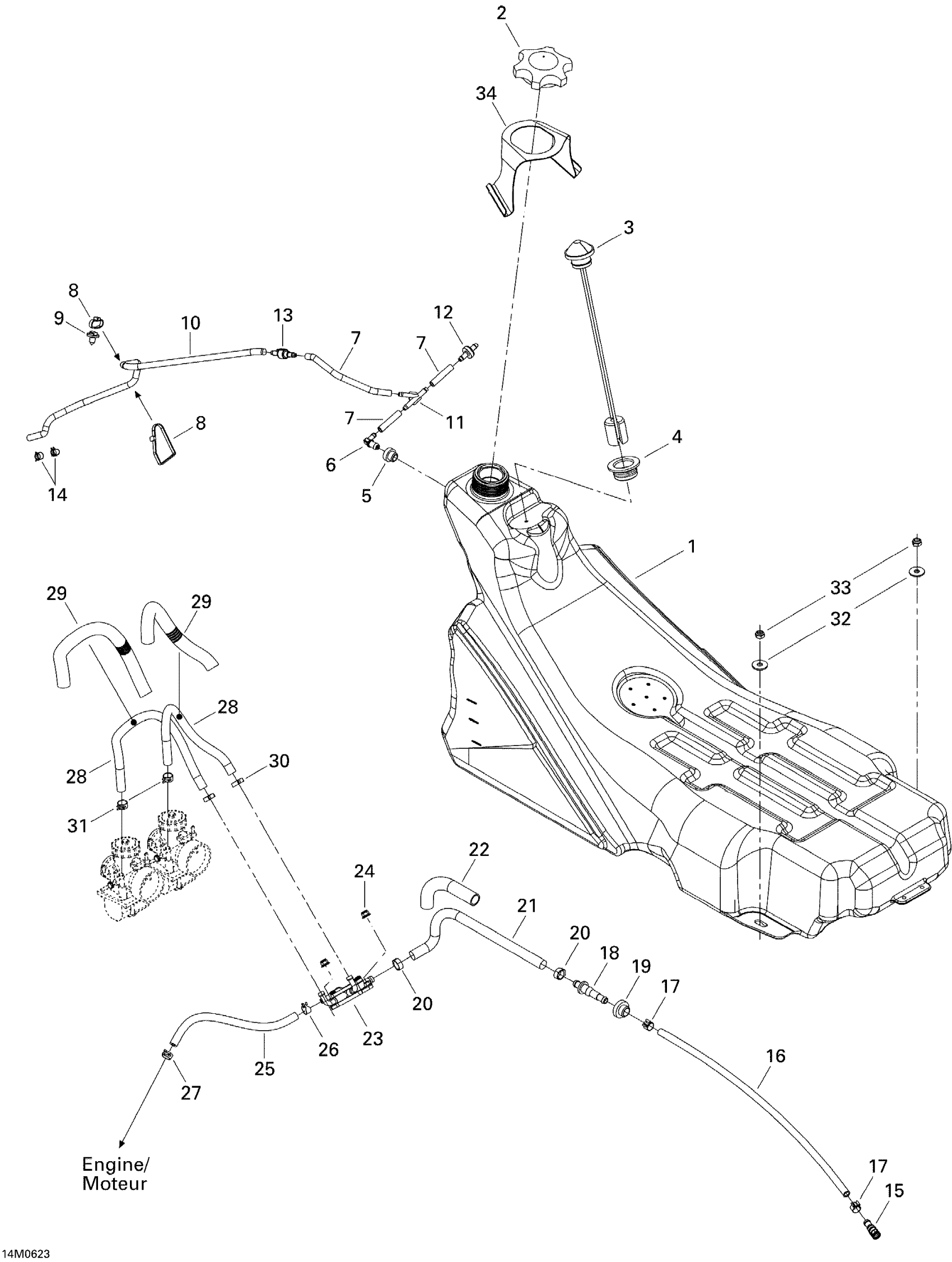

Ski-Doo Summit 550F, 2006 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033080

Unavailable

2

Fuel Tank Cap

513033025

$19.47

3

FUEL GAUGE - Call your local BRP dealership

513033358

Unavailable

4

Grommet

293720058

$11.00

5

Grommet

513032908

$8.74

6

Male Connector

414580700

Unavailable

7

Polyurethane Hose 10000Mm Long

219704410

Unavailable

8

Tie-Rap 180 mm

414115200

$0.09

9

Mount Dart

293730040

$0.86

10

Polyurethane Hose 10000Mm Long

219704410

Unavailable

11

Y-Fitting

293710059

Unavailable

12

Check Valve

275500398

Unavailable

13

Check Valve

275500505

Unavailable

14

Spring Clamp

414554800

$0.83

15

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

16

Hose

513033070

$12.62

17

Norma Spring Clamp

513033010

Unavailable

18

Male Connector

414872700

Unavailable

19

Grommet | Europe

707800347

Unavailable

20

Crimp Clamp

293650053

Unavailable

21

Formed Hose

513033374

$29.20

22

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

23

Fuel Pump

403901813

Unavailable

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

25

FORMED HOSE - Call your local BRP dealership

513033111

Unavailable

26

Spring Clamp

414415200

$0.83

27

Universal Spring Clamp

513033029

Unavailable

28

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

29

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

30

Crimp Clamp, 15.3-706R

293650047

Unavailable

31

Universal Spring Clamp

513033029

Unavailable

32

Flat Washer 8 mm

234082410

$1.11

33

Hex. Elastic Stop Nut M8

232581414

Unavailable

34

SUPPORT - Call your local BRP dealership

513033066

$11.98
