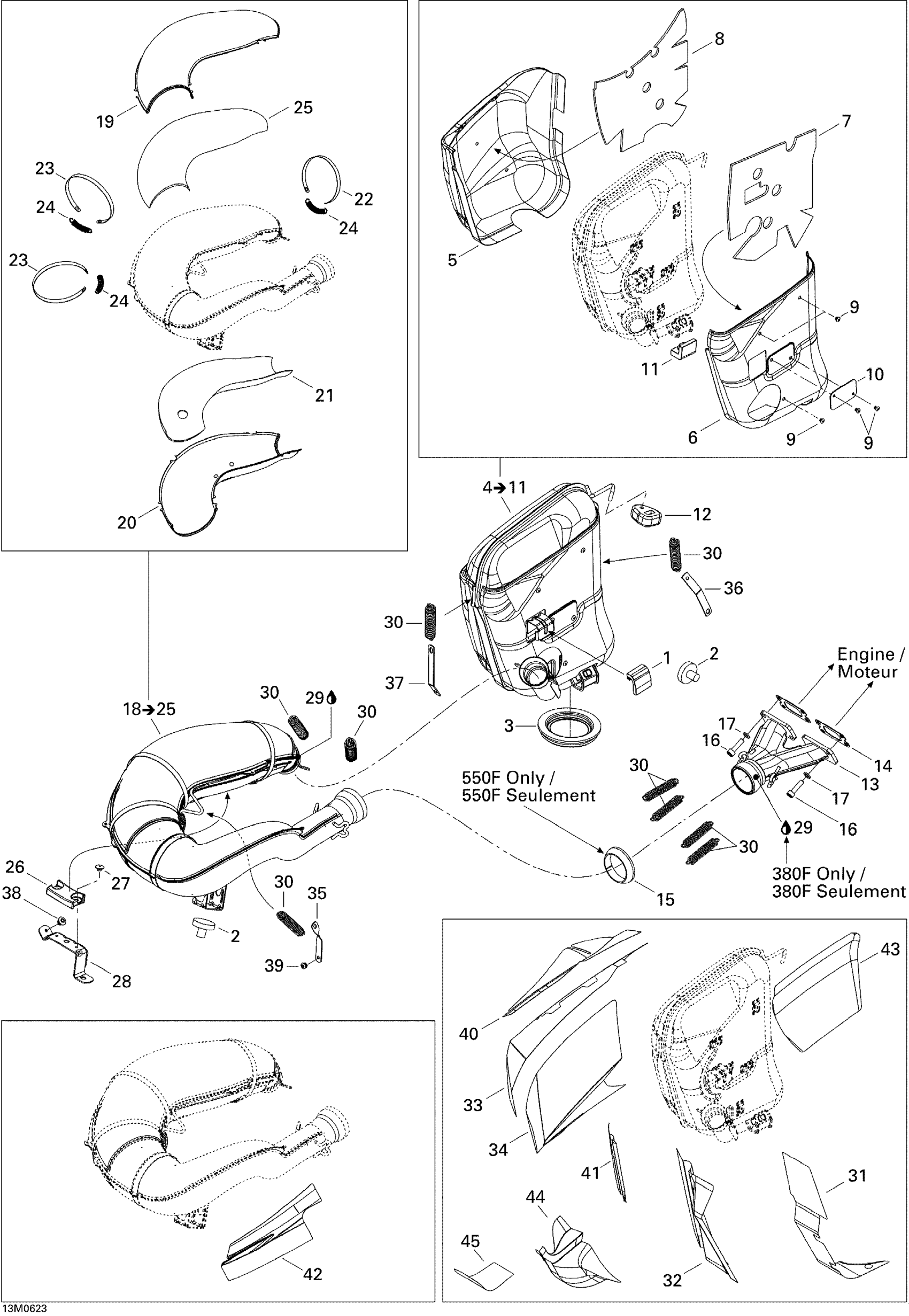

Ski-Doo Summit 550F, 2006 Exhaust System Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

$13.95

2

Rubber Bumper

514053654

$49.20

3

Exhaust Grommet

514053394

Unavailable

4

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | Includes 4 to 11

514054099

Unavailable

5

RH DEFLECTOR - Call your local BRP dealership

514054100

Unavailable

6

HEAT DEFLECTOR LH - Call your local BRP dealership

514053843

$37.66

7

INSULATING WOOL LH - Call your local BRP dealership

514053844

$12.28

8

INSULATING WOOL RH - Call your local BRP dealership

514053947

$13.95

9

Pop Rivet 3/16”

390910000

$0.48

10

Reinforcement

514053429

Unavailable

11

LOWER STOPPER - Call your local BRP dealership

514054223

$35.35

12

RUBBER BUMPER - Call your local BRP dealership

514052704

$10.74

13

Exhaust Manifold

420673065

Unavailable

14

Gasket 1.0 mm

420831849

Unavailable

15

Exhaust Gasket

514053644

$25.35

16

Socket Head Screw M8 X 30

205083044

Unavailable

17

Washer

514053837

$4.28

18

Tuned Pipe Ass'y | Includes 18 to 25

514053848

Unavailable

19

REAR UPPER HALF-ENVELOPPE - Call your local BRP dealership

514053852

Unavailable

20

REAR LOWER HALF-ENVELOPPE - Call your local BRP dealership

514053853

Unavailable

21

LOWER INSULATING WOOL - Call your local BRP dealership

514053854

Unavailable

22

Retaining Strap

514053501

$8.34

23

RETAINING STRAP - Call your local BRP dealership

514053512

Unavailable

24

Spring

514053643

$6.20

25

UPPER INSULATING WOOL - Call your local BRP dealership

514053987

$13.82

26

BUMPER - Call your local BRP dealership

514053352

$14.58

27

Pop Rivet 3/16"

293150103

Unavailable

28

BUMPER SUPPORT - Call your local BRP dealership

514054039

$9.20

29

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

30

Spring

415107100

$6.20

31

REFLECTIVE SHEET - Call your local BRP dealership

514053560

$9.20

32

Reflective Sheet

514053912

Unavailable

33

REFLECTIVE SHEET - Call your local BRP dealership

514053954

$12.28

34

REFLECTIVE SHEET - Call your local BRP dealership

514053562

$9.20

35

SPRING BRACKET - Call your local BRP dealership

514053955

$6.89

36

SPRING BRACKET - Call your local BRP dealership

514053725

$6.18

37

Spring Bracket

514053393

$11.58

38

Avex Rivet

390909200

Unavailable

39

Pop Rivet 3/16"

390402200

$0.26

40

REFLECTIVE SHEET - Call your local BRP dealership

514053673

$7.66

41

REFLECTIVE SHEET - Call your local BRP dealership

514054012

Unavailable

42

Reflective Sheet

514054013

Unavailable

43

Reflective Sheet

514054014

Unavailable

44

Reflective Sheet

514053913

Unavailable

45

Reflective Sheet

514053914

Unavailable
