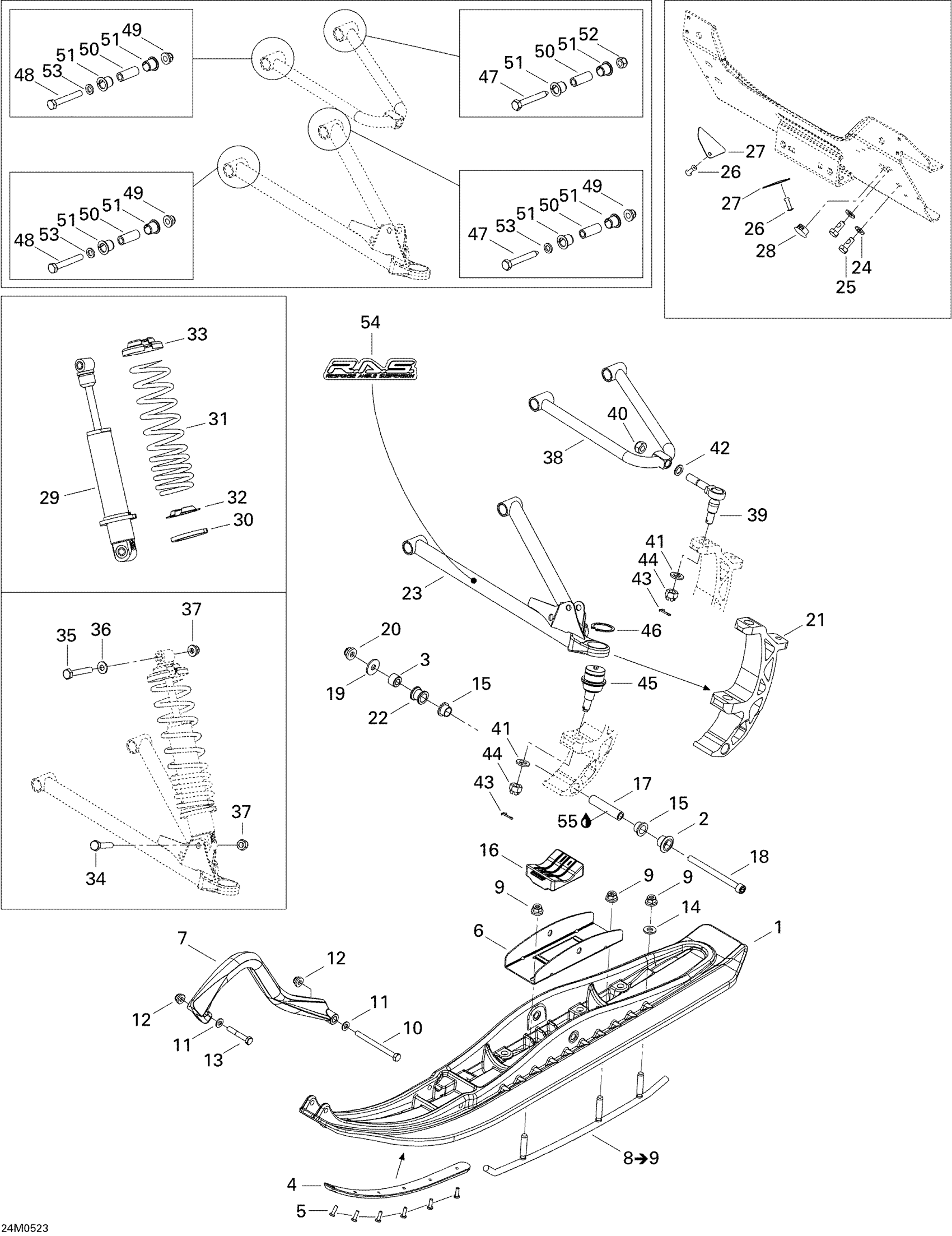

Ski-Doo Summit 550F, 2005 Front Suspension And Ski Diagram

#

Description
Price

1

RH Ski Ass'y | Black B-160

505071712

Unavailable

1

LH Ski Ass'y | Black B-160

505071713

Unavailable

2

CUSHION - Call your local BRP dealership

505070743

Unavailable

3

CUSHION - Call your local BRP dealership

505070823

Unavailable

4

Proactive Control

505071595

Unavailable

5

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

6

Ski Renforcement

505070745

$14.90

7

Black, Handle

505070963

$34.30

8

Lisse 6 *6 Carbide | Includes 8 to 9 This part replaces 860504800.

860200582

$140.27

9

Hex. Flange Elastic Nut M10

233201414

$1.45

10

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

11

Flat Washer 8 mm

234081410

$0.79

12

Hex. Flange Elastic Nut M8

233281414

$1.31

13

Hex. Screw M8 X 50

207085044

$1.43

14

Flat Washer

399910100

Unavailable

15

Leg Bushing

505072690

$5.75

16

Ski Stopper

505071779

$15.64

17

Spacer

506133300

$19.37

18

Socket Head Screw M10 X 125

250000069

Unavailable

19

Flat Washer 10 mm This part replaces M20011.

234002410

$1.43

20

Flange Nut M10

732610084

$6.30

21

SKI LEG - Call your local BRP dealership

505071248

Unavailable

22

SPACER - Call your local BRP dealership

505071215

Unavailable

23

RH Lower Arm | Highmark

860509800

Unavailable

23

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512800

Unavailable

24

Flat Washer 8 mm

234081410

$0.79

25

Hex. Screw With Nylon

250000118

Unavailable

26

Pop Rivet 3/16"

293150103

$0.52

27

ALUMINIUM PLUG - Call your local BRP dealership

505071131

Unavailable

28

CAP - Call your local BRP dealership

572072100

Unavailable

29

Front Shock

505071459

Unavailable

30

WASHER - Call your local BRP dealership

505070401

Unavailable

31

Spring

505071257

Unavailable

32

Spring Guide

503187500

$8.46

33

Spring Stopper

706200881

$11.82

34

Hex. Screw M10 X 55

207005544

$2.12

35

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

36

Washer

503189564

$0.70

37

Hex. Flange Elastic Nut M10

233201414

$1.45

38

Paint Upper Arm | Highmark

505071733

Unavailable

39

Upper Ball Joint

505072257

$16.39

40

Hex. Flange Elastic Nut M12

250000047

$1.79

41

Flat Washer 12 mm

234021410

$0.66

42

Washer

503189276

$3.10

43

Cotter Pin

211400017

$0.28

44

Hex. Castellated Nut M12

232221414

$3.00

45

Ball Joint

505071658

Unavailable

46

Circlip

293370035

$2.48

47

Hex. Screw M10 X 75

250001063

$11.18

48

Hex. Screw M10 X 75

250001063

$11.18

49

Hex. Flange Elastic Nut M10

250100165

$0.81

50

Bushing

505070567

$19.37

51

Arm Bushing

505070566

$3.04

52

Elastic Flange Nut M10

232501416

$1.43

53

Washer

503189564

$0.70

54

R.a.s. Suspension Decal

516002747

Unavailable

55

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
