2005 Ski-Doo Summit 550F OIL System Diagram

← All diagrams

Find the part on the OIL System diagram for your 2005 Ski-Doo Summit 550F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

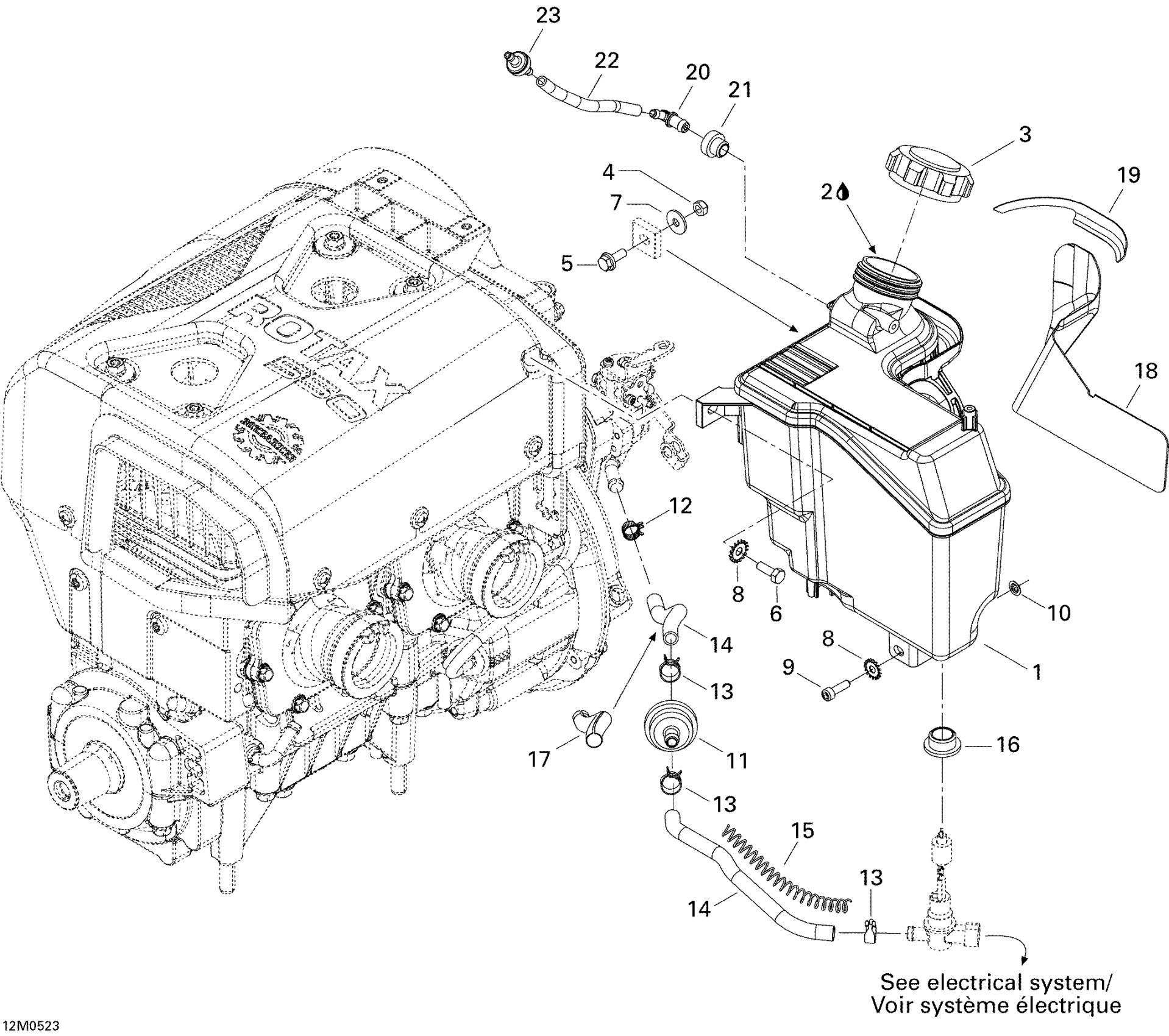

2005 Ski-Doo Summit 550F OIL System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

INJECTION OIL TANK - Call your local BRP dealership

519000073

—
Out of stock

2

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

1
Out of stock

2

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

1
Out of stock

2

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

—
Out of stock

3

CAP - Call your local BRP dealership

519000033

—
Out of stock

4

Elastic Stop Nut M6

232561414

1
Out of stock

5

Hex. Flange Screw M6 X 16

207661644

1
Out of stock

6

Hex. Screw M6 X 18

207161844

1
Out of stock

7

Flat Washer

250200082

1
Out of stock

8

Lock Washer Serrated M6

250200041

2
Out of stock

9

1

$1.07

In stock

10

Push Nut

732610072

1
Out of stock

11

Filter

414536500

1
Out of stock

12

Spring Clamp

414420700

1
Out of stock

13

Spring Clamp

414415200

3
Out of stock

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

1
Out of stock

15

SPRING - Call your local BRP dealership

519000125

—
Out of stock

16

Insulating Ring

570023000

1
Out of stock

17

1

$2.20

In stock

18

REFLECTIVE SHEET - Call your local BRP dealership

519000054

—
Out of stock

19

REFLECTIVE SHEET - Call your local BRP dealership

519000072

—
Out of stock

20

Male Connector

414580700

1
Out of stock

21

Grommet

513032908

1
Out of stock

22

Polyurethane Hose 10000Mm Long

219704410

1
Out of stock

23

Check Valve

275500398

1
Out of stock
