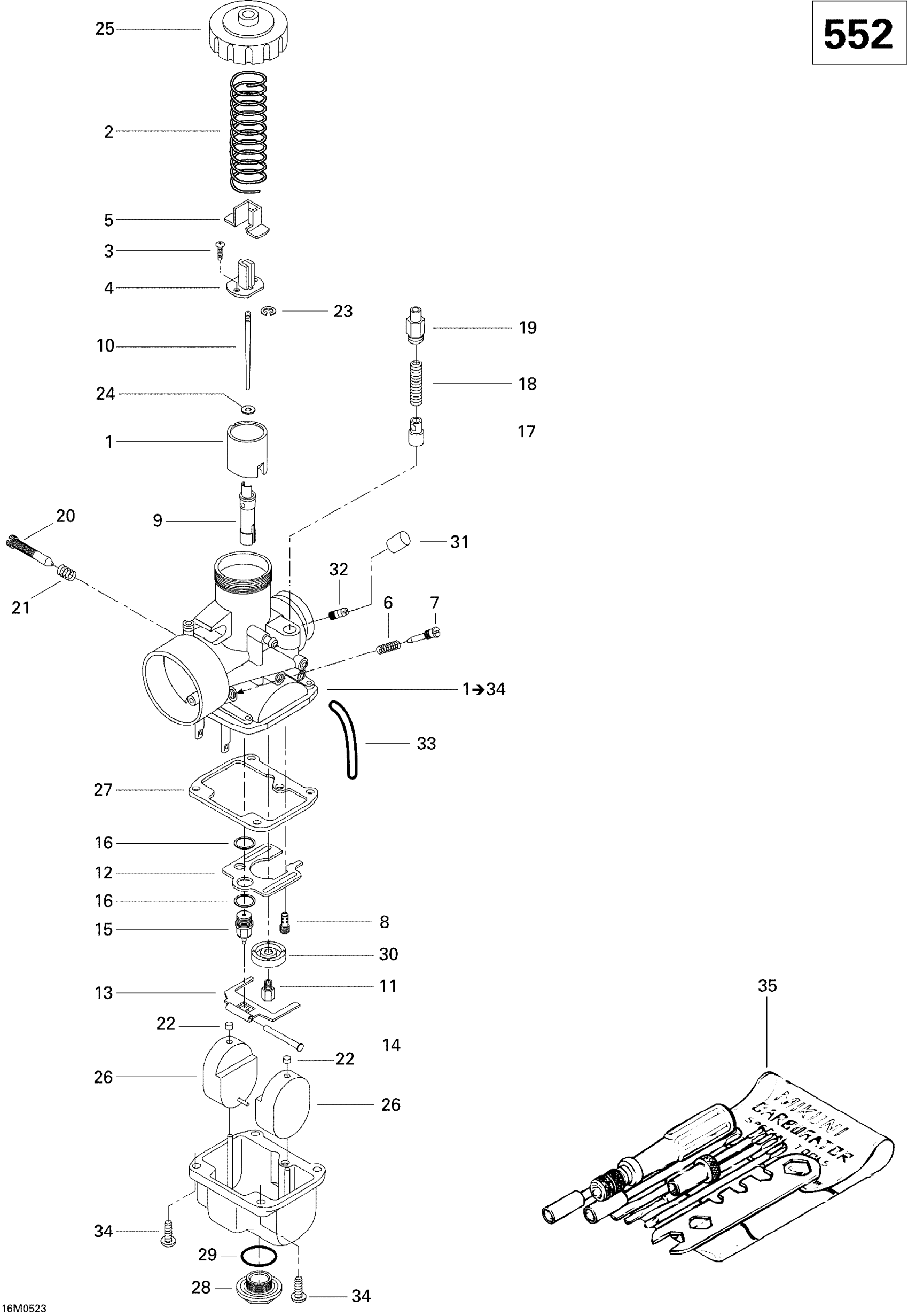

Ski-Doo Summit 550F, 2005 Carburetor Diagram

#

Description
Price

1

CARBURATOR VM34-616 - Call your local BRP dealership

403138773

Unavailable

1

CARBURETOR VM34-617 - Call your local BRP dealership

403138772

Unavailable

1

Piston Valve 2.5

404128400

$124.60

2

Spring

404154800

$24.60

3

Screw With Washer

404121300

$4.24

4

Packing

404161987

$14.46

5

Cover

404122100

$17.88

6

SPRING - Call your local BRP dealership

404139800

Unavailable

7

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

8

Pilot Jet 45

404109400

$5.29

9

Needle Jet 159-P-7

404162072

Unavailable

10

NEEDLE J8-6BCY40 - Call your local BRP dealership

404162032

Unavailable

11

MAIN JET 220 - Call your local BRP dealership

404111200

Unavailable

11

Main Jet 260

404100600

$7.90

12

BAFFLE - Call your local BRP dealership

404109600

Unavailable

13

Float Lever

404107600

$23.85

14

Lever Pin

404103300

$6.36

15

Needle Valve 1.2

404147500

$43.25

16

Seat Washer

404101600

$3.21

17

Plunger Ass'y | MAG Side

404161986

$17.88

18

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

19

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

20

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

21

Spring

404101700

$4.24

22

Cap

404105800

$6.49

23

E-Ring

404152400

$6.36

24

Packing

404117000

$3.31

25

Cover

404103700

$32.06

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Gasket | Includes 1900a to 1900am

404104200

$6.49

28

Drain Plug Screw

404107400

$23.85

29

O-Ring

404107300

$7.90

30

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

31

Cap

404156600

$15.64

32

Nipple

404153400

$11.16

33

HOSE - Call your local BRP dealership

404161888

Unavailable

34

Screw With Lock Washer

404102000

$3.19

35

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
