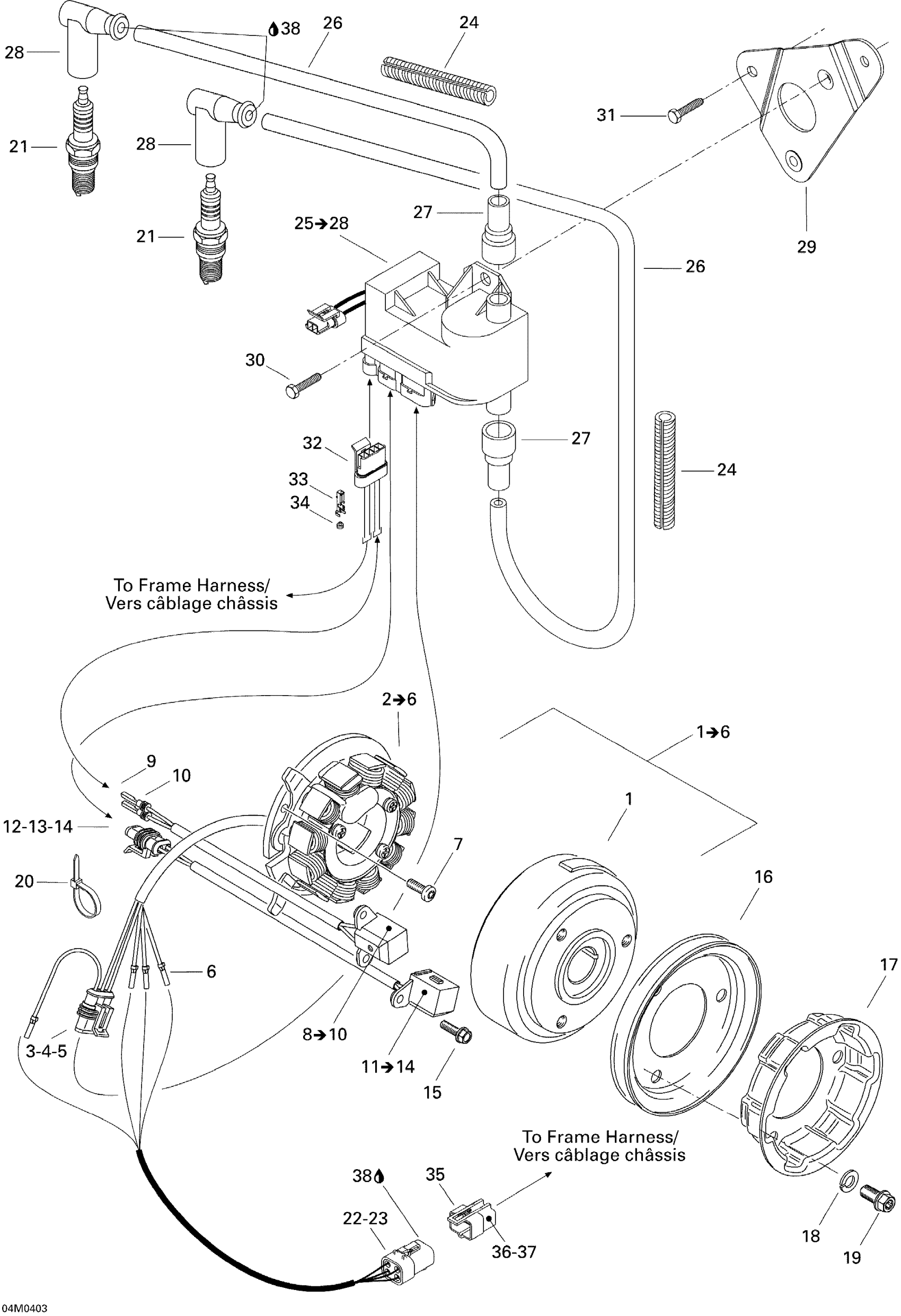

Ski-Doo Summit 550F, 2004 Magneto SUMMIT 550F Diagram
#
1
Magneto Ducati | Includes 1 to 2
420888970
Unavailable
1
Flywheel
420889376
Unavailable
2
Stator Plate A
420889369
Unavailable
3
Female Housing, 3 Circuits
409209600
Unavailable
4
Female Terminal
278001014
Unavailable
5
Wire Seal
278001013
Unavailable
7
Screw
420641521
Unavailable
8
Pick-Up
420665163
Unavailable
9
Female Terminal
278001014
Unavailable
10
Wire Seal
278001013
Unavailable
11
PICK-UP - Call your local BRP dealership
420665160
Unavailable
13
Female Terminal
278001014
Unavailable
14
Wire Seal
278001013
Unavailable
15
Taptite Screw M5 X 16
420941928
Unavailable
16
V-Belt Pulley
420980486
Unavailable
17
Rope Sheave
420852414
Unavailable
18
Lock Washer
420845311
Unavailable
19
Torx Flange Screw M8 X 16
420440852
Unavailable
21
Spark Plug NGK BR9ES This part replaces 414961100.
219703120
Unavailable
22
Female Terminal Housing, 4 Circuits
278001473
Unavailable
23
Female Lock, 4 Circuits
278001474
Unavailable
24
Was 409901700 Tubing (9 mm)
219704399
Unavailable
25
Calibration Module | Includes Items 25 to 28
512059628
Unavailable
25
Calibration Module | Includes 14 to 16
512059626
Unavailable
26
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
27
PROTECTION CAP - Call your local BRP dealership
515174900
Unavailable
28
SPARK PLUG CAP - Call your local BRP dealership
278000237
Unavailable
29
Module Support Ass’Y
512059494
Unavailable
31
Hex. Screw M6 X 16
209561640
Unavailable
32
Female Housing, 4 Circuits
409209700
Unavailable
33
Female Terminal
278001014
Unavailable
34
Wire Seal
278001013
Unavailable
35
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
Unavailable
36
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
Unavailable
38
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
