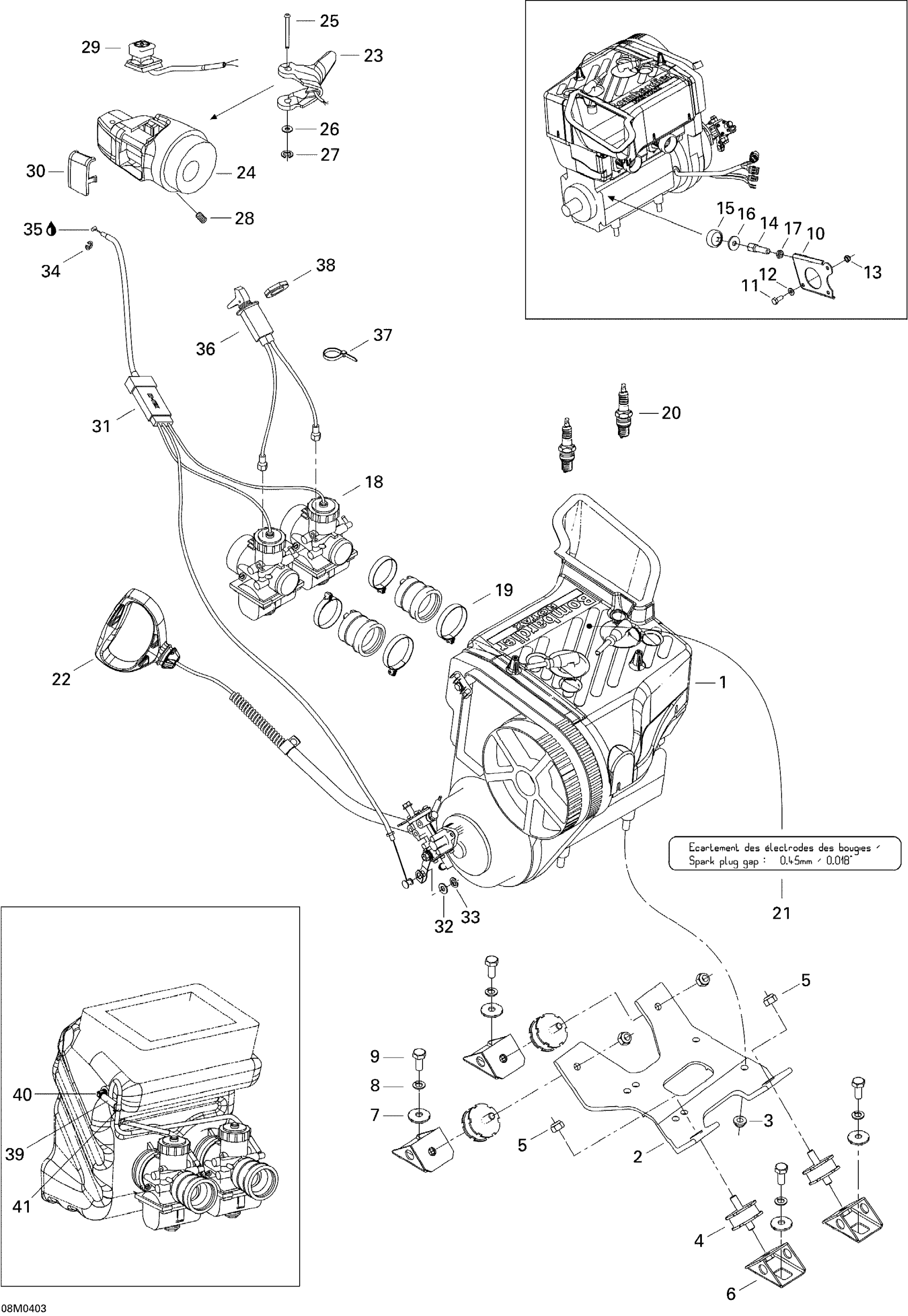

Ski-Doo Summit 550F, 2004 Engine System, SUMMIT 550F Diagram

#

Description
Price

1

Engine 552

400509745

Unavailable

2

Engine Support

512059397

Unavailable

3

Hex. Flange Elastic Nut M10

233201414

$1.26

4

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

5

Hex. Flange Elastic Nut M10

233201414

$1.26

6

Engine Support

512050900

Unavailable

7

Lock Washer

512056700

Unavailable

8

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

9

Hex. Screw M10 X 25

207102544

Unavailable

10

Welded Plate

512059446

Unavailable

11

Hex. Screw M8 X 20

207182044

$0.61

12

Flat Washer 8 mm

234081410

Unavailable

13

Hex. Elastic Stop Nut M8

232581414

Unavailable

14

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

15

Stopper

512059056

Unavailable

16

WASHER - Call your local BRP dealership

512059057

Unavailable

17

Nut Hexagonal RH.

232026414

Unavailable

18

Carburator Vm-34 | Includes Items 1 to 34

403138727

Unavailable

19

Gemi Clamp | Not Shown

512059834

$10.52

20

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

21

Spark Plug Decal

516000986

Unavailable

22

Starter Grip

572084400

Unavailable

23

Handle Ass'y

512060214

Unavailable

24

THROTTLE HOUSING - Call your local BRP dealership

512059489

Unavailable

25

Lever Pin

414438700

$11.14

26

Flat Washer M5, Stainless

234051600

$0.64

27

Circlip | Model-RS

414439000

Unavailable

28

Socket Set Screw M8 X 10

414440800

$4.00

29

Kill Switch

515175410

Unavailable

30

Switch Cover

572100901

Unavailable

31

THROTTLE CABLE - Call your local BRP dealership

512059625

Unavailable

32

Flat Washer 8 mm, Nylon

234081100

$1.00

33

Circlip

414753500

$0.59

34

Circlip

414274500

Unavailable

35

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

36

CHOKE CABLE - Call your local BRP dealership

512059441

Unavailable

37

Tie-Rap 173 mm

293750009

Unavailable

38

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

39

Polyurethane Hose 10000Mm Long

219704410

Unavailable

40

Elbow Male Connector

414580600

$3.50

41

T-Fitting

572045500

Unavailable
