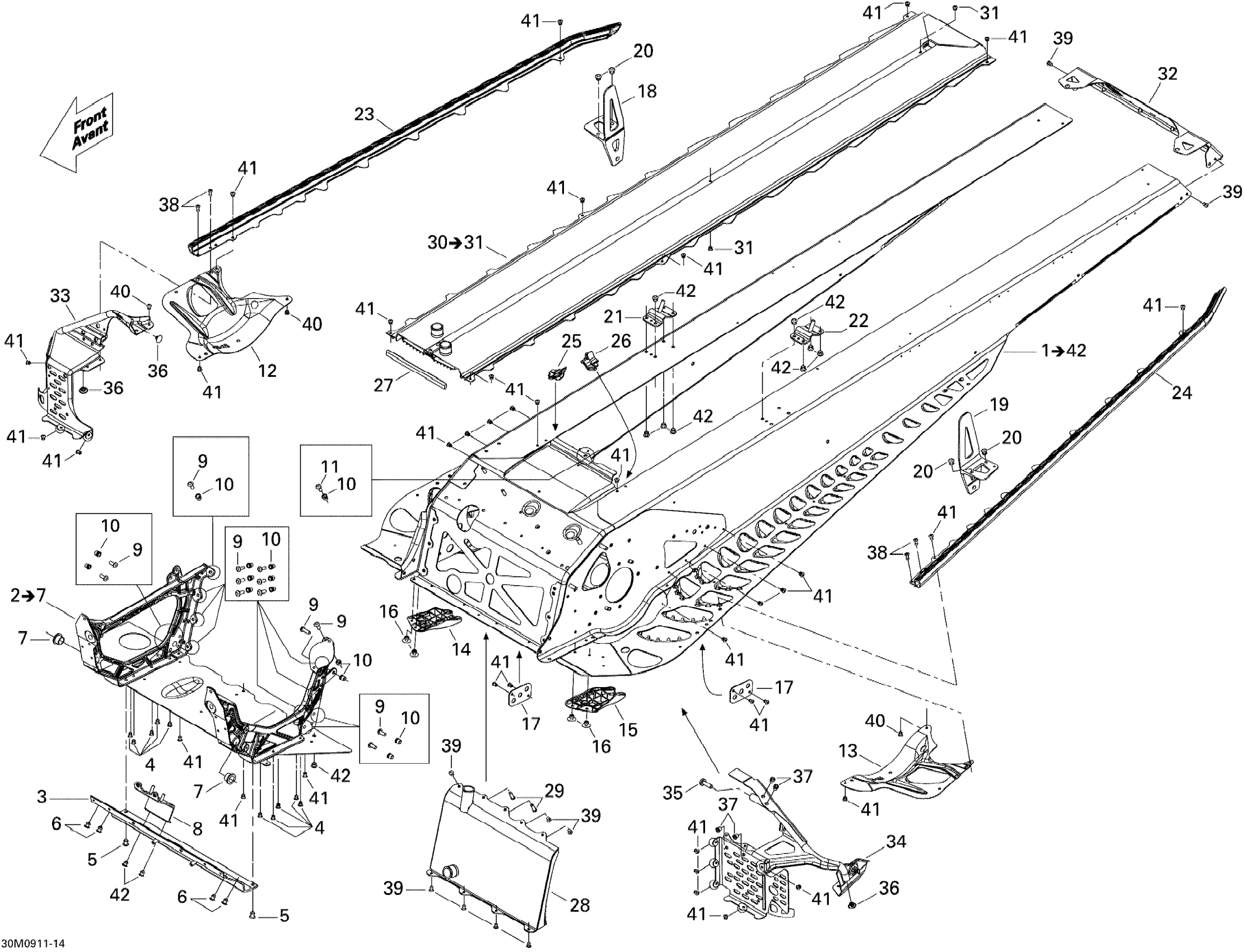

Ski-Doo Summit 50TH Anniversary, 2009 Frame Diagram
#
Description
Price
1
FRAME ASS'Y - Call your local BRP dealership | Includes 1 to G
415129745
Unavailable
2
E Module | Includes 10n to 10at
518327567
Unavailable
4
Stavex Rivet
293150144
Unavailable
5
Ornit Rivet 6,5 X 14.5
293150266
Unavailable
7
Leg Bushing
505072690
Unavailable
9
Hex. Flange Screw M6 X 20
207662044
Unavailable
10
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
11
Hex. Flange Screw M6 X 20
207662044
Unavailable
12
RH Reinforcement
518324874
Unavailable
13
LH Reinforcement
518324875
Unavailable
14
RH Deflector, Black Polypropylene
518325782
Unavailable
15
LH Deflector, Black Polypropylene
518325783
Unavailable
20
Ornit Rivet 6,5 X 14.5
293150266
Unavailable
21
RH Rear Base
518325973
Unavailable
22
LH Rear Base | Includes 10v to 10x
518325974
Unavailable
23
RH ROLLER - Call your local BRP dealership
518325159
Unavailable
24
LH Roller | Includes 10bd to 10be
518325160
Unavailable
25
RH SEAL - Call your local BRP dealership
518325653
Unavailable
26
LH SEAL - Call your local BRP dealership
518325654
Unavailable
27
NEOPRENE SEAL - Call your local BRP dealership
293200105
Unavailable
28
Front Radiator | Includes 10b to 10b2
518326485
Unavailable
31
Stavex Rivet
293150144
Unavailable
32
Rear Cap
518327105
Unavailable
33
RH Stirup | Includes 10aa to 10ab
518328938
Unavailable
34
LH STIRUP - Call your local BRP dealership
518327935
Unavailable
36
Full Moon Dart 5 mm
293730042
Unavailable
37
Insert M5 X 0.8
293450268
Unavailable
38
Pop Rivet 3/16"
390402300
Unavailable
39
Avex Rivet
390909200
Unavailable
41
Stavex Rivet
293150144
Unavailable
