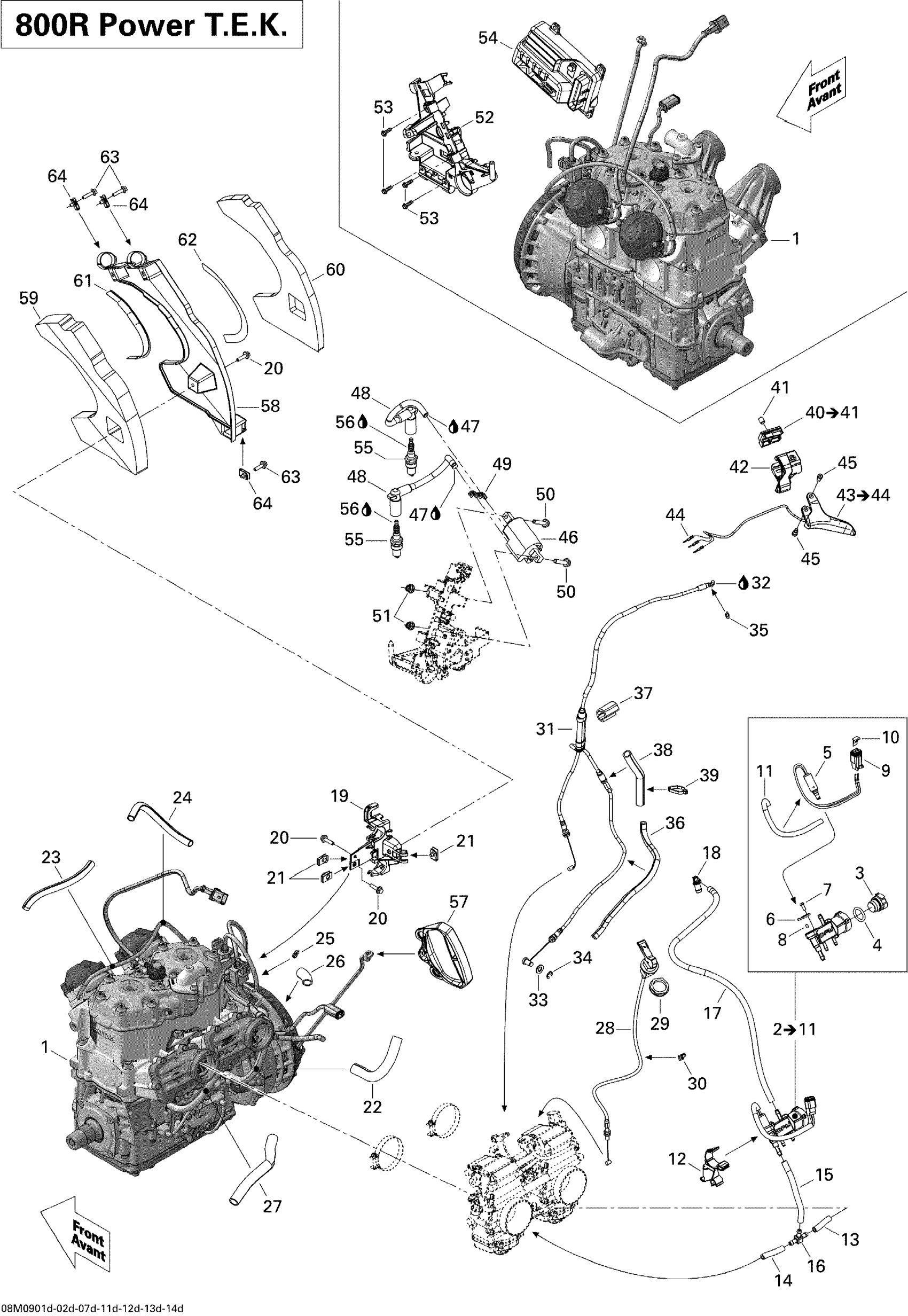

Ski-Doo Summit 50TH Anniversary, 2009 Engine 2_800R Diagram

#

Description
Price

1

Short Block 797 Ptek This part replaces 421000676.

861805566

Unavailable

2

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

$221.51

3

CAP - Call your local BRP dealership

270600009

$5.63

4

O-RING - Call your local BRP dealership

293300042

$7.69

5

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

$73.82

6

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

7

Screw K40 X 10

241140060

$1.25

8

STARTER JET - Call your local BRP dealership

404161825

Unavailable

9

Female Terminal Housing, 2 Circuits

515175670

Unavailable

10

Female Lock, 2 Circuits

515175675

Unavailable

11

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

12

DPM SUPPORT - Call your local BRP dealership

512060229

Unavailable

13

Polyurethane Hose 10000Mm Long

219704410

Unavailable

14

Polyurethane Hose 10000Mm Long

219704410

Unavailable

15

Polyurethane Hose 10000Mm Long

219704410

Unavailable

16

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

17

Polyurethane Hose 10000Mm Long

219704410

Unavailable

18

Male Connector

414580700

Unavailable

19

Solenoid Support

512060298

$12.52

20

Hex.Flange Screw M5 X 20

207652044

$1.56

21

Panel Nut M5 X 0.8

250000958

Unavailable

22

Was 409901800 Tubing (13 mm)

219704400

Unavailable

23

Was 409901700 Tubing (9 mm)

219704399

Unavailable

24

Was 409901700 Tubing (9 mm)

219704399

Unavailable

25

Tie Wrap 94 mm | 4X4

293750001

$0.83

26

Was 409901800 Tubing (13 mm)

219704400

Unavailable

27

Was 409901800 Tubing (13 mm)

219704400

Unavailable

28

Choke Cable

512060672

Unavailable

29

Plastic Nut

512060671

$0.98

30

Tie-Rap 180 mm

414115200

$0.09

31

Throttle Cable

512060893

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

33

Flat Washer 8 mm, Nylon

234081100

$1.00

34

Circlip

414753500

$0.59

35

Circlip

414274500

Unavailable

36

Tubing 6 Mm 3000Mm Long

219704425

$13.14

37

Protector

512060313

$9.31

38

Tubing 10 MM 1000MM Long

219704407

Unavailable

39

Tie-Rap 180 mm

414115200

$0.09

40

Upper Housing Ass'y

512060198

Unavailable

41

Socket Set Screw M8 X 10

414440800

$4.00

42

Lower Housing

512060860

Unavailable

43

Handle Ass'y

512061250

$117.66

44

Male Terminal

515175232

$1.49

45

Flange Screw

732601143

$4.02

46

Ignition Coil

512059968

Unavailable

47

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

48

Cable

512060291

Unavailable

49

Plastic Clip, Spark Plug Wire

410914600

Unavailable

50

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

51

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

52

Coils Support

512060924

$9.31

53

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

54

CALIBRATED MODULE, 800R POWERT.E.K. - Call your local BRP dealership | Engine 800R

512060684

Unavailable

55

Spark Plug NGK BR9ECS

415128524

Unavailable

56

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

57

Starter Grip

512060136

$14.54

58

Noise Shield

512060338

Unavailable

59

Inner Noise Foam

512060341

Unavailable

60

Outer Noise Foam

512060342

Unavailable

61

Heat Shield

512060574

Unavailable

62

Heat Shield

512060575

Unavailable

63

Hex.Flange Screw M5 X 20

207652044

$1.56

64

Panel Nut M5 X 0.8

250000958

Unavailable
