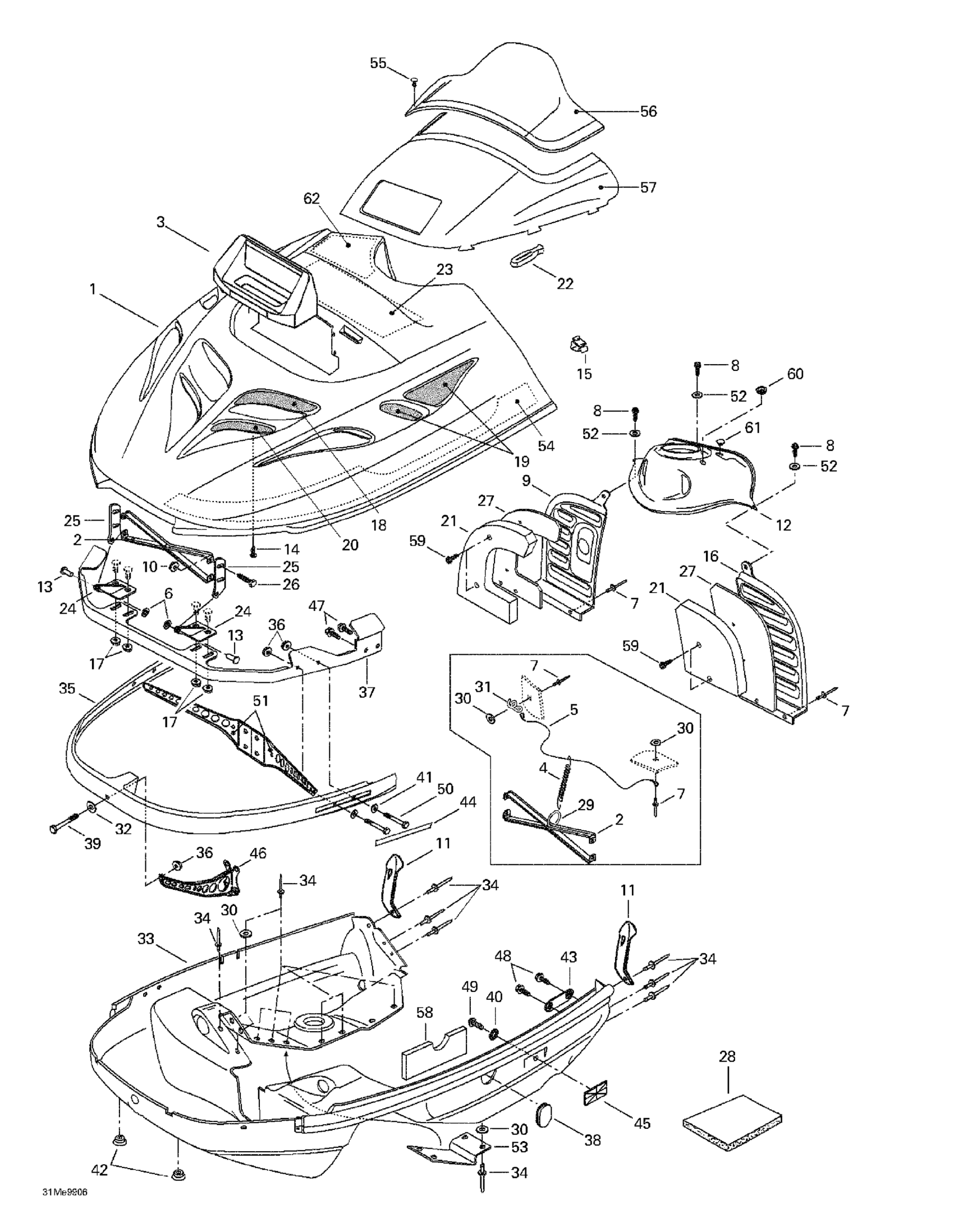

Ski-Doo Summit 500/X 670, 1999 Cab, Console Diagram

#

Description
Price

1

Sapphire Blue, Hood | Summit 500.

517302195

Unavailable

Hood (Yellow)

517302097

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

Sealing Foam | Skandic 600.

415044800

Unavailable

Sealing Foam

415077300

Unavailable

4

Spring

414763300

Unavailable

5

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

6

Push Nut

389804300

$0.43

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

8

Forming Screw M5 x 16

250000676

$0.83

9

RH Console

517302163

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

Unavailable

11

Hood Latch

570027100

Unavailable

12

Dash-Switch | Formula S.

517302160

Unavailable

Switch Dash | MX Z 670 HO.

517302161

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Edge Clip

517302785

Unavailable

16

LH Console

572103000

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

RH Upper Grill Ass'y

517298400

Unavailable

LH Upper Grill Ass'y

517298500

Unavailable

19

Side Grill (Black)

517280200

Unavailable

20

RH Lower Grill

517298600

Unavailable

LH Lower Grill

517298700

Unavailable

21

RH Console Foam

415100100

Unavailable

LH Console Foam

415100200

Unavailable

22

Windshield Latch

570023800

Unavailable

23

Center Foam

414985100

Unavailable

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

27

RH Console Plate

517297300

Unavailable

LH Console Plate

517297400

Unavailable

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

Unavailable

31

Bracket

517262800

Unavailable

32

Flat Washer

224061201

Unavailable

33

Bottom Pan (Black) | Summit 500.

572076215

Unavailable

Bottom Pan (Black) | Summit X670.

572076217

Unavailable

34

Pop Rivet 3/16"

390906800

Unavailable

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

Hinge Bracket

517296600

Unavailable

38

BOTTOM PAN CAP (BLACK) - Call your local BRP dealership | Formula Deluxe 380 F.

570053702

Unavailable

39

Hex. Screw M6 X 40

207064044

$1.48

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.44

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

Yellow, LH/RH Rear Reflector Kit

861805523

$25.35

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Front Support

517294500

Unavailable

47

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

48

Hex. Flange Screw M6 X 16

210261650

$1.22

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Hex. Screw M6 X 30

207063044

Unavailable

51

LH Support

517295000

Unavailable

RH Support

517295100

Unavailable

52

Washer | DS 650 X

391301600

Unavailable

53

Deflector | Summit 500.

517296700

Unavailable

Deflector | Summit X670.

517301400

Unavailable

54

LH Lower Foam

414883500

Unavailable

RH Lower Foam

415048700

Unavailable

55

Dart

414939500

$0.86

56

Medium Windshield

415050500

Unavailable

57

Windshield Support

572101800

Unavailable

58

Foam # 6

414931600

Unavailable

59

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

60

Bumper Plug, Black

291000339

Unavailable

61

Cap | MX Z 670 HO.

572096200

Unavailable

62

Upper Foam

414975000

Unavailable
