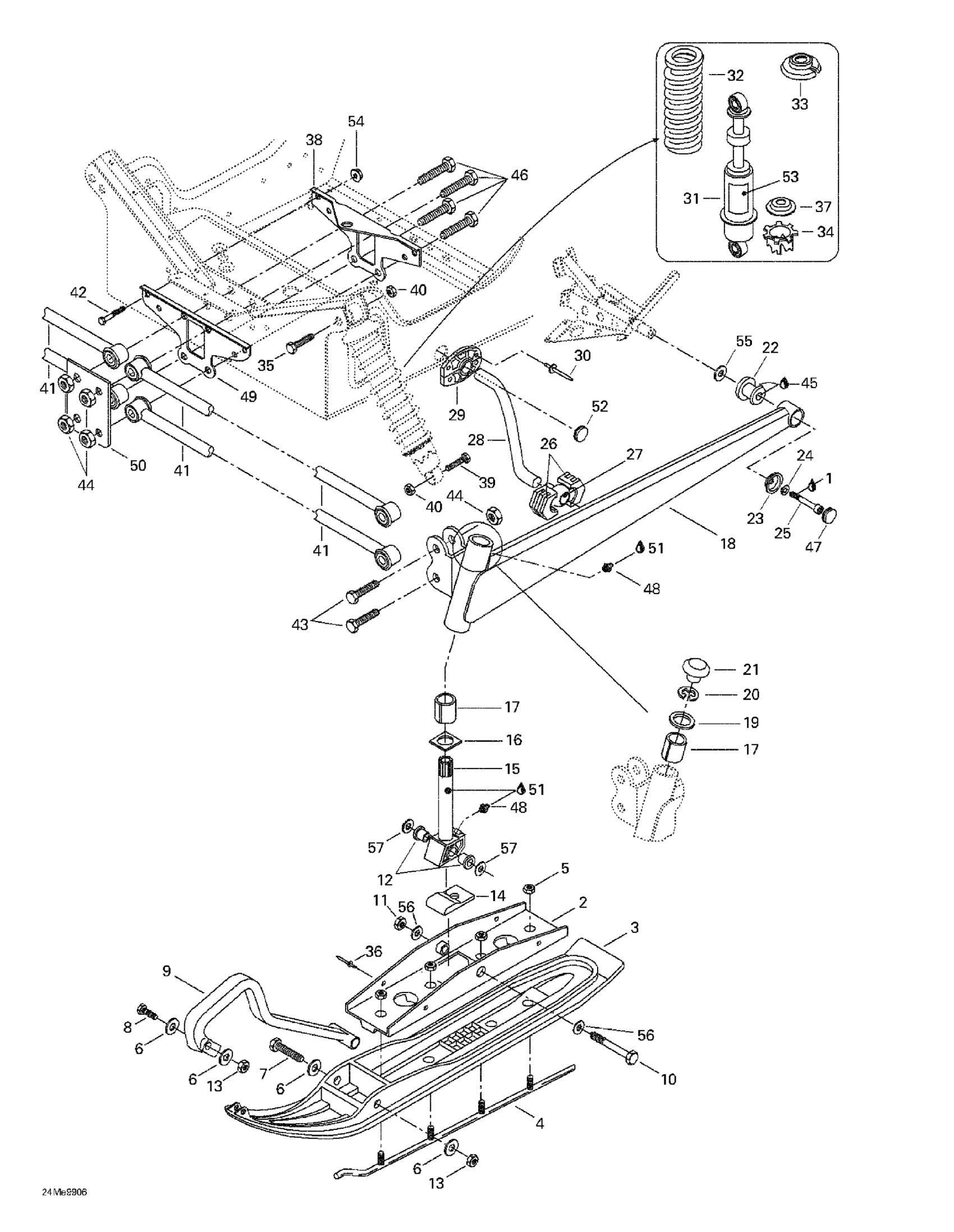

Ski-Doo Summit 500/X 670, 1999 Front Suspension And Ski Diagram

#

Description
Price

1

Loctite 243, 10 ml

293800060

$20.77

2

Bridge Ass'y

505070251

Unavailable

3

Ski-Liner Flex

505070189

Unavailable

Ski-Liner Flex

505070189

Unavailable

4

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

5

Elastic Locking Nut M10 X 1.5

233601416

$1.68

6

Flat Washer 8 mm

234081410

Unavailable

7

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

8

Hex. Screw M8 X 50

207085044

Unavailable

9

Black, Handle

505070963

Unavailable

10

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

11

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

12

CUSHION - Call your local BRP dealership

414530600

Unavailable

13

Hex. Elastic Stop Nut M8

232581414

Unavailable

14

Ski Stopper

570053300

Unavailable

15

Ski Leg | Includes 15 - 16.

506144500

Unavailable

16

Wear Plate

506081200

Unavailable

17

Cushion

572069900

Unavailable

18

LH Swing Arm | Formula Deluxe 380.

506144200

Unavailable

LH Swing Arm | Summit X670.

505070198

Unavailable

RH Swing Arm | Formula Deluxe 380.

506144100

Unavailable

RH Swing Arm | Summit X670.

505070197

Unavailable

19

Thrust Washer

506080900

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$8.97

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

Cup | Package Hunter

705007171

Unavailable

24

Lock Washer 8 mm

234181401

Unavailable

25

Socket Head Screw M8 X 25

205082544

Unavailable

26

Block Sliding

572069800

Unavailable

27

Ball Joint

506127300

Unavailable

28

Stabilizator | Summit X670.

506127400

Unavailable

29

Half-Bushing | Formula Deluxe 500.

572077600

Unavailable

30

Pop Rivet 3/16"

390402300

Unavailable

31

Shock

414969900

Unavailable

32

Spring (Yellow)

415083700

Unavailable

33

Spring Stopper

706200881

$10.30

34

Cam

503169000

Unavailable

35

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

36

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

37

GUIDE_SPRING - Call your local BRP dealership

503165100

$1.91

38

Rear Link Plate

517254900

Unavailable

39

Hex. Screw M10 X 55

207005544

$1.85

40

Elastic Locking Nut M10 X 1.5

233601416

$1.68

41

Arm Ass'y

580649500

Unavailable

42

Hex. Screw M6 X 55

207065544

Unavailable

43

Hex. Screw M12 x 50

222025075

Unavailable

44

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

45

Grease, Super Lube

293550030

Unavailable

46

Hex. Screw M12 x 100

732601113

Unavailable

47

CAP - Call your local BRP dealership

572045900

Unavailable

48

Grease Fitting

408200700

Unavailable

49

Front Link Plate

517254800

Unavailable

50

Support

518306700

Unavailable

51

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

52

Black, Nylon Cap

414916600

$4.32

53

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

55

WASHER - Call your local BRP dealership

503146700

$4.42

56

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

57

Washer

732900048

Unavailable
