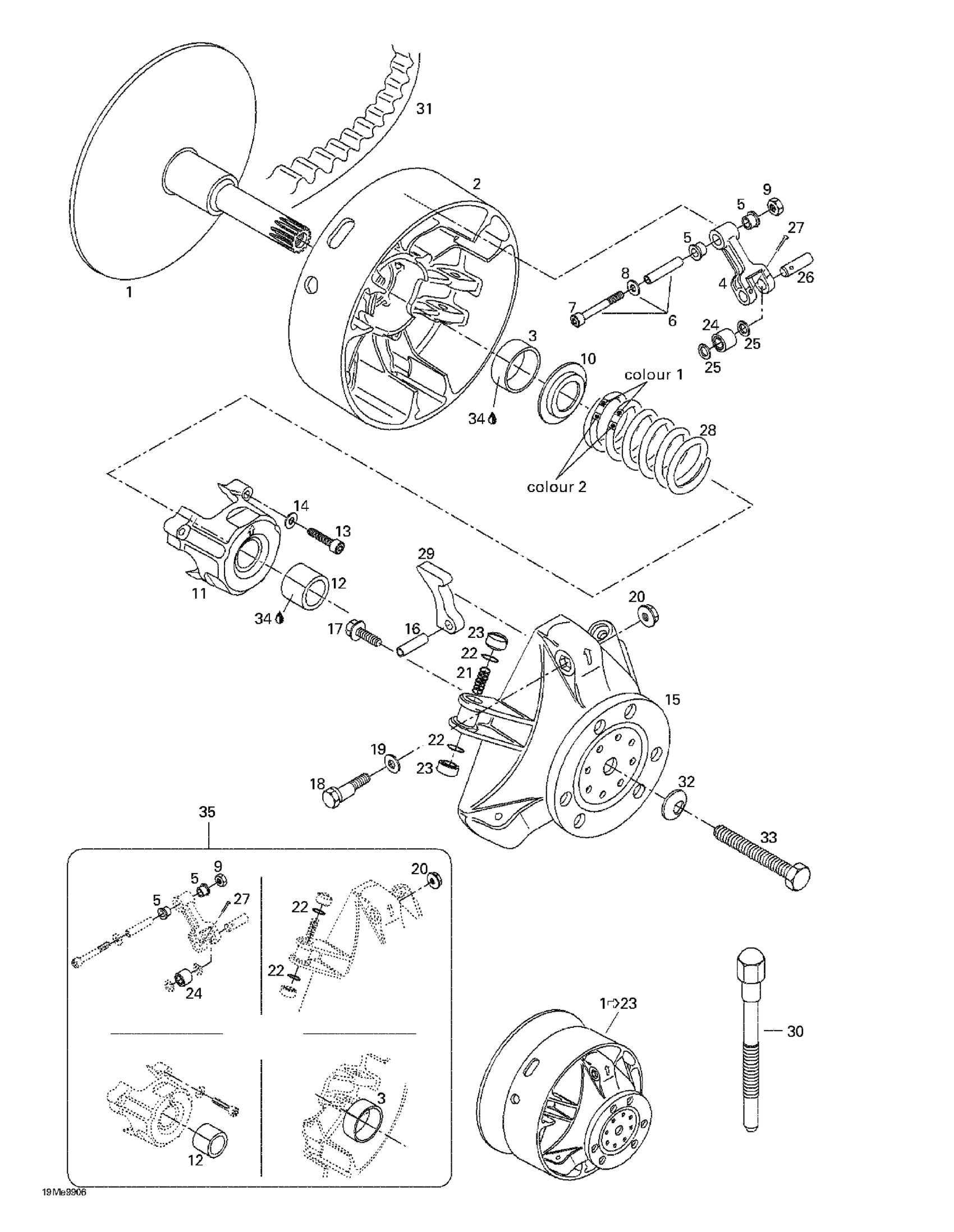

Ski-Doo Summit 500/X 670, 1999 Drive Pulley Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 23. Formula Deluxe 500 LC. Formula Deluxe 670.
417222154
Unavailable
1
Fixed Flange
417222411
Unavailable
2
OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.
417222049
Unavailable
3
Bushing
417004201
Unavailable
4
LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.
417003801
Unavailable
5
Bushing
417004305
Unavailable
6
SCREW ASSY - Call your local BRP dealership | Includes 12 to 13
417004800
Unavailable
8
Flat Washer 6 mm
234061410
Unavailable
9
Elastic Stop Nut M6
232561414
Unavailable
10
Spring Seat
417222044
Unavailable
11
Spring Cover Ass'y | Includes 9 - 10.
417222157
Unavailable
12
Bushing
417004501
Unavailable
13
Allen Screw M6 x 40
222964066
Unavailable
14
WASHER - Call your local BRP dealership
420245370
Unavailable
15
Gouvernor Cup Ass'y
417004700
Unavailable
16
Pin M8 X 24
732804009
Unavailable
17
HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership
210361890
Unavailable
18
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
20
Hex. Flange Nut M6
233061414
Unavailable
21
Spring
417005700
Unavailable
26
Pin
417004309
Unavailable
28
SPRING (GREEN/BLUE) - Call your local BRP dealership
414768200
Unavailable
29
Ramp | Summit 500.
417222091
Unavailable
Ramp 287 | MX Z 440 F. MX Z 500 F.
417005287
Unavailable
30
Puller This part replaces 529022400.
529000064
Unavailable
31
Drive Belt
414860700
Unavailable
Drive Belt | Formula Deluxe 700.
417300067
Unavailable
32
Spring Washer 14 mm
250200006
Unavailable
35
Clutch Repair Kit
417006100
Unavailable
