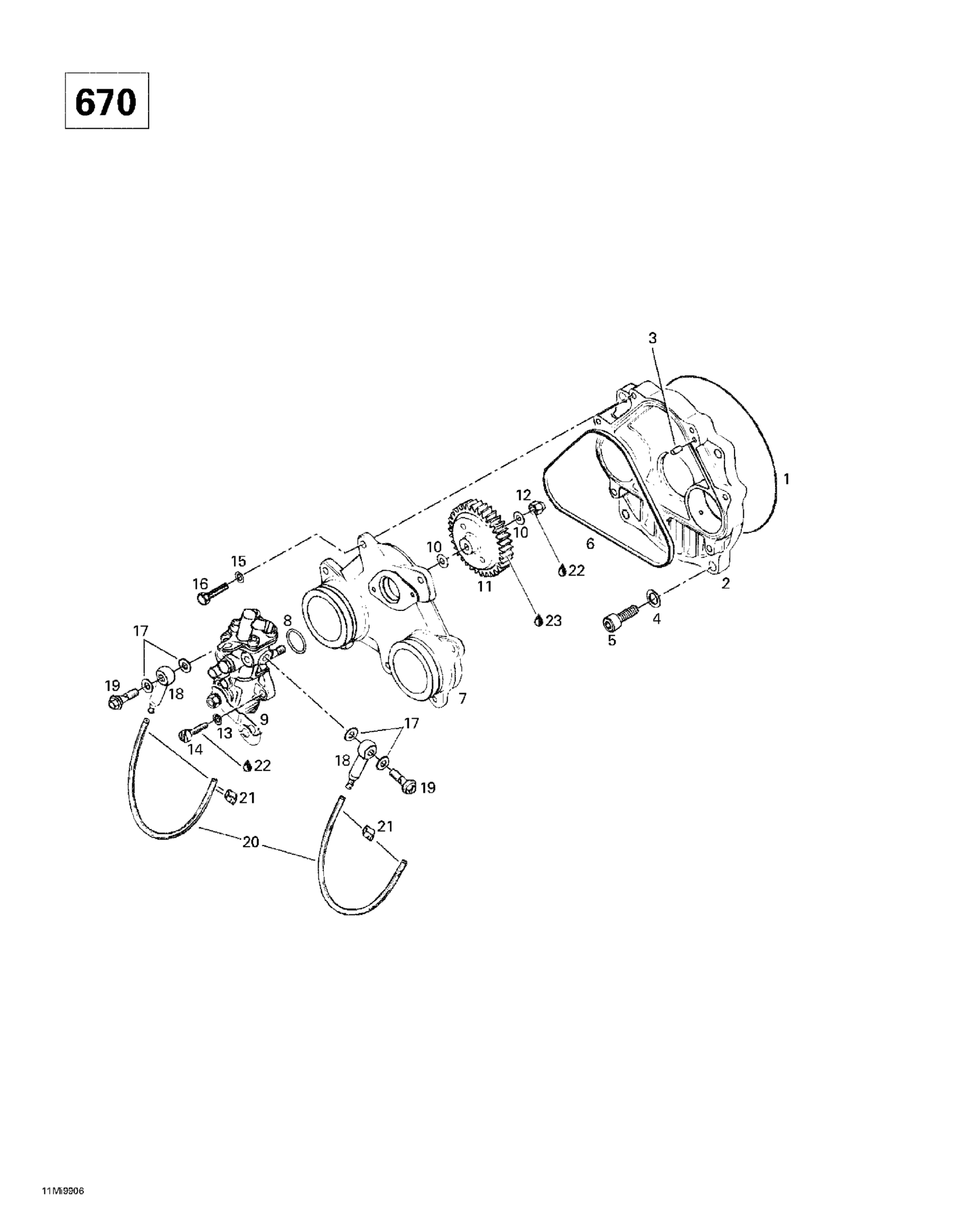

Ski-Doo Summit 500/X 670, 1999 Oil Injection System (670) Diagram
#
Description
Price
1
O-Ring
420831360
Unavailable
2
Rotary Valve Cover Assy | Includes 2 - 3. MX Z 670 HO.
420910314
Unavailable
3
Drive Pin 5 X 10
420929650
Unavailable
4
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
6
Rubber Ring | MX Z 670 HO.
420831700
Unavailable
7
Oil Pump Mounting Flange | MX Z 670 HO.
420910325
Unavailable
8
O-Ring
420230370
Unavailable
9
Oil Pump Ass'y | MX Z 670 HO.
420887348
Unavailable
10
FLAT WASHER - Call your local BRP dealership
420927945
Unavailable
11
Oil Pump Gear 44 Teeth | MX Z 670 HO.
420935940
Unavailable
12
Elastic Stop Nut M6
232561414
Unavailable
13
Lock Washer
420945750
Unavailable
14
Cylindrical Slotted Screw M5 x 16
420240761
Unavailable
15
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
17
Sealing Washer
404146600
Unavailable
18
Valve Ass’Y
420956010
Unavailable
19
Banjo Bolt M6 X 16
404146800
Unavailable
20
Oil Hose 1500Mm Long
219704404
Unavailable
21
Clamp
420853840
Unavailable
