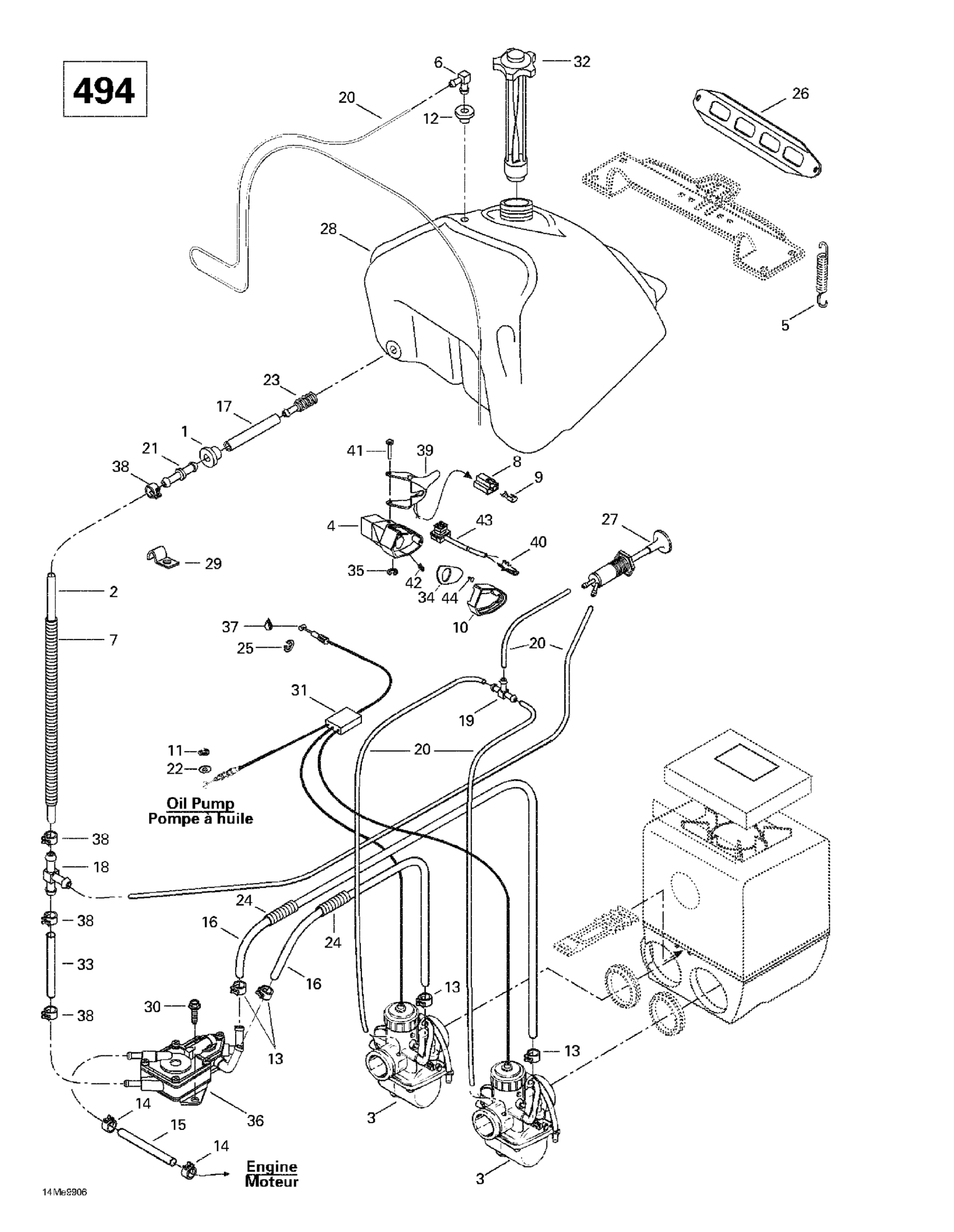

Ski-Doo Summit 500/X 670, 1999 Fuel System (494) Diagram

#

Description
Price

1

Grommet

570045500

$6.32

2

Polyurethane Hose 10000Mm Long

219704410

$46.12

3

Carburetor VM 38-414 (PTO) | Includes 1 - 32. Summit 500.

403138519

Unavailable

Carburetor VM 38-415 (MAG) | Summit 500.

403138520

Unavailable

4

Throttle Housing

512060603

$10.57

5

SPRING - Call your local BRP dealership

517182100

Unavailable

6

Male Connector

414814100

$2.18

7

Tubing 10 MM 1000MM Long

219704407

$2.20

8

Female Terminal Housing (3 circuits)

409008500

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

10

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

11

Circlip

414753500

$0.59

12

Grommet

709200285

$7.09

13

Spring Clamp

414420700

$0.68

14

Spring Clamp

414415200

$0.83

15

Hose

219704549

$47.66

16

Tube

415117800

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

T-fitting

414222500

$1.33

19

T-Fitting

414222400

$1.33

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

21

Male Connector

414518500

$3.50

22

Flat Washer 8 mm, Nylon

234081100

$1.00

23

Fuel Filter

414865700

$8.39

24

Tubing 10 MM 1000MM Long

219704407

$2.20

25

Circlip

414274500

$0.74

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$33.05

28

Fuel Tank

572108900

Unavailable

29

CLIP - Call your local BRP dealership

415018200

Unavailable

30

Hex. Screw M6 x 12

732601120

Unavailable

31

Throttle Cable and Housing (38 mm)

414968801

Unavailable

32

Fuel Tank Cap

572161200

$36.89

33

Polyurethane Hose 10000Mm Long

219704410

$46.12

34

Plate

512060390

$9.31

35

Circlip | Model-RS

414439000

$4.14

36

FUEL PUMP ASS'Y - Call your local BRP dealership

403801100

Unavailable

37

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

38

Spring Clamp

414554800

$0.83

39

Heat Throttle Handle Ass'y (38 mm) | MX Z 500.

572090300

Unavailable

40

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

41

Lever Pin

414438700

$11.14

42

Socket Set Screw M8 X 10

414440800

$4.00

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

44

Screw

414473200

Unavailable
