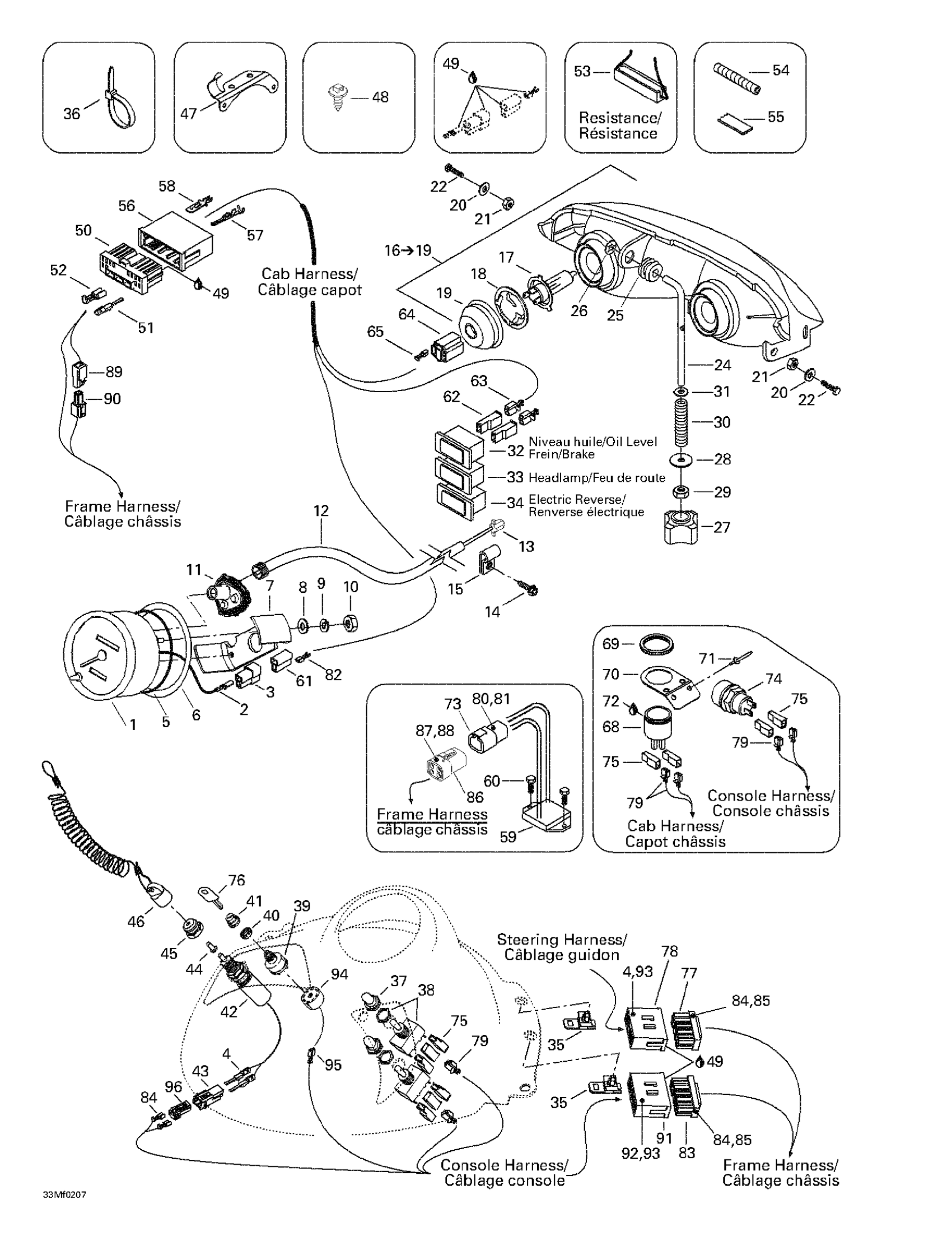

Ski-Doo Summit 500 F, 2002 Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

Male Terminal

515175232

$1.49

5

O-Ring

414807100

Unavailable

6

Washer

517258500

Unavailable

7

Case Holder

414806500

Unavailable

8

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

9

Lock Washer

414806700

Unavailable

10

Nut

414806900

Unavailable

11

Drive Angle

515175400

Unavailable

12

Speedometer Cable

415101500

Unavailable

13

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Open Clamp

414176000

$1.86

16

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

17

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

18

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

19

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

20

Flat Washer M5

234051410

Unavailable

21

NUT M5 - Call your local BRP dealership

250100018

Unavailable

22

Hex. Screw M5 X 35

207053544

Unavailable

23

Frame Harness (Not Shown)

515175622

Unavailable

24

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

25

Grommet - Call your local BRP dealership

415100800

Unavailable

26

Push Nut

732610072

Unavailable

27

Handle - Call your local BRP dealership

515175548

Unavailable

28

Washer

224060251

Unavailable

29

Elastic Stop Nut M6

232561414

Unavailable

30

SPRING - Call your local BRP dealership

415100600

Unavailable

31

Flat Washer 6 mm

234061410

Unavailable

32

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

33

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

34

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

$9.98

35

Housing Support

515175283

$8.43

36

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 173 mm

293750009

Unavailable

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

37

Switch Cover

515175281

$15.03

38

Switch (Heating Grip) | FREERIDE

410107300

$34.58

39

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

40

FACE NUT - Call your local BRP dealership

410112100

$14.29

41

Switch Boot

570013700

Unavailable

42

Brake Switch

515175653

$15.57

43

Male Terminal Housing, 2 Circuits

515175654

$7.48

44

Plunger Cap

570151100

$10.14

45

Switch Nut

515145900

$10.83

46

Cap Ass'y

515178283

$37.66

47

Cable Support

515175254

Unavailable

48

Mount Dart

293730040

$0.86

49

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

50

Female Terminal Housing, 13 Circuits

515175350

Unavailable

51

Female Terminal

515175231

Unavailable

52

Female Terminal

515175282

$6.43

53

Resistance

515175241

Unavailable

54

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

Tubing 10 MM 1000MM Long

219704407

Unavailable

Was 409901800 Tubing (13 mm)

219704400

Unavailable

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

55

Tape

293740005

Unavailable

56

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

57

Male Terminal

515175232

$1.49

58

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

59

VOLTAGE REGULATOR - Call your local BRP dealership | Includes 27 to 30

515175655

Unavailable

60

Hex. Flange Screw M6 X 16

210261650

$1.22

61

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

62

Female Terminal Housing, 1 Circuit

409010400

$7.48

63

Female Terminal

409010100

$5.46

64

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

65

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

66

Hood Harness (Not Shown)

515175636

Unavailable

67

Console Harness, Not Shown

515175623

Unavailable

68

HORN - Call your local BRP dealership

515176035

Unavailable

69

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

70

PLATE - Call your local BRP dealership

515175688

Unavailable

71

Pop Rivet 3/16"

390402200

$0.26

72

Silicone Sealant 51388, 300 ml

296000309

Unavailable

73

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

74

Push Button

415130372

Unavailable

75

Female Terminal Housing, 1 Circuit

409010400

$7.48

76

Blank Key

415129350

Unavailable

77

Female Terminal Housing, 13 Circuits

515175350

Unavailable

78

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

79

Female Terminal

409010100

$5.46

80

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

81

Not Available As Spare Part - Friction Washer

Unavailable

82

Female Terminal

561503100

Unavailable

83

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

84

Female Terminal

515175231

Unavailable

85

Female Terminal

515175282

$6.43

86

Female Terminal Housing, 4 Circuits

278001473

Unavailable

87

Female Lock, 4 Circuits

278001474

Unavailable

88

Female Terminal

515175567

$6.03

89

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

90

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

91

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

92

Male Terminal

515175232

$1.49

93

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

94

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

95

Female Terminal

561503100

Unavailable

96

Female Housing, 2 Circuits

515175658

Unavailable
